Feature
- Wholesale MPO fiber cable at unbeatable price
- MTP®-12 also supporting MTP®-8 fiber systems
- it is also ideal for 8-fiber parallel single mode optical transceivers applications, such as 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4 and 400G QSFP-DD DR4/XDR4 optics direct connection
- MTP® trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles
Core Specifications

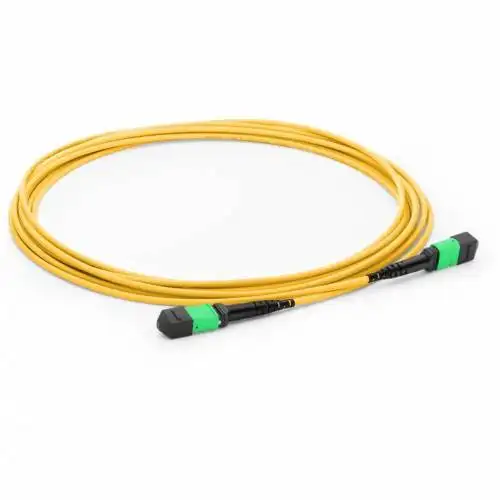

MTP® Female to MTP® Female OS2 9/125 Single Mode Trunk Cable
MTP® trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. Due to the MTP®-12 also supporting MTP®-8 fiber systems, it is also ideal for 8-fiber parallel single mode optical transceivers applications, such as 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4 and 400G QSFP-DD DR4/XDR4 optics direct connection.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

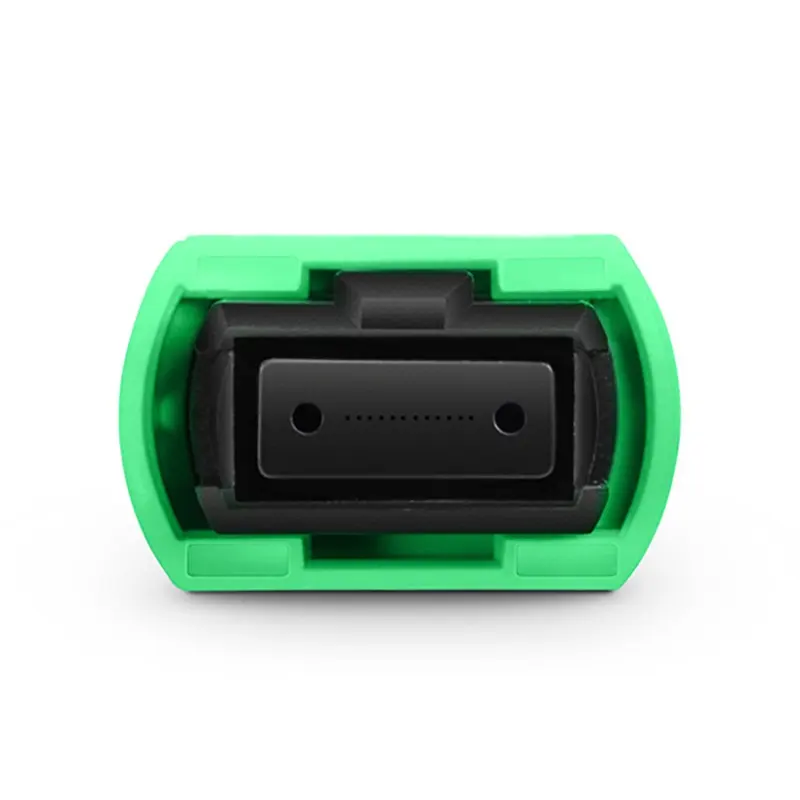

Connector A | US Conec MTP® Female (Pinless) | Connector B | US Conec MTP® Female (Pinless) |
Fiber Mode | OS2 9/125μm SM | Wavelength | 1310/1550nm |
Glass Fiber | Corning SMF-28® Ultra | Fiber Grade | G.657.A1 |
Polish Type | APC to APC | Minimum Bend Radius | 10mm |
Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥60dB |
Attenuation at 1310nm | ≤0.32dB/km | Attenuation at 1550nm | ≤0.18dB/km |
Jacket OD | 3.0mm | Cable Jacket | Plenum (OFNP) |
Installation Tensile Load | 66N | Tensile Strength (Long/Short Term) | 80/240N |
Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -40 to 85°C (-40 to 185℉) |
পিডিএফ
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
আউটডোর/ইনডোর ফাইবার অপটিক কেবল, আমাদের বার্ষিক আউটপুট 8,000,000 KM;
FTTH/FTTX/FTTA কেবল, এটি প্রতি বছর 6,000,000 KM;
প্যাচ কর্ড/পিগটেল, এটি প্রতি বছর 12,400,000 পিস।
টি/টি, এল/সি, ওয়েস্টার্ন ইউনিয়ন এবং আলি পে।
হ্যাঁ। আমরা OEM এবং ODM পরিষেবা সরবরাহ করি। আপনি আমাদের আপনার অঙ্কন পাঠাতে পারেন বা আমরা আমাদের পেশাদার কাস্টমাইজড দল দ্বারা নকশা তৈরি করি।
