Fitur
- we can custom fiber Patch cord cable structure, fiber count, connector types, length, package for you.
- price unbeatable
- Shortest delivery time
- Door to door delivery to all over the world
- LC, SC, ST, FC, LSH,MTRJ, MU connectors are available.
- OS1, OS2, OM1, OM2, OM3, OM4,OM5 are available.
Spesifikasi Inti

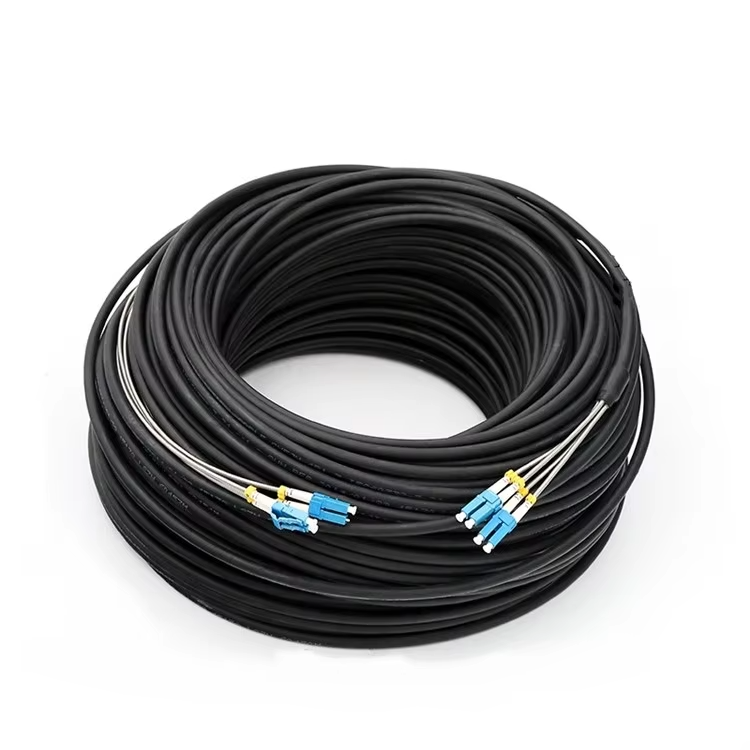

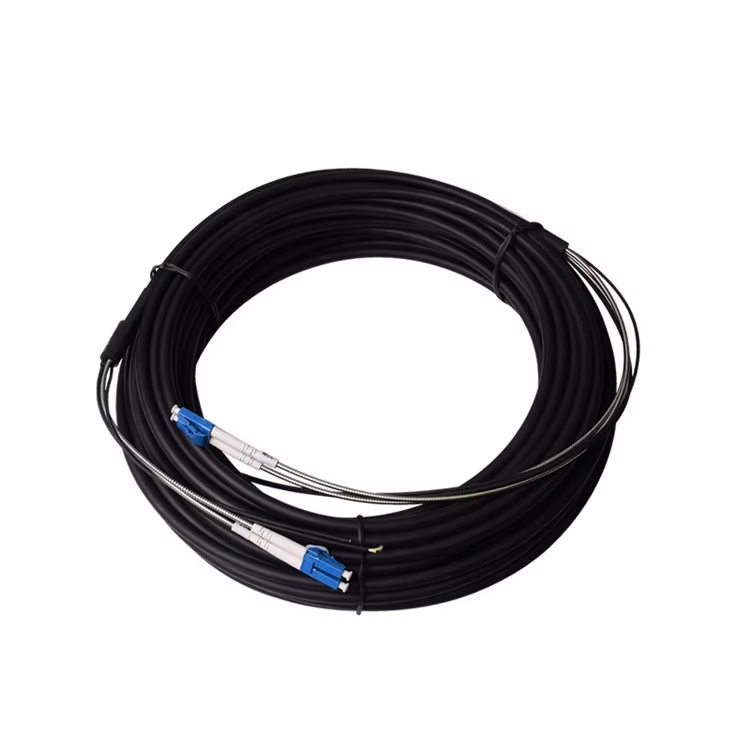

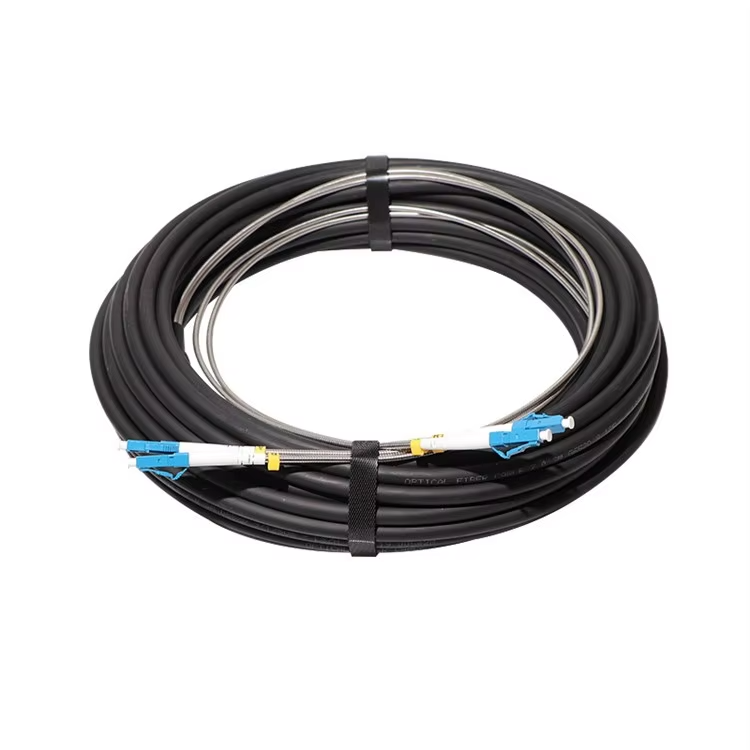

| Product | CPRI armored fiber patch cable |
| Pre-Terminated Connector | LC, SC, ST or FC |
| Polished | UPC or APC |
| Fiber Count | 2fiber ,or other for options |
| Modus Serat | Single Mode or multi mode for option |
| Jacket Color | Black |
| Insertion Loss | < 0.3 DB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Jacket Materials | PVC LSZH |
| Diameter | 7.0±0.2mm |
| Product Keywords | Armoured branch outdoor fiber patch cord,550m Armoured Branch Outdoor Fiber Patch Cord |
Product description:
The CPRI patch cords are standard size for Duplex LC Connectors, widely used in FTTA, Base station, and the outdoor waterproof condition.FTTA (Fiber to the Antenna) DLC (Dual LC Connector) SM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application.
Performance:
Item | Data |
Insertion Loss | ≤0.3dB |
Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
Mechanical life | 500cycles |
Working temperature | -20°C~+70°C |
Storage temperature | -20°C~+70°C |
Tensile Data | Tensile between junction and fiber cable≥100N |
Cable Structure:
Ketik1: 2×Unit Cable(2.0mm)+2×Stuffing Cable+Jacket OD=7.0mm
Cable Count | OD (mm) | Weight | Tensile strength | General attenuation | Minimal Bending radius | Storage temperature | ||
2 | 7.0±0.2 | 45kg | Short term | Long term | Singlemode | Multimode | 20D | -20℃～+70℃ |
900N | 450N | 1310nm ≤0.4dB/km | 850nm ≤3.0dB/km | |||||
Features:
The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc.
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
500cycles Mechanical life
Widely used in FTTA & FTTH
Used for 4G 5G base station
BBU, RRU, RRH, LTE.
Aplikasi:
1.Multi-purpose Outdoor.
2.For connection between distribution box and RRH(RRU).
3.Deployment in Remote Radio Head cell tower applications.
Pertanyaan Umum
Ya. Kami adalah produsen nyata dengan lebih dari 500 staf.
Sejak tahun 2001.
Ya, pesanan kecil tersedia. Kami mendukung proyek baru pelanggan kami karena kami tahu bisnis selalu dimulai dari pesanan kecil.
10 tahun untuk kabel Lan, 25 tahun untuk kabel serat optik
ISO9001, SGS, UL, CPR, CE, RoHs
Biasanya dalam 10-15 hari kerja
Kabel Lan, keluaran tahunan kami adalah 500000*305m
Kabel Serat Optik Luar Ruangan/Dalam Ruangan, hasil tahunan kami adalah 8.000.000 KM;
Kabel FTTH/FTTX/FTTA, 6.000.000 KM per tahun;
Patch Cord/Pigtails, 12.400.000 Potongan per tahun.
T/T, L/C, Western Union dan Ali membayar.
Ya. Kami menyediakan layanan OEM & ODM. Anda dapat mengirimkan gambar Anda kepada kami atau kami membuat desain oleh tim profesional kami yang disesuaikan.
