2-288 コア地下装甲埋設、抗齧歯動物、二重シーター屋外光ファイバーケーブルメーカー GYTY53

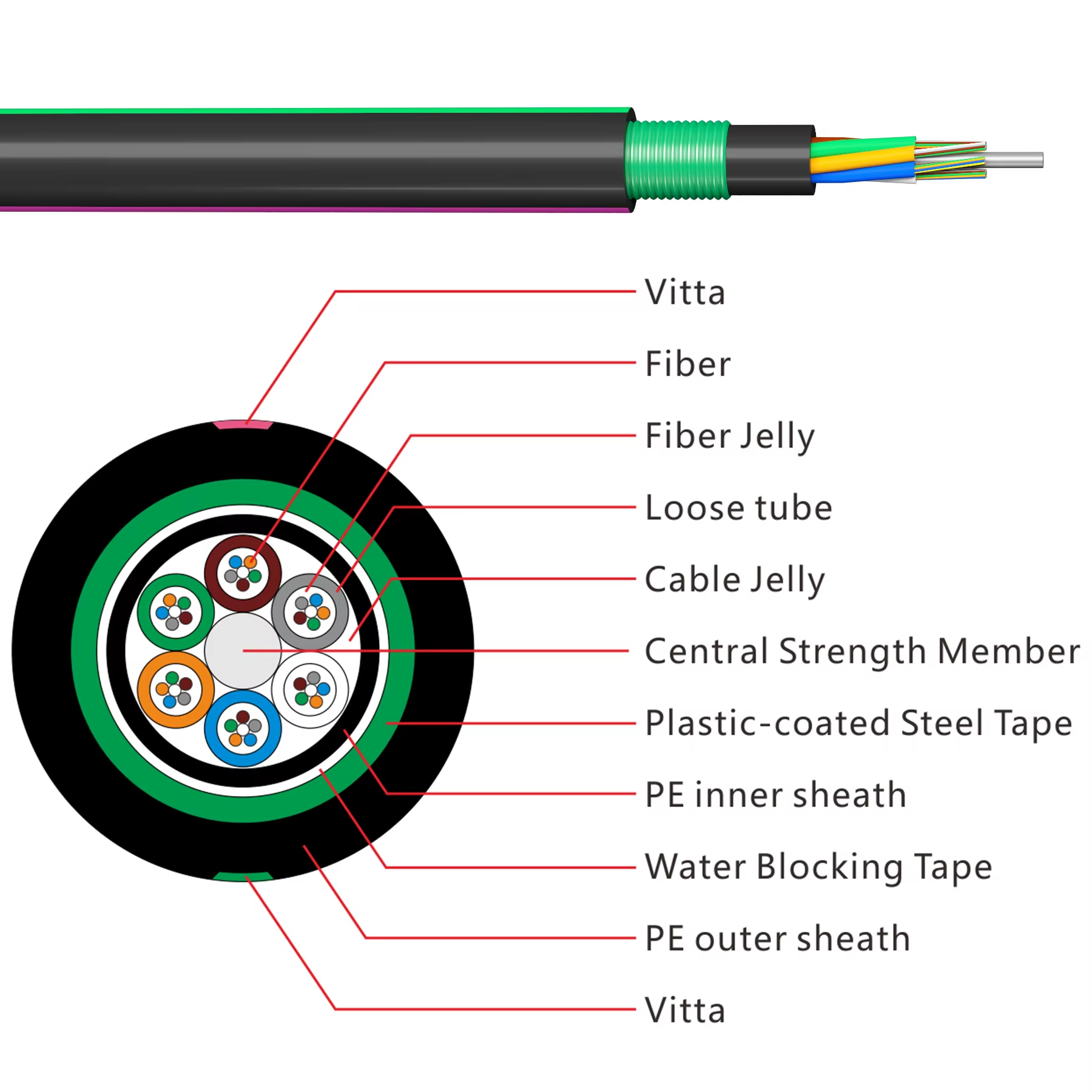

The 250μm fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire,sometimes sheathed with polyethylene(PE)for cable with high fiber count,locates in the center of core as a metallic strength member.Tubes and possible fillers are stranded around the strength member into a compact and circular cable core.The cable core is filled with the filling compound to protect it from water ingress,over which a thin PE inner sheath is applied.After the plastic coated steel tape is longitudinally applied over the inner sheath,the cable is sheathed by PE material.

Product Attributes:

Model:

GYTY53

特徴

we can custom fiber cable structure, fiber count, length, package for you.
price unbeatable
Shortest delivery time, one day produce 2000KM
Using "SZ" bidirectional layer twisting technology
The steel (aluminum) belt has reliable bonding, high strength and no cracking when twisted
Fiber excess length control is stable
After the cable is formed, the additional attenuation of the fiber is almost zero, and the dispersion value does not change
Suitable for laying methods such as overhead, pipeline, direct buried
Double-sided plastic-coated aluminum tape-polyethylene bonded sheath, excellent moisture resistance
Double sheath and double armor structure, excellent compression resistance
Can effectively prevent damage to rodents

コア仕様

	G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm	–	–	≤3.5dB/km	≤3.5dB/km
	@1300nm	–	–	≤1.5dB/km	≤1.5dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km	–	–
	@1550nm	≤0.22dB/km	≤0.23dB/km	–	–
Bandwidth （Class A）	@850		–	≥500MHZ·km	≥500MHZ·km
Bandwidth （Class A）	@1300		–	≥1000MHZ·km	≥600MHZ·km
Numerical aperture		–	–	0.200±0.015NA	0.275±0.015NA
Cable Cutoff Wavelength		≤1260nm	≤1480nm	–

Fiber Count (F)	Cable Diameter (mm)	Cable Weight (kgs)	Tensile Strength (N)		Crush Strength (N)		Min. Bending Radius		Temperature Range (℃)
Fiber Count (F)	Cable Diameter (mm)	Cable Weight (kgs)	Long term	Short Term	Long term	Short Term	Long term	Short Term	Temperature Range (℃)
2~36	13.8	200	1000	3000	1000	3000	10D	20D	-40~+60
38~72	15.2	240	1000	3000	1000	3000	10D	20D	-40~+60
74~96	16.7	278	1000	3000	1000	3000	10D	20D	-40~+60
98~120	18.3	323	1000	3000	1000	3000	10D	20D	-40~+60
120~144	19.8	368	1000	3000	1000	3000	10D	20D	-40~+60

High quality,long distance transmission fiber Steel Tape Armored,and Water-Resistant Brand NEW PE,or HDPE cable sheath
Standard fiber length 24km/roll and 48km/roll.
High quality PE/HDPE material cable sheath, very smooth surface, anti-UV, flame-Resistant
Standard production Line, strict SOP production Procedure
Attenunation test for each fiber by OTDR after production, and QC for every detail
2km, 3km or 4km per durm Strong wood drum sealed with wood bars
Double steel tapes for better protection
Double or Triple layer loading in the containers Save space and save shipping cost
Wood brick under the drums to make surethe drums can not be rolled or moved in the containers
