Feature
- we can custom fiber Patch cord cable structure, fiber count, connector types, length, package for you.
- price unbeatable
- Shortest delivery time
- Door to door delivery to all over the world
- LC, SC, ST, FC, LSH,MTRJ, MU connectors are available.
- OS1, OS2, OM1, OM2, OM3, OM4,OM5 are available.
Core Specifications
Product details
| Poduct Name | Fiber Flex boot Patch Cable |
| Color | Yellow |
| Fiber Type | 9/125µm Singlemode OS2 |
| Connector Type | LC to LC |
| Cable Length | 1m,2m,3m or Customize |
| Jacket Material | PVC or LSZH |
| Cable Diameter | 2.0 mm,3.0mm |
| Fiber connector boot | Flex Angle |
| Core | Duplex |
Description:

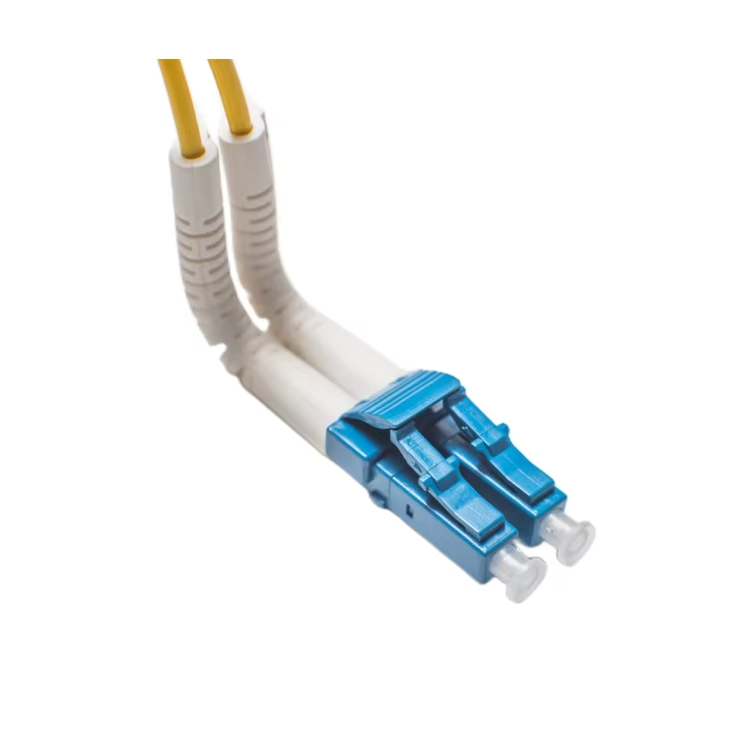

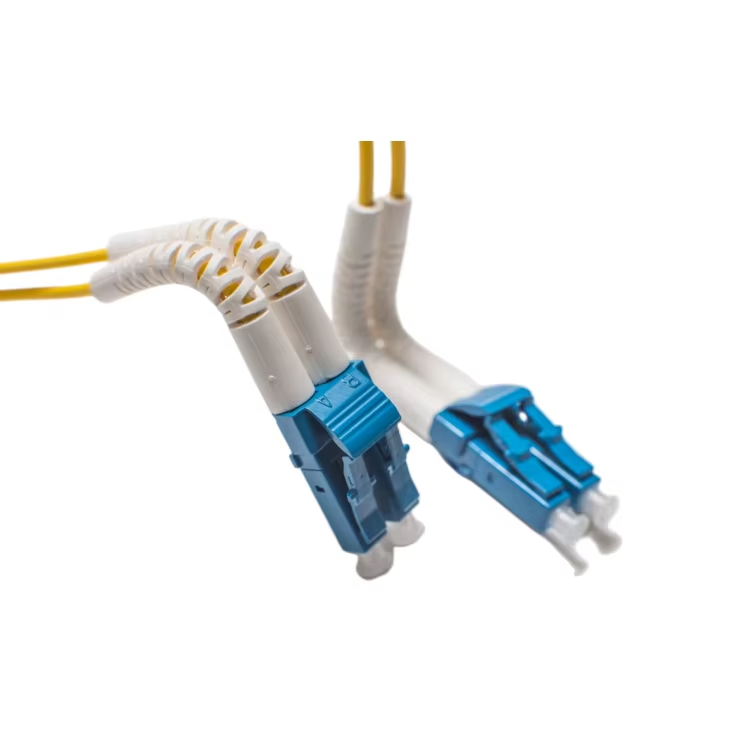

Single Mode fibre patch cord with LC connectors and flexible boot allows for bending up to 90 degrees without damaging the sensitive fibre inside. Best suited for use as uplink cables, cross connections, and desktop applications.At any time, installers can easily bend or reshape the SC flex boots into any desirable direction or angle. Connector position is maintained for optimal network performance and can be straighten prior to connector disconnect.
Features:
- LC to LC w/PC/APC Polish
- Singlemode OS1 9/125
- Bend Insensitive Fiber (BIF)
- OFNR Riser Rated Jacket
- Flex Boots Accomodate Tight Spaces
- The boot is molded over a single stainless-steel wire and can be easily positioned by hand
- Low insertion loss, high return loss
アプリケーション
Telecommunication
Computer networks
CATV networks
Active device termination
Instrumentation
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
