2-24 core direct burial, duct, hanging All Dielectric Non Metallic anti-rodent FRP Yarn Armored Fiber Optic Cable

2-384 core direct burial, duct, hanging All Dielectric Non Metallic anti-rodent FRP Yarn Armored Fiber Optic Cable GYFTY83

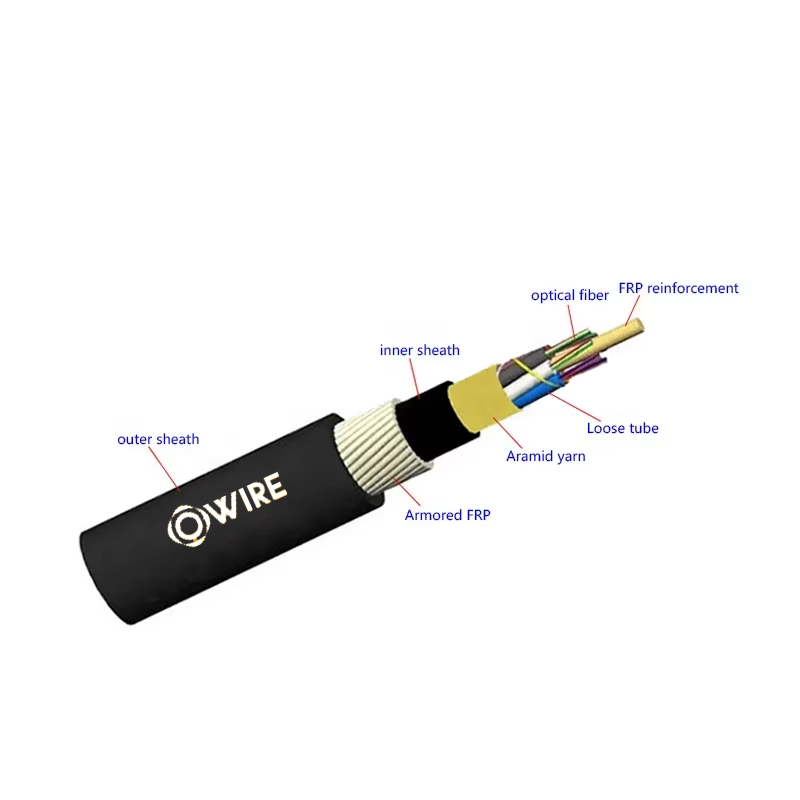

The 250μm fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A Fiber Reinforced Plastic (FRP)locates in the center of core as a non-metallic strength member.The tubes and possible fillers are stranded around the strength member into a compact and circular core.After the cable core is filled with the filling compound to protect it from water ingress,the cable is sheathed by PE material as inner sheath.After wrapping non-metallic rods(usually FRP),Finally,the cable is sheathed by PE sheath as outer sheath.
Atribut Produk:
Model:
  • GYFTY83

Ciri

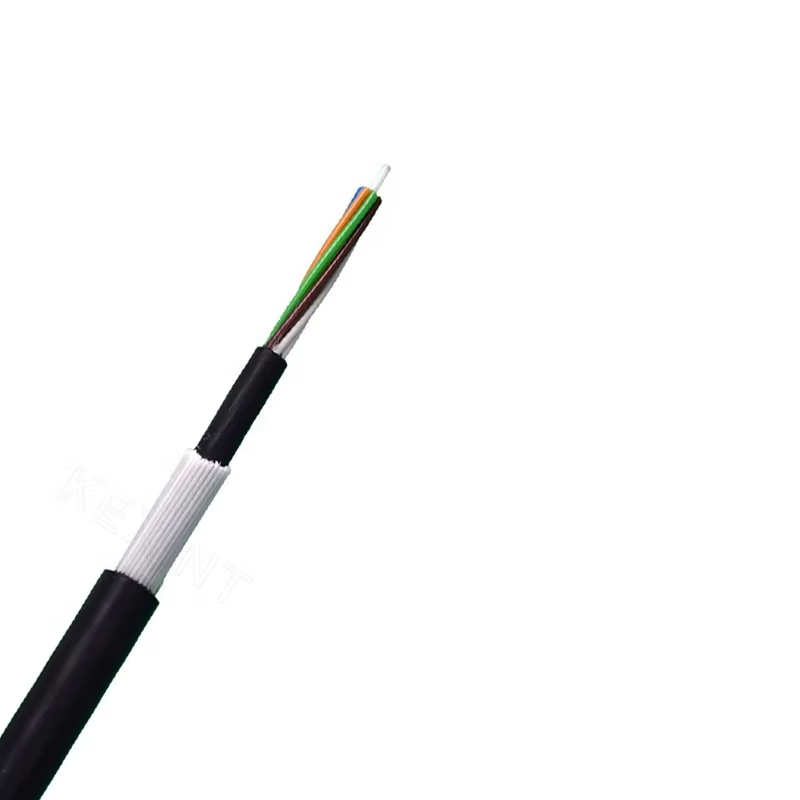

2-24 core direct burial, duct, hanging All Dielectric Non Metallic aerial / duct anti-rodent FRP Yarn Fiber Optic Cable

Spesifikasi Teras

GYFTY83 fiber optic cable is designed by physical and chemical anti-rodent methods. The optical fiber is installed in the loose tube and twisted around the central strength member. The gap of the cable core is filled with water-blocking ointment. Combine the aramid yarn for reinforcement, finally add PE outer sheath, extrude PE sheath inside, and use flat FRP for armor, and finally extrude PE outer sheath
GYFTY83 optical cable is a full-dielectric non-metallic structure, using high-strength glass fiber reinforced plastics to form an extremely effective anti-rodent and anti-squirrel protective layer, and through structural optimization, the miniaturization of the optical fiber cable core and the heavy-duty anti-rodent layer are achieved, effectively ensuring Anti-rodent, anti-squirrel performance.

Application: 1. The optical cable is suitable for direct burial laying 2. Non-self-supporting overhead, pipeline

ciri-ciri: 1. Precise fiber excess length control ensures that the cable has excellent tensile and temperature performance 2. The loose tube material has good hydrolysis resistance, and the tube is filled with ointment to protect the optical fiber 3. The sheath material has good anti-solar radiation performance 4. The double-layer sheath makes the cable have excellent compression resistance 5. All-dielectric optical cable, especially suitable for areas around electric fields or lightning-prone areas
Structure
Unit
Parameter
Kiraan serat
fibers
2~384
Loose tube Diameter
mm
Ф1.8~2.0
Cores of per tube
(no more than)
—
6
Central strength member diameter(FRP)
mm
2.0
Element
—
5
FRP

1.6*19
Diameter kabel
mm
15.7±0.5
Berat badan
Kg/km
249
wooden drum 2km
mm
1300*760*500(D*d*L)
Kekuatan tegangan
Jangka panjang
N
4500

Jangka pendek
N
8800
Crush Resistance
Jangka panjang
N
2200

Jangka pendek
N
3000
Bending Radius
Dynamic
mm
≥25*OD

Static
mm
≥12.5*OD
Operating Temperature
℃
-40 — +60

Soalan Lazim

ya. Kami adalah pengeluar sebenar dengan lebih daripada 500 kakitangan.

Ya, pesanan kecil tersedia. Kami menyokong projek baharu pelanggan kami kerana kami tahu perniagaan sentiasa dari pesanan kecil.

10 tahun untuk kabel Lan, 25 tahun untuk kabel gentian optik

ISO9001, SGS, UL, CPR, CE, RoHs

Biasanya dalam masa 10-15 hari bekerja

Kabel Lan, keluaran tahunan kami ialah 500000 * 305m
Kabel Gentian Optik Luar/Dalam, keluaran tahunan kami ialah 8,000,000 KM;
Kabel FTTH/FTTX/FTTA, ia adalah 6,000,000 KM setahun;
Patch Cord/Pigtails, ia adalah 12,400,000 Pieces setahun.

T/T, L/C, Western Union dan Ali membayar.

ya. Kami membekalkan perkhidmatan OEM & ODM. Anda boleh menghantar lukisan anda kepada kami atau kami membuat reka bentuk oleh pasukan tersuai profesional kami.
