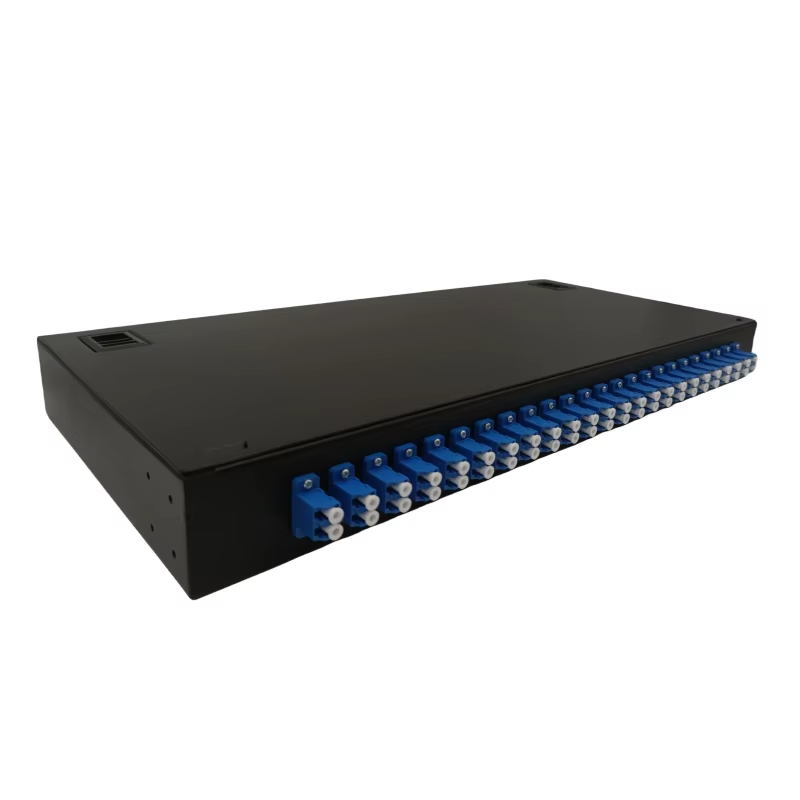

FTTH 48core 1U 19inch odf 48 port rack mount fiber patch panel

FTTH 48core 1U 19inch odf 48 port rack mount 2 Splice Cassettes fiber patch panel

We are a FTTH 48core 1U 19inch odf 48 port rack mount 2 Splice Cassettes fiber patch panel Manufacturer. We supply fiber optic panels in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.

Feature

Core Specifications

An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fiber optic connections from damage.

Rack mount ODF is usually modularity in design with firm structure. It can be installed on the rack with more flexibility according to the fiber optic cable counts and specifications. This kind of optical distribution system is more convenient and can provide more possibilities to the future variations. Most of the rack mount ODF is 19”, which ensures that they can be perfectly installed on to the commonly used standard transmission rack.

Feature

Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
Standard size, light weight and reasonable structure
Slide out drawer for easy cable management
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
With metal front cover
1 pcs splice trays (each 24 fibers)
Max. capacity 48 fibers
2 fiber cable entry ports at rear side
Black color
Splice tray inside changeable

PDF

This is the heading

FAQ

1.Are you the real manufacturer?

Yes. We are the real manufacturer with more than 500 staff.

2.How many years have you been in the field of fiber optics ?

Since 2001.

3.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

10 years for Lan cable , 25 years for fiber optic cable

5.Which kind of certification you have ?

ISO9001, SGS, UL, CPR, CE, RoHs

6.What is your delivery time?

Usually within 10-15 working days

7.What about your annual production capacity?

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8.What is your payment way?

T/T, L/C, Western Union and Ali pay.

9.Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center.

Owire GYTC8A Figure-8 Cable with Aluminum Tape

GYTC8A Figure-8 Cable with Aluminum Tape In the GYTC8A cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.

OW-F003 96|144 Core Fiber Optic Closure(3 in 3 out)

optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. They are applicable to situations such as overhead, man-well of pipeline, embedded situation etc. Comparing with terminal box,the closure requires much stricter requirement of seal.
