Feature
- Wholesale MPO fiber cable at unbeatable price
- The MTP® Harnesses allow for the seamless migration to higher data rates for multimode systems in the data center when used in conjunction with our trunks.
- used for patching within a cabinet
- MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Core Specifications

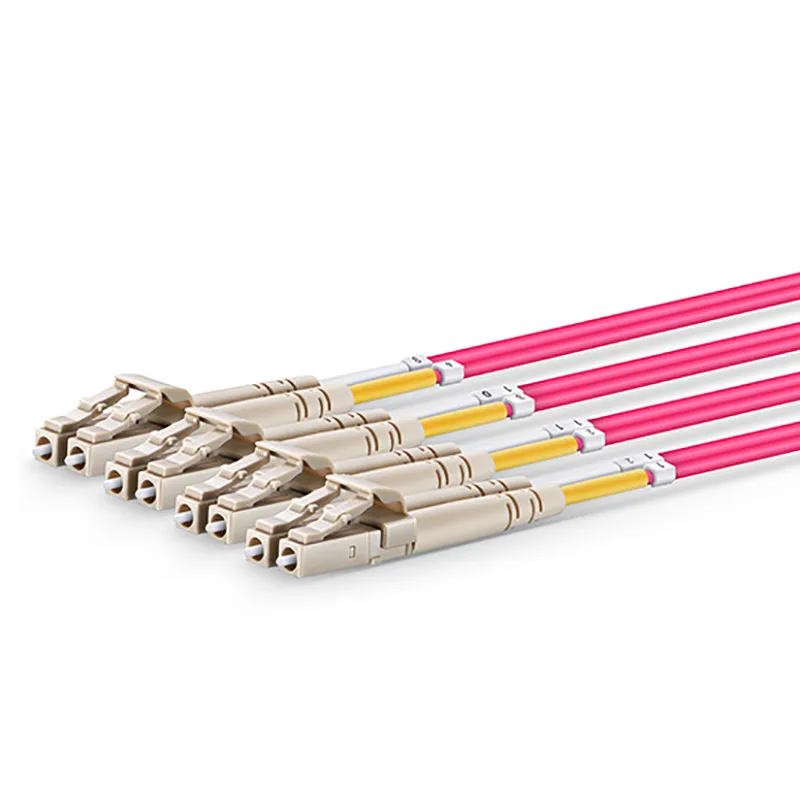

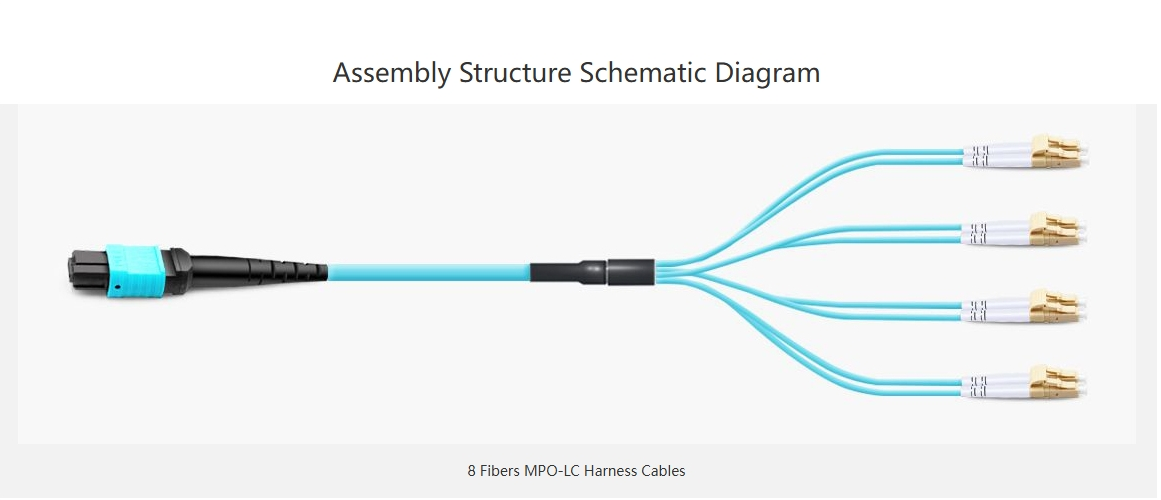

MPO MTP®-8 F to LC Harness, 8F, OM4, OFNP OFNR Type B
The MTP® Harnesses allow for the seamless migration to higher data rates for multimode systems in the data center when used in conjunction with our trunks. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
MTP®-8 is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics connection and high-density data center applications
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
| Connector A | US Conec MTP® Female (Pinless) | Connector B | LC UPC Duplex |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve® | RoHS Compliancy Status | Compliant |
| MTP Connector IL | 0.35dB Max (0.15dB Typ.) | LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥20dB | LC Connector RL | ≥30dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Jacket OD | 3.0mm | Fan-Out Diameter | 2.0mm |
| Cable Jacket | Plenum (OFNP) | Fiber Count | 8 Fibers |
| Installation Tensile Load | 66N | Tensile Strength (Long/Short Term) | 80/240N |
| Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -40 to 85°C (-40 to 185℉) |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
