Feature
- we can custom fiber Patch cord cable structure, fiber count, connector types, length, package for you.
- price unbeatable
- Shortest delivery time
- Door to door delivery to all over the world
- LC, SC, ST, FC, LSH,MTRJ, MU connectors are available.
- OS1, OS2, OM1, OM2, OM3, OM4,OM5 are available.
Core Specifications

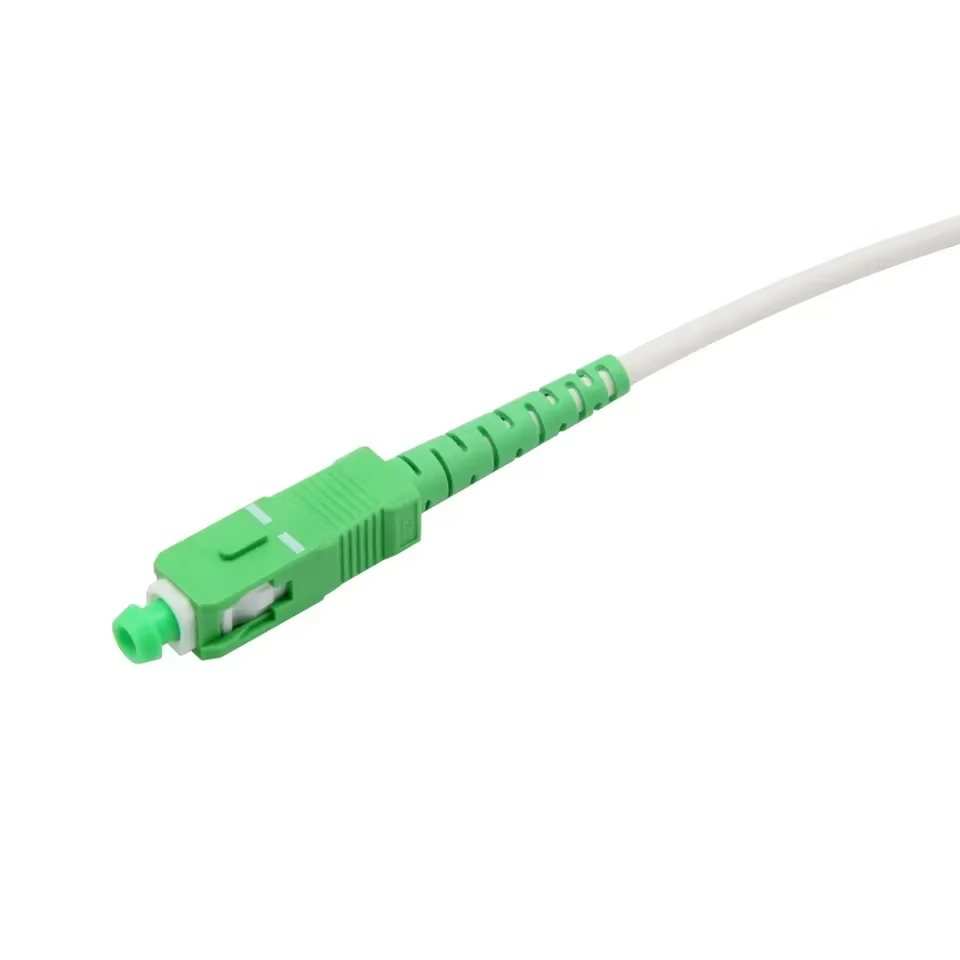

| Product | Armored Fiber Patch Cord |
| Pre-Terminated Connector | SC to SC |
| Polished | UPC or APC |
| Fiber Count | 1 Core |
| Fiber Mode | SM or MM |
| Jacket Color | White |
| Breakout OD | 3.0mm |
| Jacket Materials | PVC LSZH TPU |
| Insertion Loss | < 0.2 DB |
| Product Keywords | fiber optic patch cord Armored,outdoor fiber patch cord sc apc,patchcord fiber optic |
Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents and pests.
Characteristics
- • SM： G652D/G657A1/G657A2
- • MM：OM1/OM2/OM3/OM4
- • Cores：SX/DX/4C/6C/8C/12C/24C
- • OD：3.0/4.5/5.0/5.5/6.0/6.5/7.0mm
- • Jacket：PVC/LSZH/TPU
- • Color：White
- • IL： SM/UPC≤0.3db MM/UPC≤0.3db
- • RL：SM/UPC≥55 db MM/UPC≥35 db
- • Length：Customized
- • Branch Length：Customized
- • Connector：LC/SC/FC/ST
Tough Steel Tube Protects Network Connection Further
Stainless steel tube can provide good protection against optical fiber breakage and be used in a slight oil, gas and moisture environment, which ensure the operation of the network.
Applications
- CATV
- Optical fiber communication systems
- Optical fiber data transmission
- Building network access
- Cabling system, ODF
- FTTX applications
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
