Funkcja
- We wholesale fiber optic pigtails at unbeatable price
- Doskonała jakość
- Długość niestandardowa - OK
- Niestandardowy typ złącza - OK
- Niestandardowa liczba złączy - OK
- Opakowanie niestandardowe, naklejka - OK
- Kolor niestandardowy - OK
- Szybka dostawa

Podstawowe specyfikacje
Prefabricated fiber optic connector components are designed for indoor and outdoor fiber optic access networks. This terminal provides users with protection and fast and convenient incremental cable connections, while also improving deployment speed. Its reliability and flexibility make it an ideal choice for fiber optic access networks outside of factories,including network access point terminals in fiber to home (FTTH) network deployments.
replace traditional water blocking ointment, Corning ClearCurve fiber. This is a revolutionary fiber optic cable and cable. The optical cable assembly adopts a fully dry design, using water blocking yarn and wrapped water blocking tape to that is not sensitive to bending and can ensure almost no attenuation loss even in sharp bends.
Funkcja
- Cost effective solution for in house termination
- Low insertion loss and added loss
- The material in the jumpel cable are all-weather and UV-resistant
- Mechanical performance: IEC 61754-4 standard
- RoHS and REACH materials compliant
Zastosowanie
- Telecommunication networks
- Outdoor communication equipment connection
- Remote wireless base station
- FTTX applications
Specyfikacja

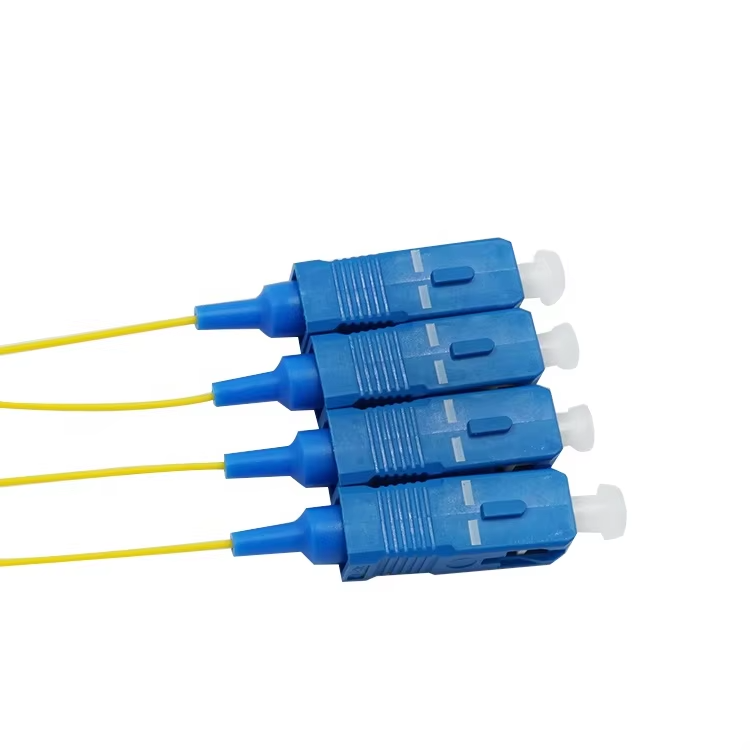

Pigtail Connector | PC(SM) | UPC(SM) | APC(SM) | MM |
Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
Insection Loss (dB) | ≤0.2 (max≤0.3) | |||
Repeatability (dB) | ≤0.1 | |||
Durability (1/Matings) | ≥500 | |||
Operation Temperature (°C) | -25~+70 | |||
Tensile Strength(N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | |||
Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
Diameter | 0.9mm, 2.0mm, 3.0mm etc | |||
Cable Material | PVC, LSZH | |||
Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc | |||
Colored Coating Fiber Subunit | Fiber Standard fiber chromatography |
Cable Subunit Diameter | 1.8-2.0mm |
Cable Subunit Material | LSZH |
Cable Subunit Strength member | Water-blocking Yarn |
Central Strength Member Diameter | 2.1mm |
Central Strength Member Material | FRP Central Strength |
Kurtka zewnętrzna | Black HDPE |
Technical
Connector Types | SC/LC/ST/MPO/E2000 |
Tulejka złącza | Ceramika cyrkonowa |
Typ włókna | G657A1 Fiber |
Count | 12-576 Connector |
Insertion Loss | max≤0.35dB; (Typical≤0.2dB) |
Strata zwrotu | SMF: UPC≥50, APC≥60 ;MMF: ≥30 |
Fiber Attenuation | 1310 nm≤0.36 dB/km ; 1550nm≤0.22 dB/km |
Min Bending Radius(mm) | Long term :10D ;Short term: 20D |
Minimum allowable Tensile Strength (N) | Long term :600 ; Short term: 1500 |
minimum allowable Crush Load(N/100mm) | Long term :300 ; Short term:1200 |
Installation Temperature range | (ºC) -20+60 |
Operation and transport temperature | (ºC) -40+70 |
Często zadawane pytania
Tak. Jesteśmy prawdziwym producentem zatrudniającym ponad 500 pracowników.
Od 2001 roku.
Tak, dostępne jest małe zamówienie. Wspieramy nowe projekty naszych klientów, ponieważ wiemy, że biznes zawsze opiera się na małych zamówieniach.
10 lat na kabel LAN, 25 lat na kabel światłowodowy
ISO9001, SGS, UL, CPR, CE, RoHs
Zwykle w ciągu 10-15 dni roboczych
Kabel Lan, nasza roczna produkcja wynosi 500000 * 305 m
Zewnętrzny/wewnętrzny kabel światłowodowy, nasza roczna produkcja wynosi 8 000 000 KM;
Kabel FTTH/FTTX/FTTA, to 6 000 000 km rocznie;
Patchcord/pigtaile, to 12 400 000 sztuk rocznie.
T/T, L/C, Western Union i Ali płacą.
Tak. Dostarczamy usługi OEM i ODM. Możesz przesłać nam swój rysunek lub wykonamy projekt przez nasz profesjonalny, dostosowany do indywidualnych potrzeb zespół.
