คุณสมบัติ
- we can custom fiber Patch cord cable structure, fiber count, connector types, length, package for you.
- price unbeatable
- Shortest delivery time
- Door to door delivery to all over the world
- LC, SC, ST, FC, LSH,MTRJ, MU connectors are available.
- OS1, OS2, OM1, OM2, OM3, OM4,OM5 are available.
Core Specifications
| Product Name | Fiber Optic Breakout Cable Patchcord |
| Minimum Bend Radius (mm) | 10D/5D (Dynamic/Static) |
| Cable Diameter | breakout leg OD:2.0mm or 0.9mm |
| Cable Jacket | PVC,LSZH |
| Fiber Cords Structure | Single Armored, Stainless Steel Tube, or no armored |
| Tensile Loads (Long Term) | 120 N |
| Tensile Loads (Short Term) | 225 N |
| Operating Temperature | -25~70°C |
| Storage Temperature | -25~70°C |
| Insertion Loss | ≤0.3dB |
| Product Keywords | fiber optic breakout unit,24 Fibres SM Indoor Fiber Optic Breakout Unit |
Product Description:

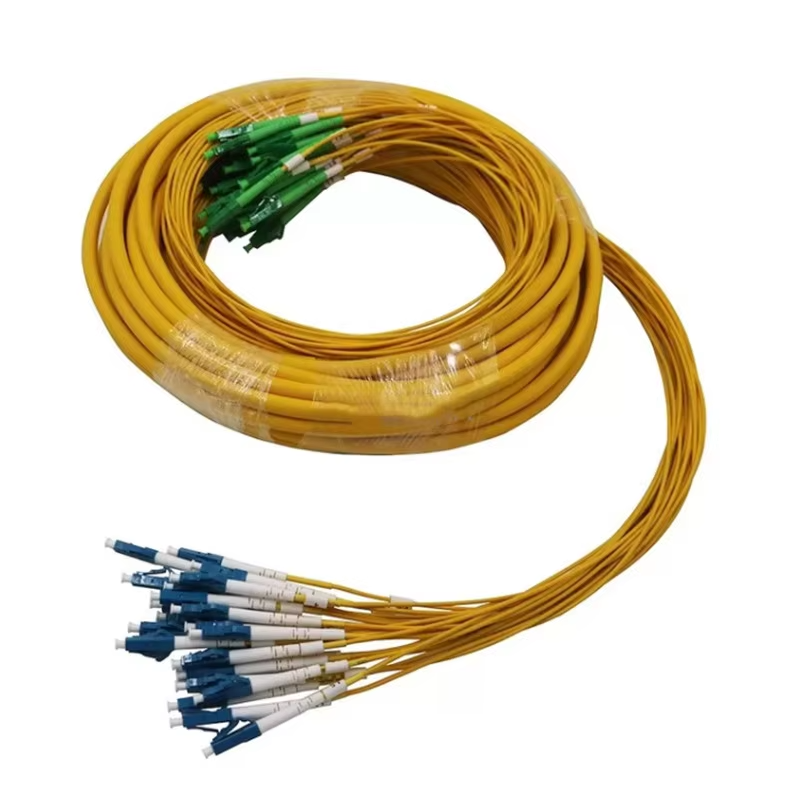

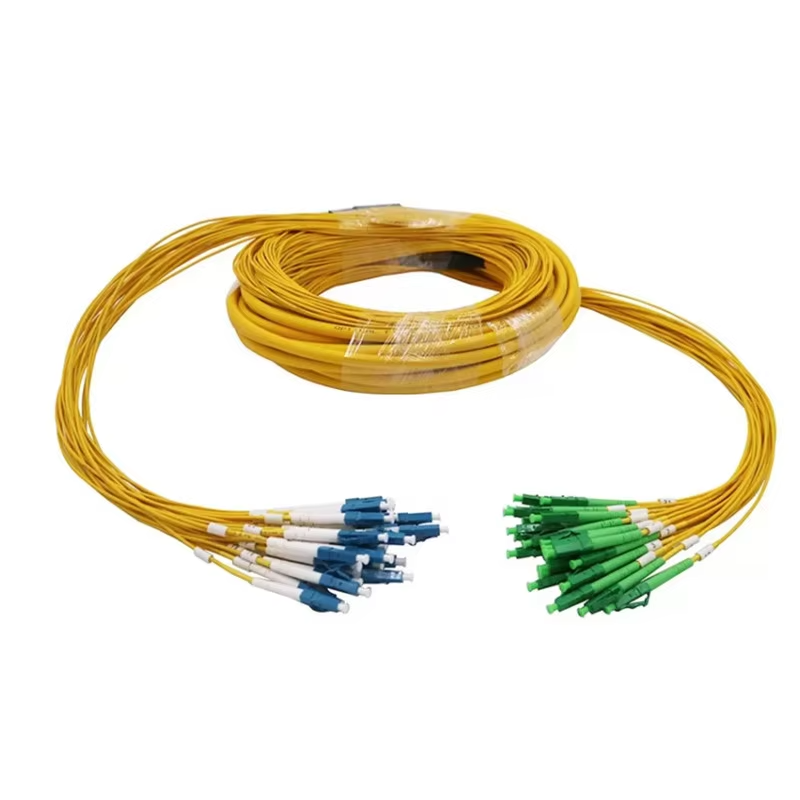

Indoor multi-fiber breakout cable is a low-cost, pre-assembled cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes.
The fiber optic cable has industry standard flammability rating OFNR (Riser) jacket and the connector meets EIA/TIA 604-2 for high speed cabling networks.
End-Face Type: PC/UPC/APC
Customer lengths and connectors are available upon request
Fiber Diameter:9/125; 50/125; 62/125 Available for Simplex and duplex, pigtail type
Low insertion loss and high return loss, high dense connection, easy for operation fiber optic patch cord multimode
Fiber Type: Single mode fiber G652D, G657A1 and G657A2, Multimode fiber OM1, OM2, OM3 and OM4 are available
The outer jacket can be PVC, LSZH, OFNR, OFNP,Armored etc Available for different connectors: SC, LC, FC, ST, MPO/MTP, MTRJ, MU, etc
CATV
Computer networks
Telecommunication networks
ODF of optical transmission system
High speed data transmission network
High quality graphic transmission network
Connection of optical transmission equipment
Techinique parameter
Fiber Mode | SM | MM | ||||
Connector Type | FC,SC | ST,LC | FC,SC,ST,LC | |||
Diameter | Φ0.9,Φ2.0,Φ3.0 | |||||
End-face Finishing | PC | UPC | APC | PC | UPC | APC |
Insertion Loss(dB) | ≤0.30 | ≤0.30 | ≤0.20 | ≤0.20 | ||
Rutern Loss(dB) | ≥50 | ≥50 | ≥60 | ≥45 | ≥50 | ≥35 |
Exchangeability(dB) | ≤0.20 | |||||
Repeatability(dB) | ≤0.10 | |||||
Operating Temperature(℃) | —40~+75 | |||||
Storage Temperature(℃) | —40~+85 | |||||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
