คุณสมบัติ
- we can custom fiber cable structure, fiber count, length, package for you.
- price unbeatable
- Shortest delivery time for you, we produce 2000KM / day
- Simple installation
- Easy access, single-tube design
- Toneable
- Toning conductor that can be easily separated
- Small, lightweight cables
- FTTP, Drop, FTTx, direct buried, conduit Underground, self-supporting aerial
Core Specifications

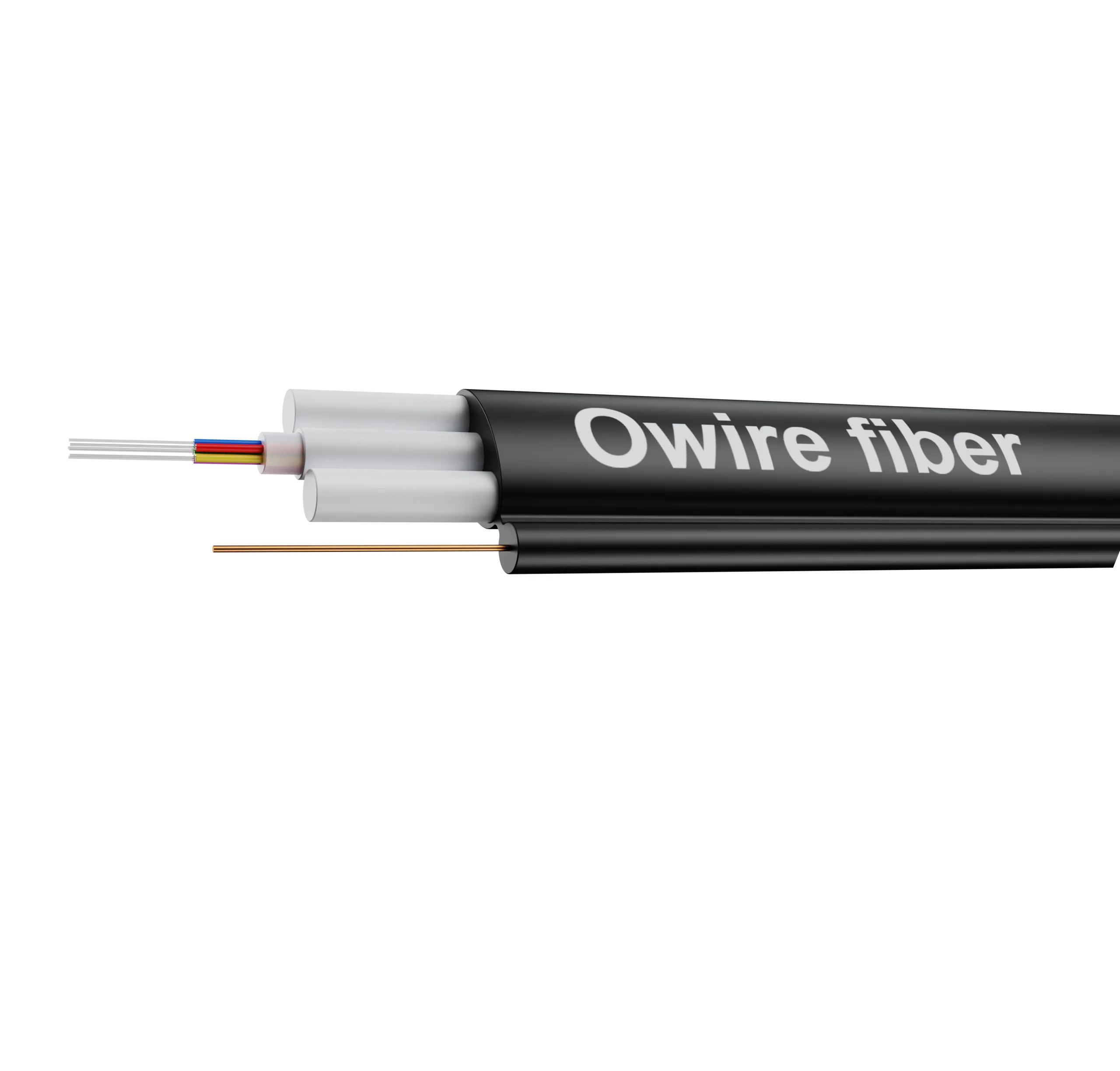

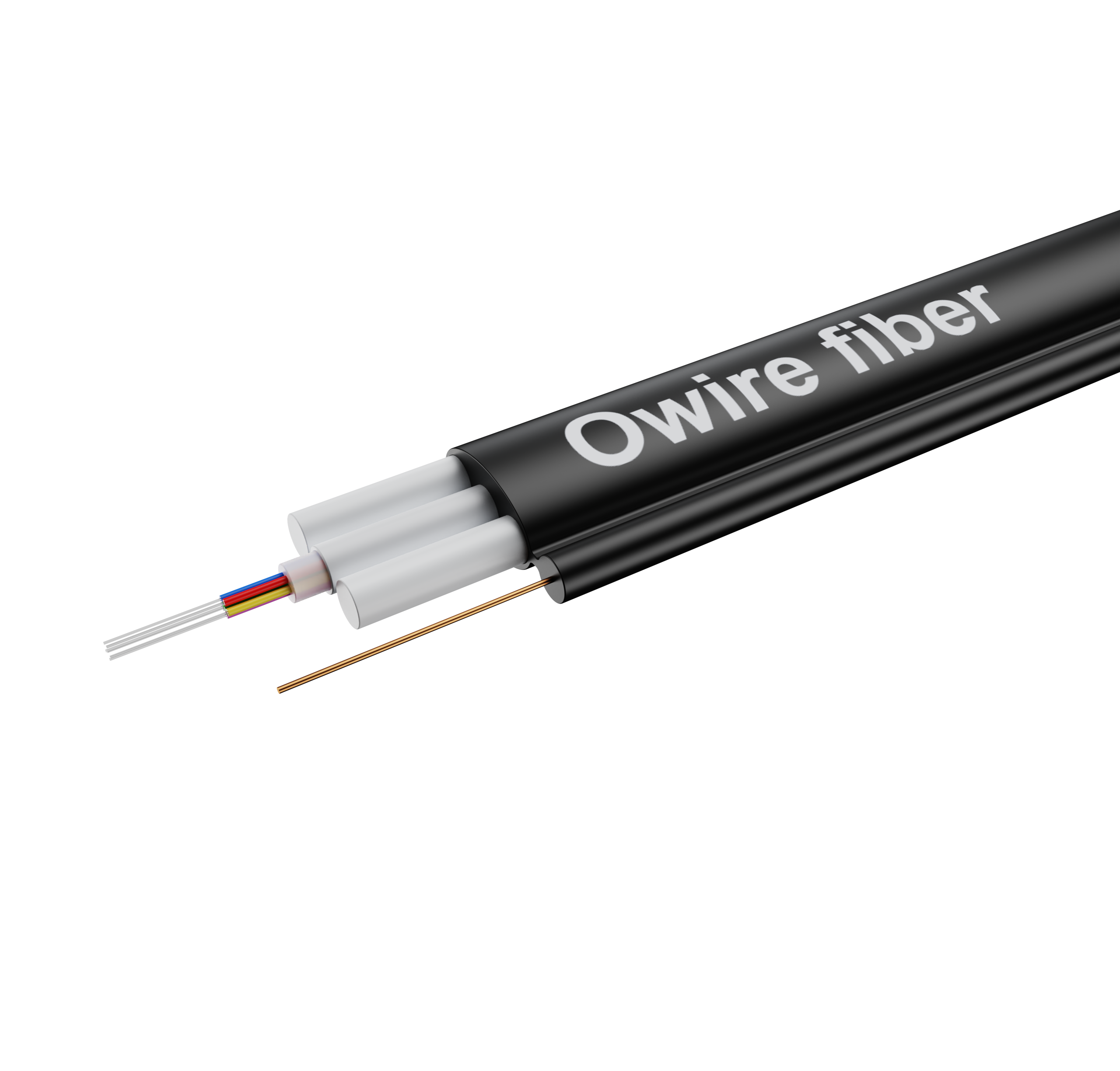

Compact, Durable and Flexible Fiber Optic Cable for the Last Link in Your Optical FTTx Network
The Mini Flat Drop Cable offers an ideal solution for direct routing into living units for the final section of an optical network, especially in a fiber-to-the-premise (FTTx) installation. The riser-rated EZ-Bend subunit allows this cable to be installed directly from the pedestal to the indoor Optical Network Terminal (ONT) with no intermediate termination. This capability helps to save time and money by avoiding splicing and/or termination on the outside or inside wall of a residence. The all-dielectric version of the Mini Flat Drop Cable also helps to save money by elliminating the need for expensive bonding or grounding. The excellent tensile strength and crush resistance of the Mini Flat Drop Cable make it robust enough for below-grade installation in ducts or open trenches, and also ideal for self-supporting aerial deployments.
Application:
Last Link, FTTx, Drop , direct buried, conduit Underground, self-supporting aerial
Structure
Items | Descriptions | |
Optical fiber | Count | 2-24 |
หมวดหมู่ | SM / MM | |
Color | Blue、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua | |
Strength member | Material | FRP |
Loose tube | Material | PBT |
Color | Natural / White | |
Water-blocking | Material | Water-blocking yarn |
Red ripcord | 1Pcs | |
Electricity unit | Conductor diameter | 0.5mm |
Material | Copper | |
Outer sheath | Color | Black |
Material | PE | |
Optical fiber characteristics：
Single mode
หมวดหมู่ | G652D （1310nm/1550nm） | G657A1 （1310nm/1550nm） | G657A2 （1310nm/1550nm） | |
Attenuation | Typical | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km |
Max | 0.5dB/km/0.4dB/km | 0.5dB/km/0.4dB/km | 0.5dB/km/0.4dB/km | |
Zero dispersion slope | ≤0.091ps/km·nm2 | ≤0.092ps/km·nm2 | ≤0.092ps/km·nm2 | |
Chromatic dispersion（1285-1340nm） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | |
MFD（@1310nm） | 9.3±0.4μm | 8.8±0.4μm | 8.8±0.4μm | |
Cut-off wavelength | ≤1260nm | ≤1260nm | ≤1260nm | |
Min bending Radius | 16mm | 10mm | 7.5mm | |
Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Multi mode
หมวดหมู่ | 62.5/125μm （850nm/1300nm） | 50/125μm （850nm/1300nm） | BIOM3 （850nm/1300nm） | BIOM4 （850nm/1300nm） | |
Attenuation | Typical | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km |
Max | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | |
Bandwidth（MHz·km） | ≥200/≥500 | ≥500/≥500 | ≥1500/≥500 | ≥3500/≥500 | |
Effective mode bandwidth（MHz·km） | —-/—- | —-/—- | ≥2000/—- | ≥4700/—- | |
Min bending Radius（mm） | 30 | 30 | 7.5 | 7.5 | |
Cladding diameter
| 125±1.0μm | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Mechanical and Environmental performance：
Items | Long-term | Short-term |
Tensile performance | 500N | 1000N |
Crush resistance | 500N/100mm | 1000N/100mm |
Min bending radius(“H” is the height of the cable) | Static：10H | |
Dynamic：20H | ||
Installation temperature | -20℃～﹢60℃ | |
Operating temperature | -40℃～﹢70℃ | |
The mechanical properties of other optical fibers and optical cables shall meet the international standards of IEC60793 or IEC60794 | ||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
