| Model Name: | PV1-F,PV Cable | AWG: | 12 Awg-2000 Kcmil |
|---|---|---|---|
| Rated Voltage: | 600v 1000v 2000v | Type: | Low Voltage |
| Conductor Type: | Flxieble Tinned Copper, Bare Copper,Aluninum Alloy | Sheath: | Sunlight Resistant PVC |
| Insulation: | HDPE(High Density Polyethylene) | Application: | Power Station, PV Power Dc,ac System |
| High Light: | 2000 kcmil 6mm2 Photovoltaic Cable, TUV 2000 kcmil 4mm2 Photovoltaic Cable | ||
photovoltaic PV cable DC Cable TUV AND UL certification 6mm2 /4mm2 Solar PV cable
Product Description

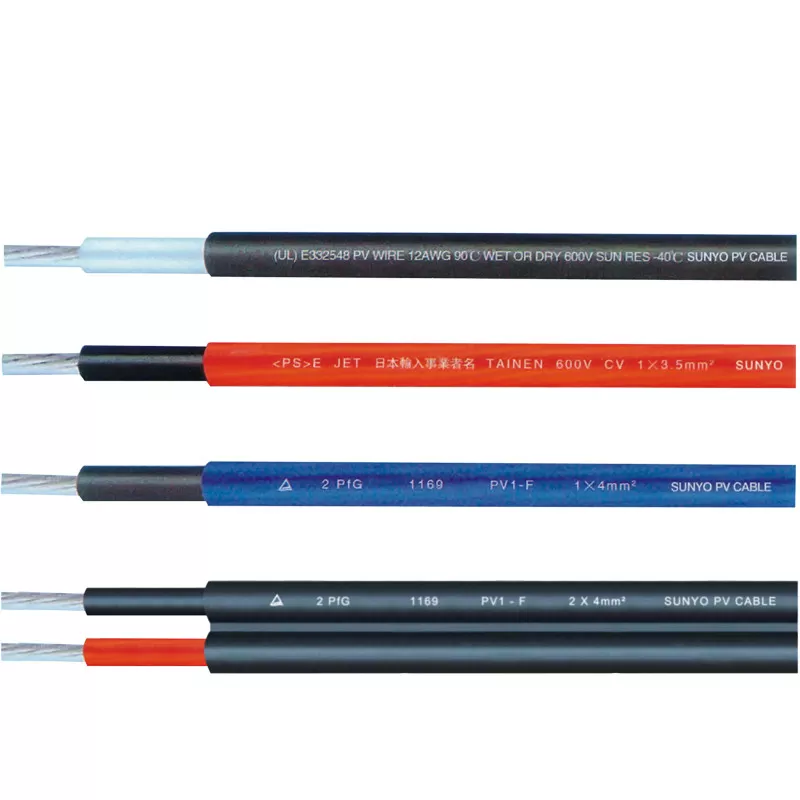

UL approved photovoltaic PV cable, TUV approvd 2PfG 1169 PV1-F solar cable 4mm2 Solar PV Cable, 12AWG PV Cable for solar panel
Solar Cable
Başvuru
Double insulation, electron-beam cross-linked cables for photovoltaic power station.
Especially for the connection between Solar power generation device connector and connection of inverter,Under the condition of different climate outdoor installation,and can adapt to the dry and wet indoor working environment
Construction
Conductor: Tinned copper, according to the VDE 0295/ IEC 60228,Class5
Insulation: Polyolefin copolymer electron-beam cross-linked
Outer Sheath: Polyolefin copolymer electron-beam cross-linked
Sheath color: Black/Red/Blue or as per customer’s requeit
Technical Specification
Nominal Votage: U0/U=600/1000VAC,1000/1800VDC
Test Voltage: 6500V,50Hz,5min
Temperature Rating:
-45ºC ~ +125ºC
-40°F ~ +257°F
Ambient temperature
-40ºC ~ +90ºC
-40°F ~+194°F
Max. Short circuit temperature:280ºC,+536°F
Bending Radius: Fixed installation>4X, Occasionally moved>5X
Material Properties/ Standards
Fire-resistance performance: IEC 60332-1
Smoke emission: IEC 61034; EN 50268-2
Low fire load: DIN 51900
Approvals: TUV 2PfG 1169/08.2007 PV1-F
Application standards: UNE 211 23; UNE 20.460-5-52,UTE C 32-502
Construction | Conductor Construction | Conductor ø | Outer ø | Resistance Max. | Current Carring Capacity |
n×mm² | n/m | mm | mm | Ω/Km | A |
1×1.5 | 30/0.25 | 1.58 | 4.9 | 13.3 | 30 |
1×2.5 | 50/0.25 | 2.02 | 5.45 | 7.98 | 41 |
1×4.0 | 56/0.3 | 2.30 | 6.1 | 4.75 | 55 |
1×6.0 | 84/0.30 | 3.42 | 7.2 | 3.39 | 70 |
1×10.0 | 142/0.30 | 4.56 | 9 | 1.95 | 98 |
1×16.0 | 228/0.30 | 5.60 | 10.2 | 1.24 | 132 |
1×25.0 | 361/0.30 | 6.95 | 12 | 0.795 | 176 |
1×35.0 | 525/0.30 | 8.74 | 13.8 | 0.565 | 218 |
1×50.0 | 720/0.30 | 9.20 | 14.8 | 0.393 | 280 |
1×70.0 | 988/0.30 | 11.00 | 16.9 | 0.277 | 350 |
1×95.0 | 1349/0.30 | 12.50 | 18.7 | 0.21 | 410 |
1×120 | 1691/0.30 | 14.20 | 20.7 | 0.164 | 480 |
Packging details
 |  |  |

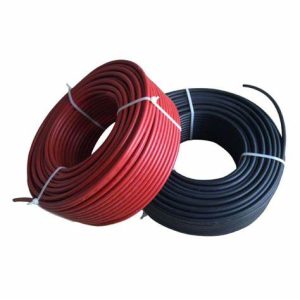

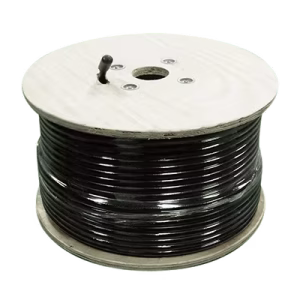

| – Coil in foil 100m (as of 10 mm2) – Coil in cardboard (100m) as required (up to 6 mm2) | –Electrical wire ready to delivery | –Reel / Drum (as of 35 mm2) –Other package as required |
▼ Advantage:
Compressed Conductor easy for installation, UV – resistant , total protection for the cable
▼ Standards&Certificates:
IEC 60502-1 TUV
▼ Packing&Delivery:

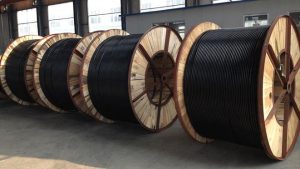

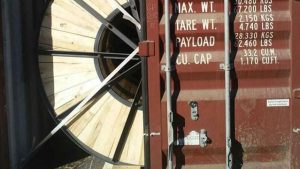

| Packaging details : | Delivery : | |
 |  |  |
| Steel Wooden Drums | Cable Drum In container | shipped in 15 days after payment |

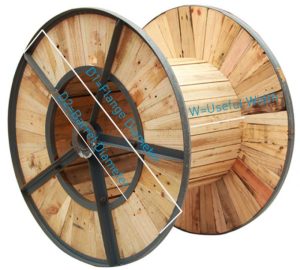

▼ Cable Drum Data:
| CABLE DRUMS | D1=Flange Diameter(mm) | W=Useful Width (mm) | D2=Barrel Diameter(mm) |
 | 1000 | 700 | 500 |
| 1100 | 700 | 550 | |
| 1200 | 700 | 600 | |
| 1400 | 750 | 710 | |
| 1600 | 900 | 900 | |
| 1800 | 1120 | 1000 | |
| 2400 | 1150 | 1300 |
