tính năng
- chúng tôi có thể tùy chỉnh cấu trúc cáp sợi Patch, số lượng sợi, loại đầu nối, chiều dài, gói cho bạn.
- giá cả cạnh tranh nhất
- Thời gian giao hàng ngắn nhất
- Door to door delivery to all over the world
- LC, SC, ST, FC, LSH,MTRJ, MU connectors are available.
- OS1, OS2, OM1, OM2, OM3, OM4,OM5 are available.
Thông số kỹ thuật cốt lõi

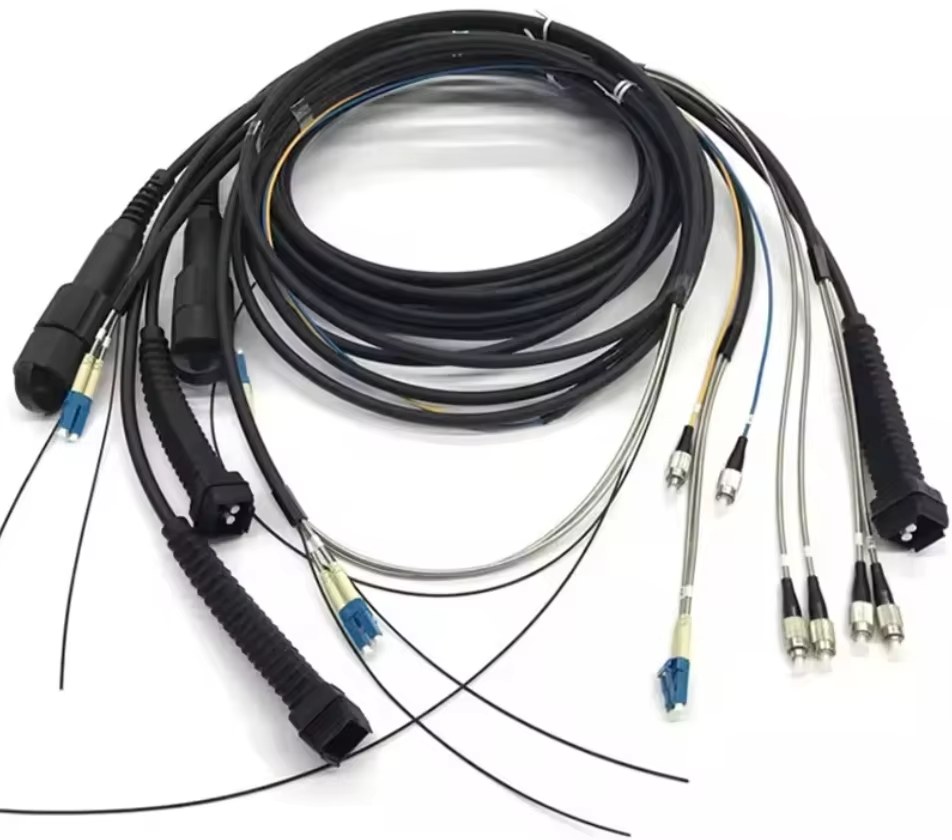

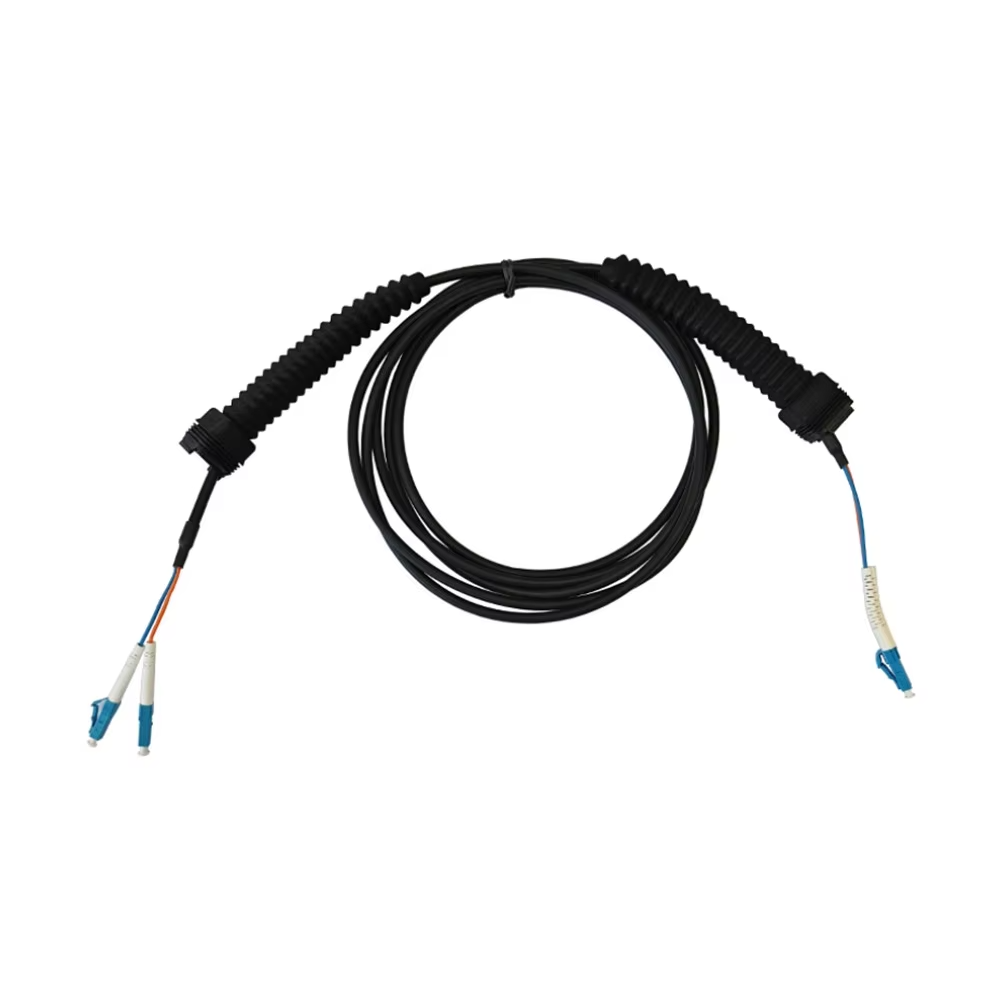

| Product | FTTA NSN Outdoor Fiber Patch Cord |
| Pre-Terminated Connector | LC/SC/FC/ST |
| Polished | UPC or APC |
| Fiber Count | DX |
| Chế độ sợi | Single Mode or multi mode for option |
| Jacket Color | Black |
| Insertion Loss | < 0.3 DB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Jacket Materials | PVC LSZH |
| Diameter | 5.0/7.0±0.2mm |
| Product Keywords | NSN dual OS2,NSN outdoor patch cord,NSN FTTA Fiber to The Antenna jumper |
Product description:
The CPRI patch cords are standard size for Duplex LC Connectors, widely used in FTTA, Base station, and the outdoor waterproof condition.
FTTA (Fiber to the Antenna) DLC (Dual LC Connector) SM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application.
Performance:
Item | Data |
Insertion Loss | ≤0.3dB |
Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
Mechanical life | 500cycles |
Working temperature | -20°C~+70°C |
Storage temperature | -20°C~+70°C |
Tensile Data | Tensile between junction and fiber cable≥100N |
Cable Structure:
loại1: 2×Unit Cable(2.0mm)+2×Stuffing Cable+Jacket OD=5.0/7.0mm
Cable Count | OD (mm) | Weight | Tensile strength | General attenuation | Minimal Bending radius | Storage temperature | ||
2 | 5.0/7.0±0.2 | 45kg | Short term | Long term | Singlemode | Multimode | 20D | -20℃～+70℃ |
900N | 450N | 1310nm ≤0.4dB/km | 850nm ≤3.0dB/km | |||||
Tính năng:
The patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc.
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
500cycles Mechanical life
Widely used in FTTA & FTTH
Used for 4G 5G base station
BBU, RRU, RRH, LTE.
Applications:
- BBU, RRU, RRH, LTE, …
- Widely used in FTTA & FTTH,
- Used for 3G 4G 5G base station,
Câu hỏi thường gặp
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
