Feature
- we can custom fiber Patch cord cable structure, fiber count, connector types, length, package for you.
- price unbeatable
- Shortest delivery time
- Door to door delivery to all over the world
- LC, SC, ST, FC, LSH,MTRJ, MU connectors are available.
- OS1, OS2, OM1, OM2, OM3, OM4,OM5 are available.
Core Specifications
Product details
| Poduct Name | Fibre Optic Jumper Cable/Patch Cords |
| Jacket Material | PVC or LSZH |

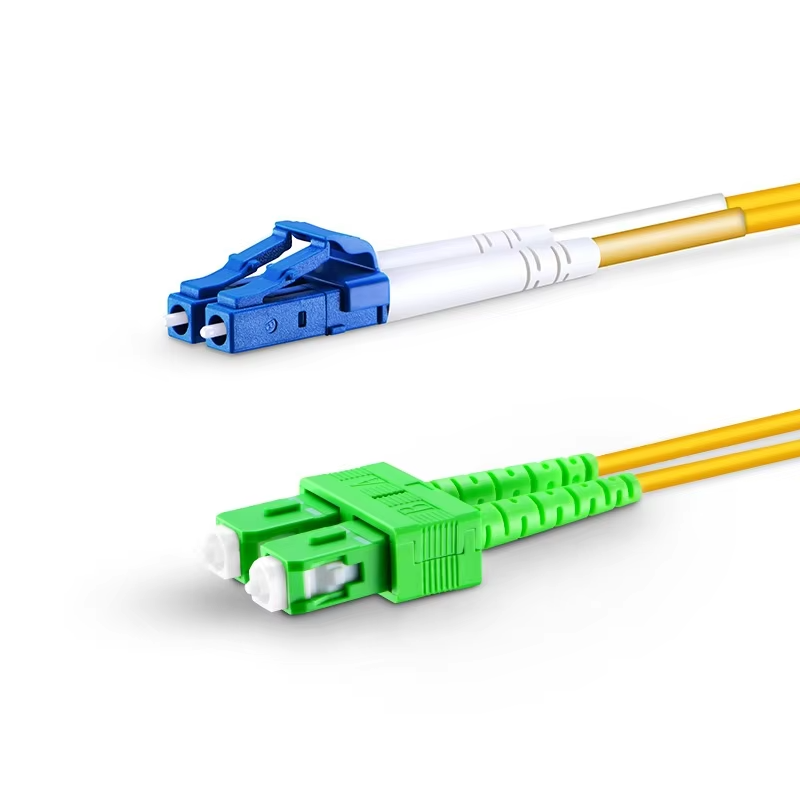

| Connector Type | SC/APC to LC/UPC |
| Fiber Type | SM 9/125µm Singlemode OS2 |
| Color | Yellow/White(SM) |
| Fiber Core | Duplex |
| Cable Length | 1m,2m,3m or Customized |
| Cable Diameter | 2.0 mm, 3.0mm |
| Fiber connector boot | 0.9, 2.0, 3.0mm |
| Fiber Grade | G652D, G657A1, G657A2, G655C or customized |
| Product Keywords | drop cable,fiber patch cables,fiber optic patch cord |
Description:
Single mode fiber patch cables are the most cost effective solutions for long distance transmissions without any considerable loss and We take pride in our work and all our fiber patch cables are inspected and tested at the factory for optimum performance. Our fiber optic cable SC-LC have a 9/125 micron Single mode Yellow Color Jacket and can be used in situations that require good interchange and repeatability and can be used extensively in telecommunication networks.
Features:
• Low insertion loss, high return loss
• Good compatibility
• High precision of mechanical dimensions
• High reliability & stability
• Ceramic or Bronze Sleeve
• PC, APC, UPC optional
| Connector Types End A | SC |
| Connector Types End B | LC |
| Polish Type | APC-UPC |
| Connector Ferrule | Zirconia Ceramic |
| Cable Outside Diameter | 0.9mm/1.6mm/2.0mm/3.0mm |
| Interchangeability | ≤0.2dB |
| Fiber Type | SM(9/125) OS2 |
| Fiber Count | Duplex |
| Cable Jacket | PVC/LSZH |
| Jacket Color | Yellow |
| Fiber Grade | G.652.D/G.657.A1/G.657.A2/G.655 |
| Cable Length | 1, 2, 3 Meter Or Other Length |
| Connector Insertion Loss | UPC≤0.20dB, APC≤0.20dB |
| Connector Return Loss | UPC≥50dB, APC≥65dB |
ứng dụng
Telecommunication
Computer networks
CATV networks
Active device termination
Instrumentation
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
