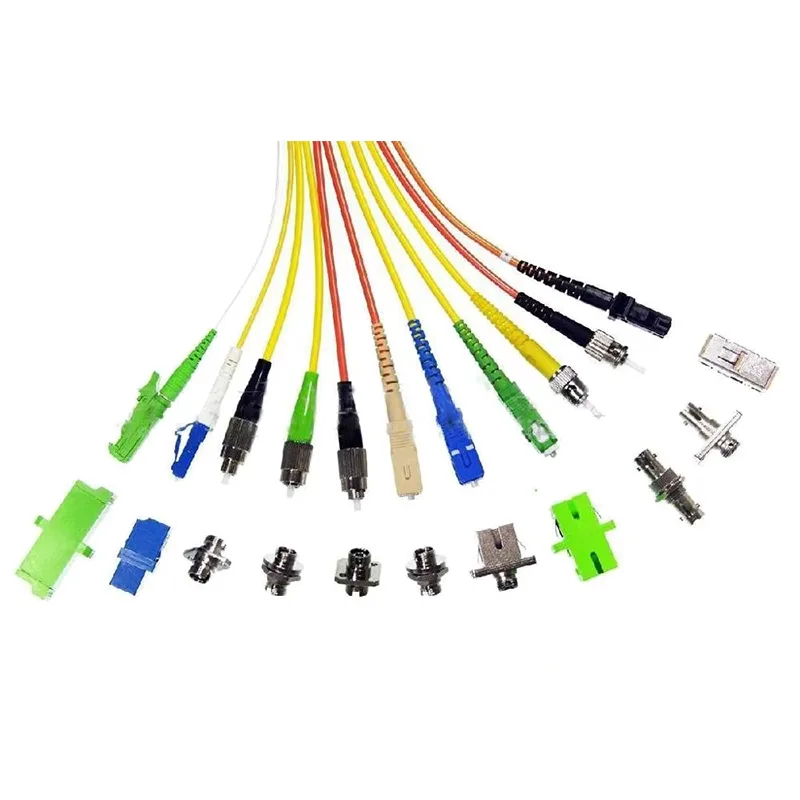

ST FC SC LC MTRJ MPO Fiber optic jumper Patch Cord

Custom ST FC SC LC MTRJ MPO Fiber optic jumper Patch Cords

We are a manufacturer of ST FC SC LC MTRJ MPO Fiber optic jumper Patch Cords. We supply fiber patch cord cable in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.

特点

ST FC SC LC MTRJ MPO Fiber optic jumper Patch Cord

核心规格

Item

Unit

FC,SC,ST/PC

FC,SC,ST/UPC

FC,SC,ST/APC

插入损耗

分贝

≤0.20

≤0.20

≤0.30

重复性

分贝

≤0.10

Exchangeability

分贝

≤0.20

回波损耗

分贝

≥45(SM)

≥50(SM)

≥60(SM)

光纤类型



Corning SMF-28TM, 9/125um (SM), 50/125um or 62.5/125um(MM)

工作温度

°C

-40~+80

储存温度

°C

-40~+85

耐用性

time

>1000 times

Industry Standard

Telcordia GR-326-CORE

常见问题解答

是的。 We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001、SGS、UL、CPR、CE、RoHs

通常在10-15个工作日内

网络电缆,年产量500000*305m
室外/室内光缆,年产量800万公里;
FTTH/FTTX/FTTA光缆,每年6,000,000公里;
跳线/尾纤,每年 12,400,000 件。

T/T、L/C、西联汇款和阿里支付。

是的。我们提供 OEM 和 ODM 服务。您可以将您的图纸发送给我们,或者我们由我们专业的定制团队进行设计。
