Feature
- Unbeatable price, because we are original manufacturer of fig 8 fiber cable
- we can customize cable structure, fiber cores count, length, word printing for you.
- One day produce 2 containers fiber optic cables, shortest lead time for you.
- Self-supporting Aerial
- Low dispersion and attenuation
- Long-distance communication, local trunk line, CATV & computer networks system
- Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and enviromental properties
- With small cable diameter, light cable weight, self-supporting
Core Specifications

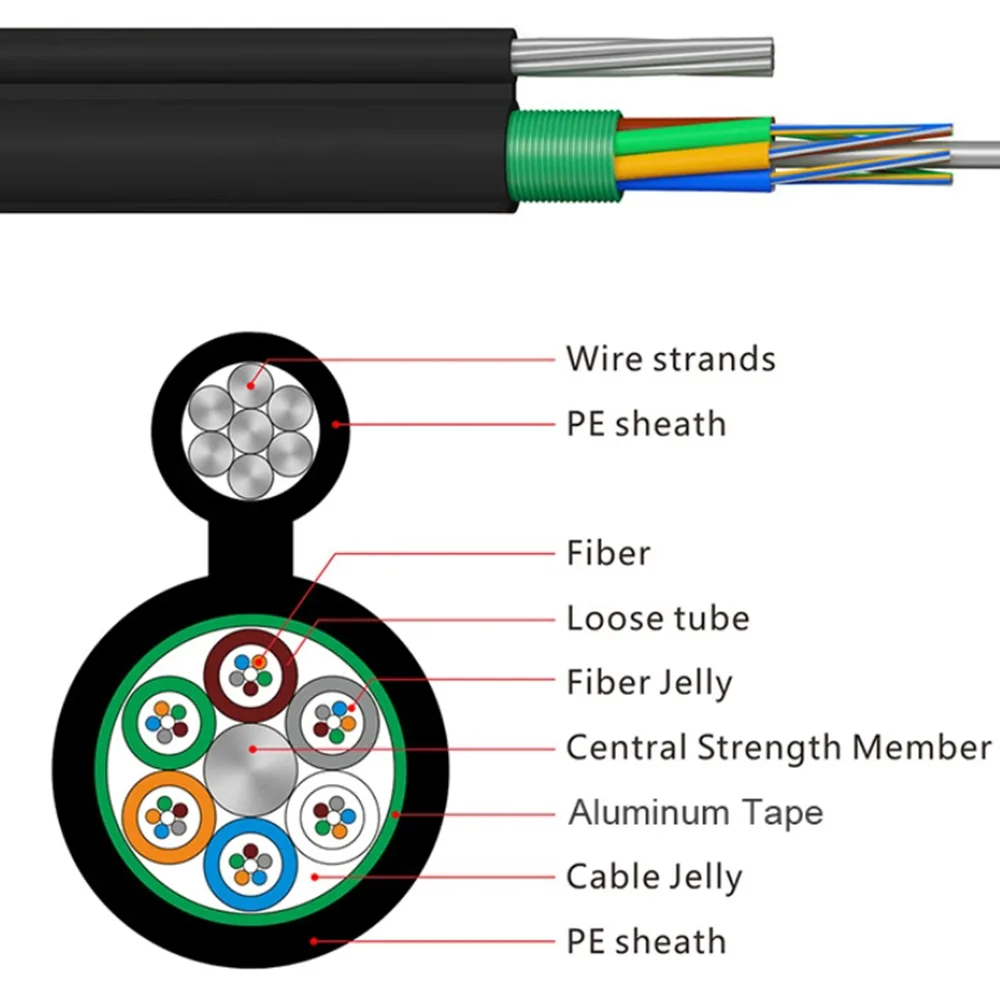

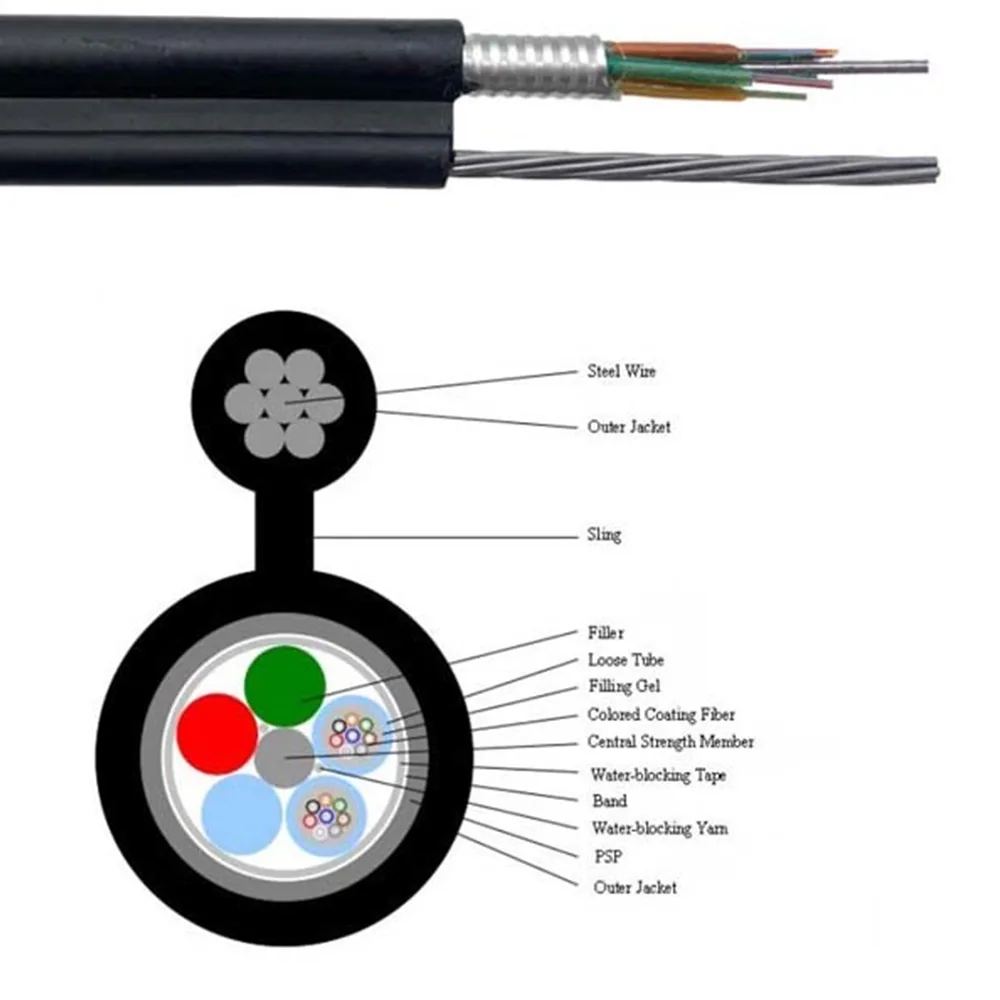

Structions
Items | Descriptions | |
Optical fiber | Count | 2-288 |
Color | Blue、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua
| |
Loose tube | Color | Blue、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua
|
Material | PBT | |
Infilling | Fiber jelly | |
Possible filler | Material | PP |
Color | Natural or Black | |
Messenger member | Material | Steel wire or Stranded steel wire |
Center strength member | Material | Steel wire or FRP |
Possible armor layer | Material | Corrugated steel tape or Aluminum tape |
Thickness of suspension（mm） | ≥1.1 | |
Outer sheath | Material | PE |
Color | Black | |
Optical Fiber Characteristics
Single mode
类别 | G652D （1310nm/1550nm） | G657A1 （1310nm/1550nm） | G657A2 （1310nm/1550nm） | |
Attenuation | Typical | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km |
Max | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | |
Zero dispersion slope | ≤0.091ps/km·nm2 | ≤0.092ps/km·nm2 | ≤0.092ps/km·nm2 | |
Chromatic dispersion（1285-1340nm） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | |
MFD（@1310nm） | 9.2±0.4μm | 8.8±0.4μm | 8.8±0.4μm | |
Cut-off wavelength | ≤1260nm | ≤1260nm | ≤1260nm | |
Min bending Radius | 16mm | 10mm | 7.5mm | |
Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Multi mode
类别 | 62.5/125μm （850nm/1300nm） | 50/125μm （850nm/1300nm） | BIOM3 （850nm/1300nm） | BIOM4 （850nm/1300nm） | |
Attenuation | Typical | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km |
Max | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | |
Bandwidth（MHz·km） | ≥200/≥500 | ≥500/≥500 | ≥1500/≥500 | ≥3500/≥500 | |
Effective mode bandwidth（MHz·km） | —-/—- | —-/—- | ≥2000/—- | ≥4700/—- | |
Min bending Radius（mm） | 30 | 30 | 7.5 | 7.5 | |
Cladding diameter
| 125±1.0μm | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Mechanical and Environmental performance：
Items | Short-term | Long-term |
Max allowed tension（MAT） | ≥3000N | |
Crush resistance | 1000N/100mm | 300N/100mm |
Min bending radius(“H” is the height of the cable) | Static：10H | |
Dynamic：20H | ||
Installation temperature | -20℃～﹢60℃ | |
Operation temperature | -40℃～﹢70℃ | |
The mechanical properties of other optical fibers and optical cables shall meet the international standards of IEC60793 or IEC60794 | ||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
