Feature
- Category 6A S/FTP cable is intended for high speed data
- applications including: IEEE 802.3, 10BASE-T, 1000BASE-TX, and
- 10GBASE-T, 155 Mb/s ATM, 4/16 Mb/s Token Ring
- Specified and tested to 500 MHz
- Small, round design pairs
Core Specifications
| Specification | |

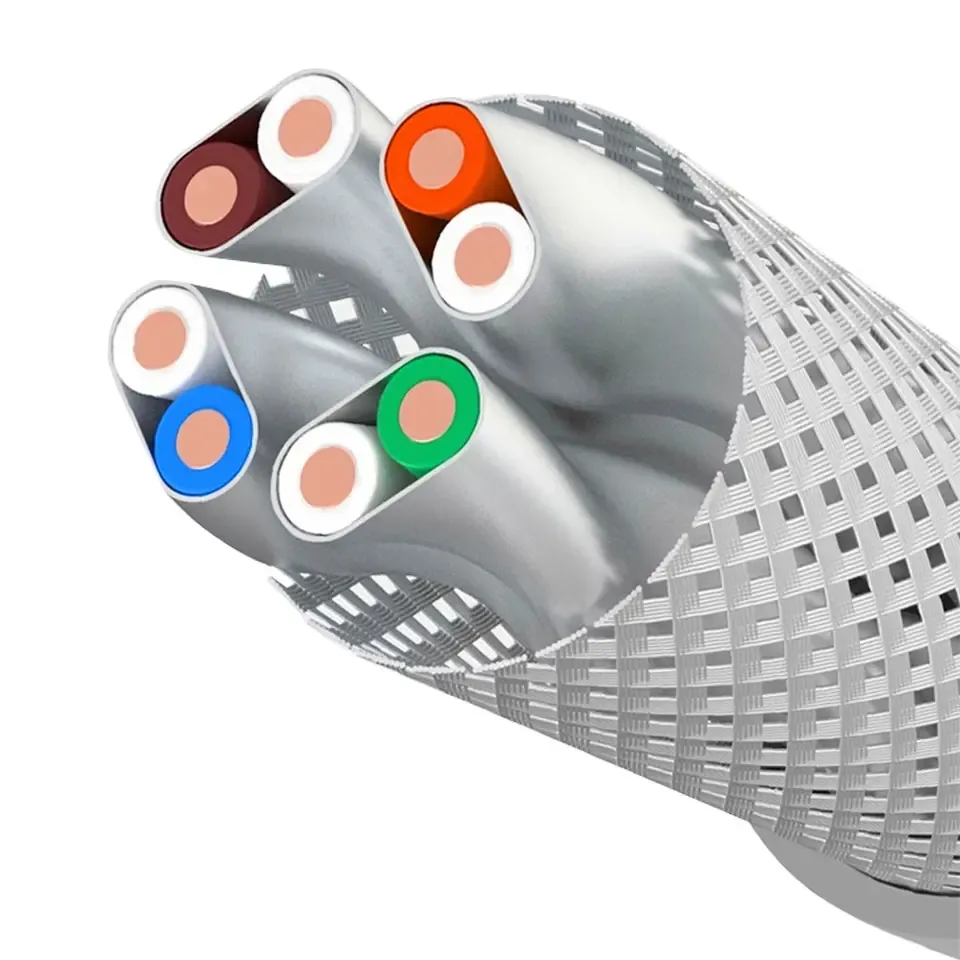

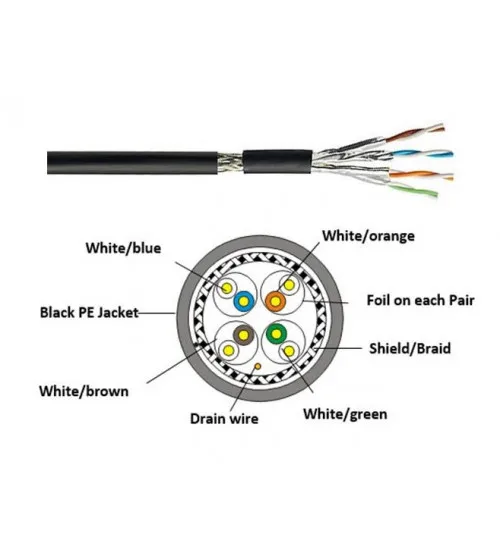

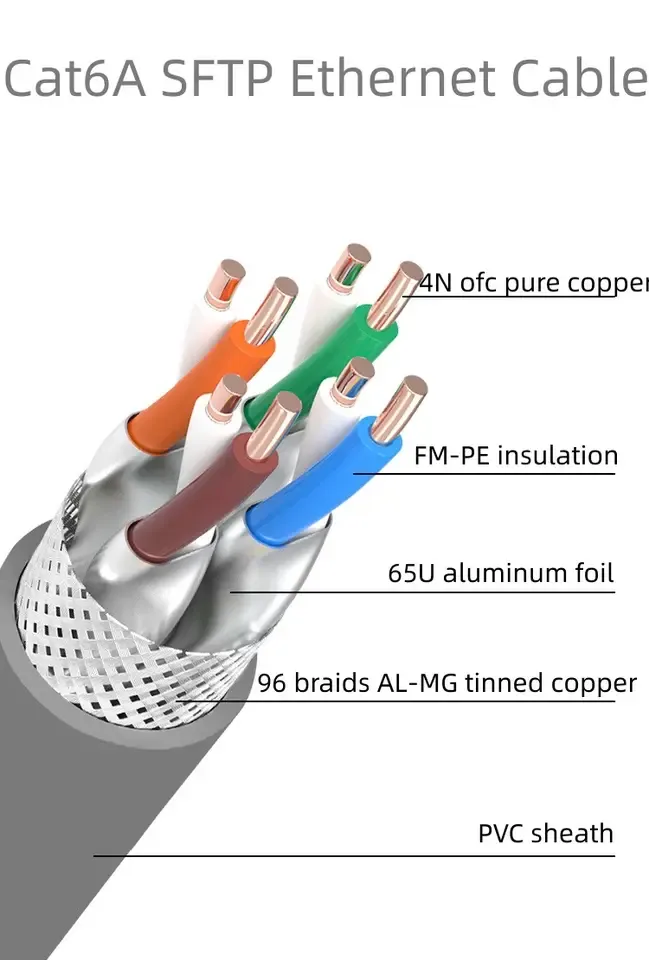

| Structure: | 4P+F+MAB Twisted Pair |
| Conductor: | Solid or stranded bare copper |
| Insulation: | HD-PE |
| Shield: | Mylar |
| Inner Shielded: | AL-Foil 125%(min) Coverage |
| Outer Shielded: | Braiding 80%(min) Coverage |
| Jacket: | PVC orLSZH |
| Rated Temperature: | Temperature: 75℃ |
| lmpedance: | 100±15%Ω |
| Frequency: | 500MHz |
| Reference Standard: | YD/T1019-2001、ISO/IEC 11801、ANSI/TIA/EIA-568B、UL444 |
| Flame Retardancy Standard: | CM、CMR |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
