Fitur
- Unbeatable price, because we are original manufacturer of fig 8 fiber cable
- we can customize cable structure, fiber cores count, length, word printing for you.
- One day produce 2 containers fiber optic cables, shortest lead time for you.
- Self-supporting Aerial
- Low dispersion and attenuation
- Long-distance communication, local trunk line, CATV & computer networks system
- Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and enviromental properties
- With small cable diameter, light cable weight, self-supporting
Spesifikasi Inti

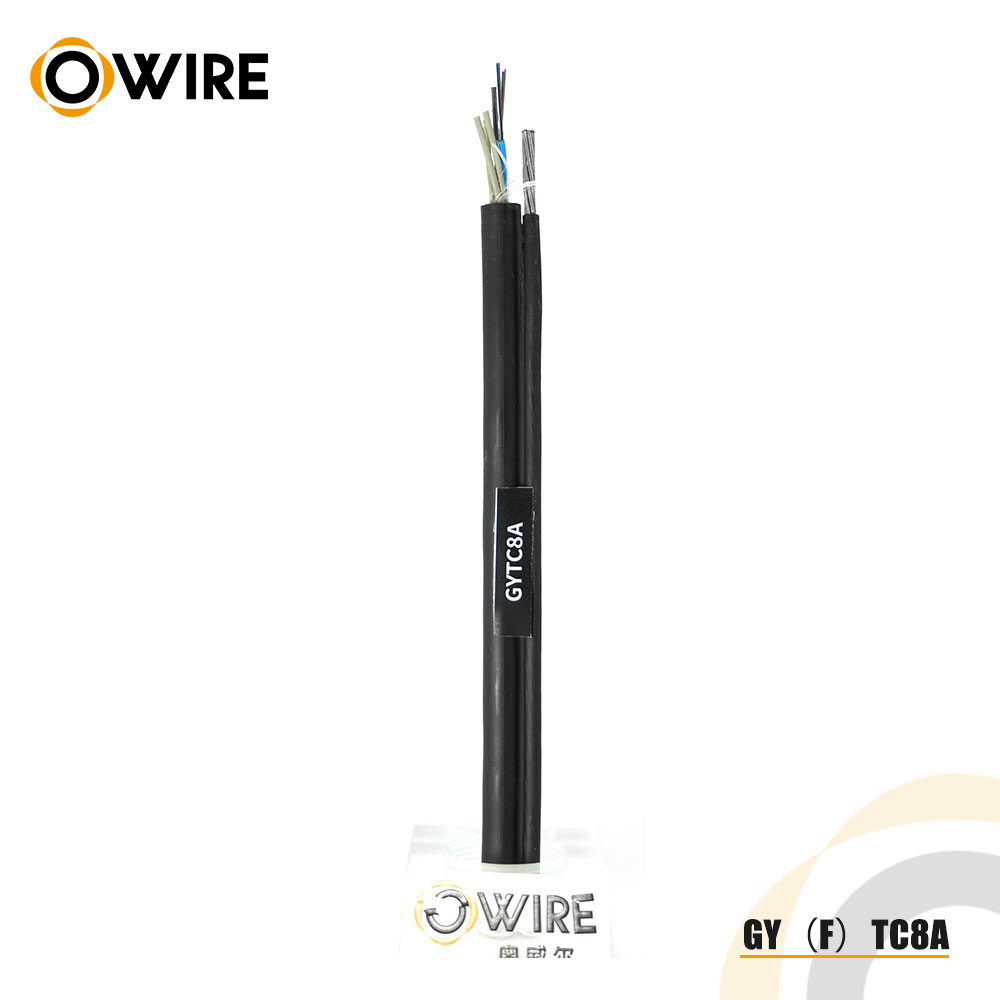

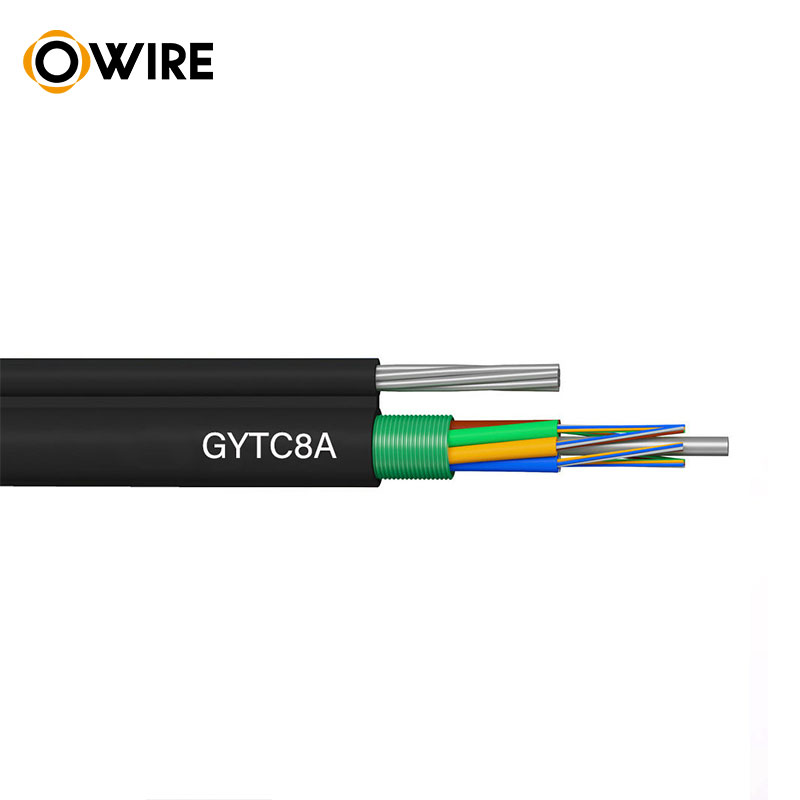

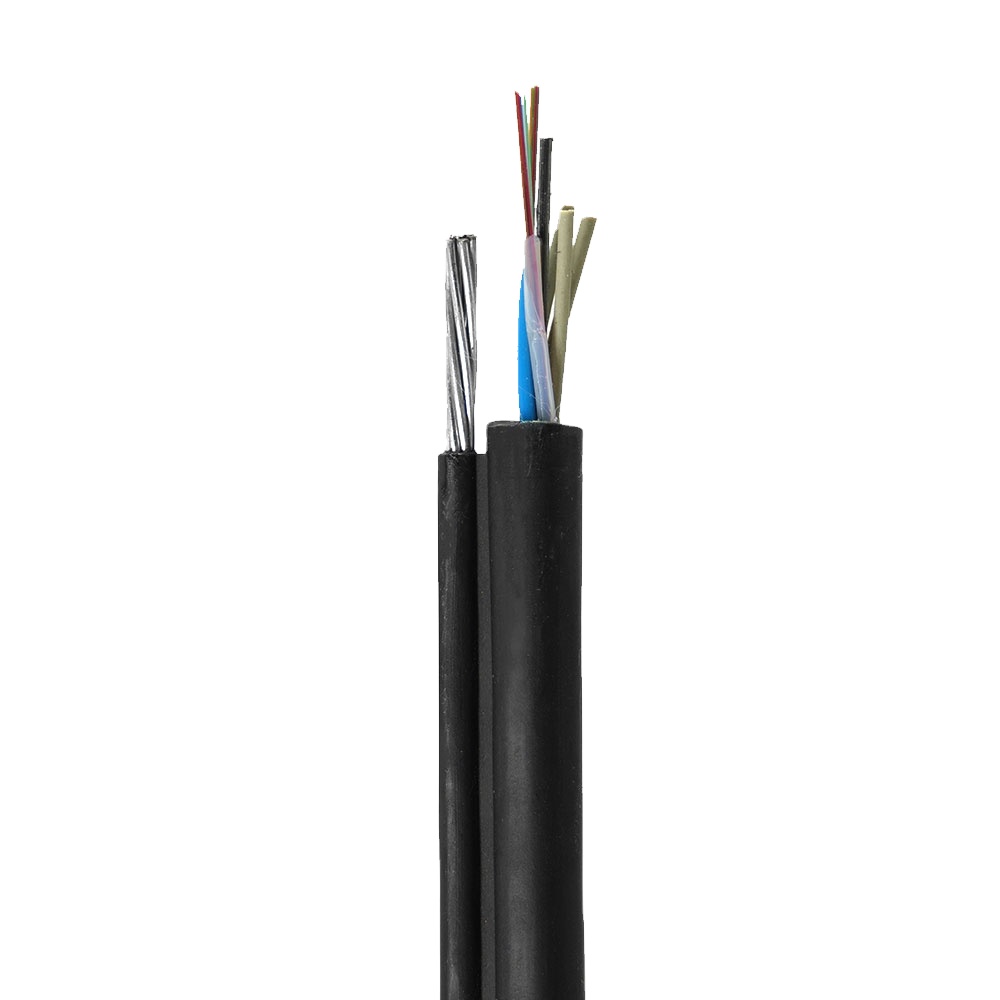

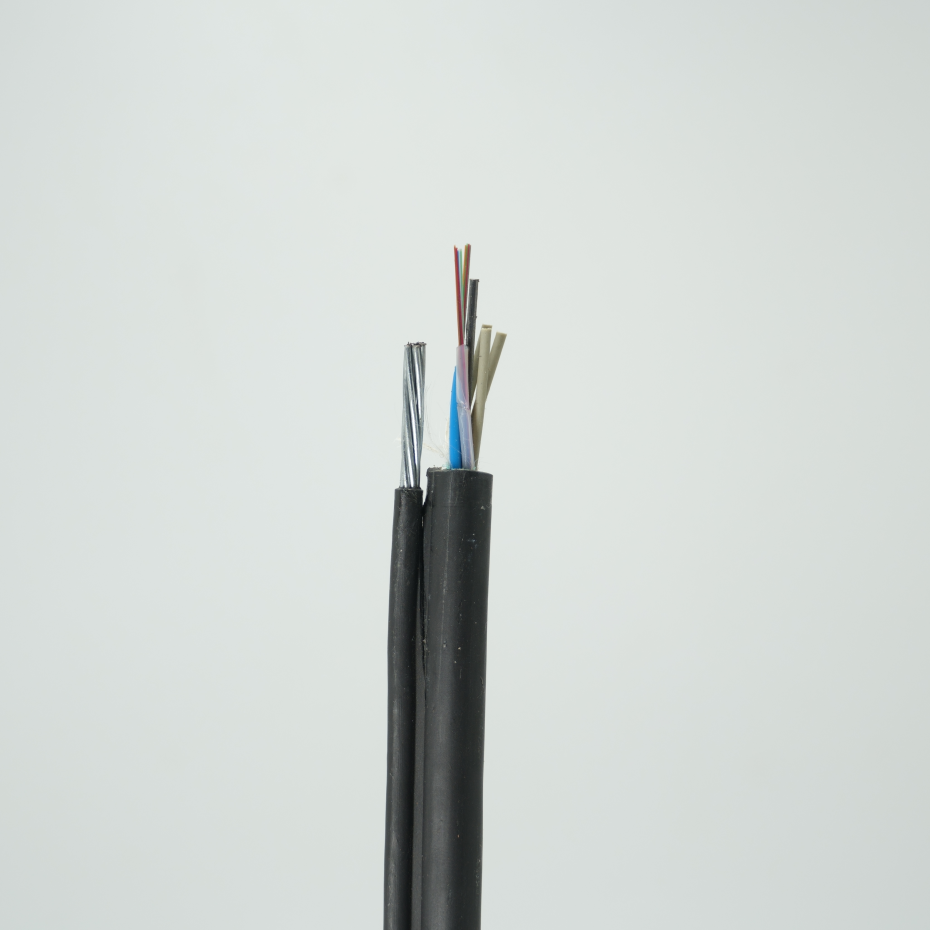

The 250μm fibers are positioned in a loose tube made of a high modulus plastic.The tube is filled with a water-resistant filling compound.The tube is located in the center of the cable,covered with water-blocking yarn or water-blocking tape ,plastic coated corrugated steel tape is applied around the tube.Steel wire or stranded steel wire as self-supporting member,the cable is sheathed by PE material.The cross section of the cable is figure 8.
Structions
Items | Descriptions | |
Optical fiber | Count | 2-288 |
Color | Blue、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua | |
Loose tube | Color | Blue、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua |
Bahan | PBT | |
Infilling | Fiber jelly | |
Possible filler | Bahan | PP |
Color | Natural or Black | |
Messenger member | Bahan | Steel wire or Stranded steel wire |
Center strength member | Bahan | Steel wire or FRP |
Possible armor layer | Bahan | Corrugated steel tape or Aluminum tape |
Thickness of suspension（mm） | ≥1.1 | |
Outer sheath | Bahan | PE |
Color | Black | |
Optical Fiber Characteristics
Single mode
Kategori | G652D （1310nm/1550nm） | G657A1 （1310nm/1550nm） | G657A2 （1310nm/1550nm） | |
Attenuation | Typical | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km |
Max | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | |
Zero dispersion slope | ≤0.091ps/km·nm2 | ≤0.092ps/km·nm2 | ≤0.092ps/km·nm2 | |
Chromatic dispersion（1285-1340nm） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | |
MFD（@1310nm） | 9.2±0.4μm | 8.8±0.4μm | 8.8±0.4μm | |
Cut-off wavelength | ≤1260nm | ≤1260nm | ≤1260nm | |
Min bending Radius | 16mm | 10mm | 7.5mm | |
Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Multi mode
Kategori | 62.5/125μm （850nm/1300nm） | 50/125μm （850nm/1300nm） | BIOM3 （850nm/1300nm） | BIOM4 （850nm/1300nm） | |
Attenuation | Typical | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km |
Max | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | |
Bandwidth（MHz·km） | ≥200/≥500 | ≥500/≥500 | ≥1500/≥500 | ≥3500/≥500 | |
Effective mode bandwidth（MHz·km） | —-/—- | —-/—- | ≥2000/—- | ≥4700/—- | |
Min bending Radius（mm） | 30 | 30 | 7.5 | 7.5 | |
Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Mechanical and Environmental performance：
Items | Short-term | Long-term |
Max allowed tension（MAT） | ≥3000N | |
Crush resistance | 1000N/100mm | 300N/100mm |
Min bending radius(“H” is the height of the cable) | Static：10H | |
Dynamic：20H | ||
Installation temperature | -20℃～﹢60℃ | |
Operation temperature | -40℃～﹢70℃ | |
The mechanical properties of other optical fibers and optical cables shall meet the international standards of IEC60793 or IEC60794 | ||
Pertanyaan Umum
Ya. Kami adalah produsen nyata dengan lebih dari 500 staf.
Sejak tahun 2001.
Ya, pesanan kecil tersedia. Kami mendukung proyek baru pelanggan kami karena kami tahu bisnis selalu dimulai dari pesanan kecil.
10 tahun untuk kabel Lan, 25 tahun untuk kabel serat optik
ISO9001, SGS, UL, CPR, CE, RoHs
Biasanya dalam 10-15 hari kerja
Kabel Lan, keluaran tahunan kami adalah 500000*305m
Kabel Serat Optik Luar Ruangan/Dalam Ruangan, hasil tahunan kami adalah 8.000.000 KM;
Kabel FTTH/FTTX/FTTA, 6.000.000 KM per tahun;
Patch Cord/Pigtails, 12.400.000 Potongan per tahun.
T/T, L/C, Western Union dan Ali membayar.
Ya. Kami menyediakan layanan OEM & ODM. Anda dapat mengirimkan gambar Anda kepada kami atau kami membuat desain oleh tim profesional kami yang disesuaikan.
