Feature
- Enhanced tensile strength due to stranded wires, optimizing self-supporting capabilities and reducing installation costs.
- Robust mechanical and temperature performance.
- Hydrolysis-resistant high-strength loose tube.
- Tube filling compound specifically designed for optimal fiber protection.
- Filling compound in the loose tube;
- Complete core filling of the cable;
Core Specifications

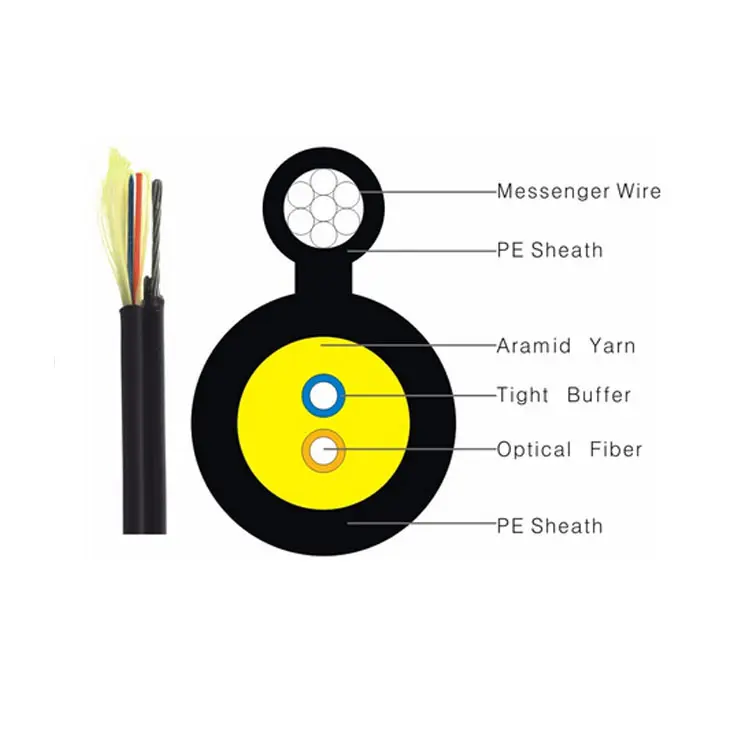

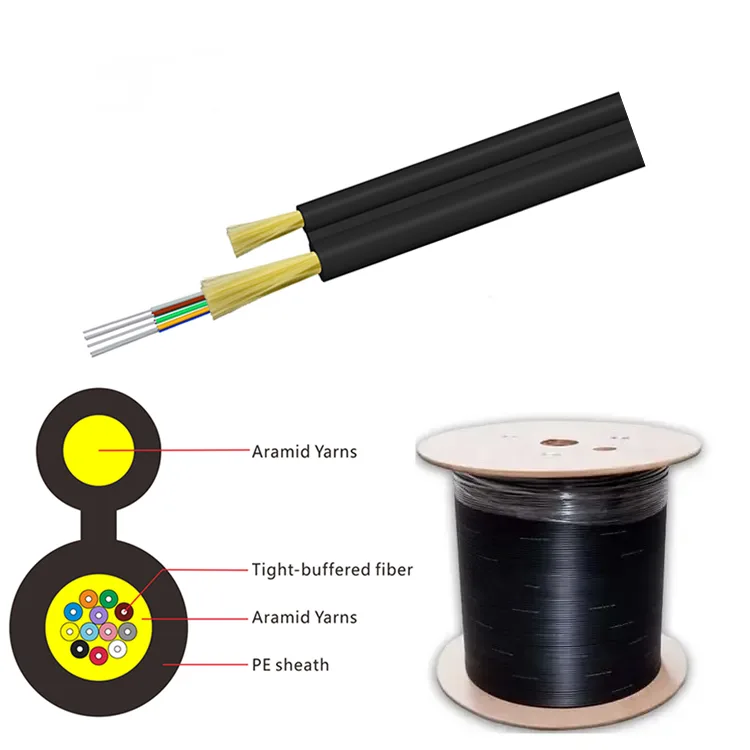

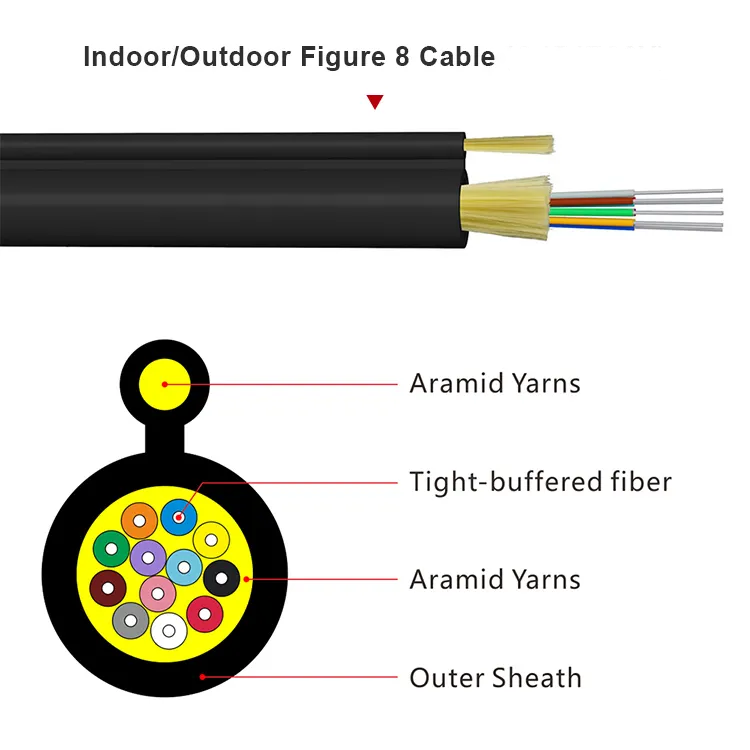

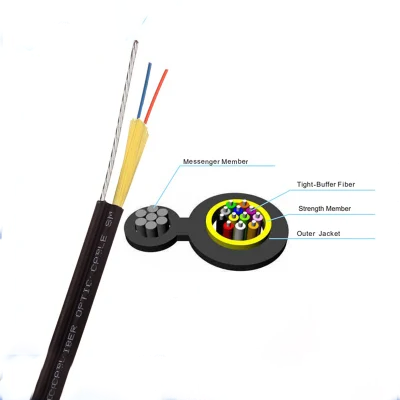

Structure
Optical fiber | Count | 1 | 2 | 4 | 4 | |
カテゴリ | SM/MM | |||||
Tight buffer fiber | Diameter(mm) | 0.6±0.05 / 0.85±0.05 | 0.6±0.05 | 0.85±0.05 | ||
Material | LSZH/PVC | |||||
Messenger member | Phosphating steel wire / Galvanized steel wire / Stranded galvanized steel wire | |||||
Strength member | Aramid yarn | |||||
Outer sheath | Color | Black | ||||
Diameter(mm) | (3.5±0.2)x(6.5±0.3) | 5.0±0.2)x(8.0±0.3) | ||||
Thickness(mm) | ≥0.65 | 0.8±0.1 | ||||
Material | LSZH | |||||
- Optical characteristics：
Single mode
カテゴリ | G652D （1310nm/1550nm） | G657A1 （1310nm/1550nm） | G657A2 （1310nm/1550nm） | |
Attenuation | Typical | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km |
Max | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | |
Zero dispersion slope | ≤0.091ps/km·nm2 | ≤0.092ps/km·nm2 | ≤0.092ps/km·nm2 | |
Chromatic dispersion（1285-1340nm） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | |
MFD（@1310nm） | 9.2±0.4μm | 8.8±0.4μm | 8.8±0.4μm | |
Cut-off wavelength | ≤1260nm | ≤1260nm | ≤1260nm | |
Min bending Radius | 16mm | 10mm | 7.5mm | |
Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Multi mode
カテゴリ | 62.5/125μm （850nm/1300nm） | 50/125μm （850nm/1300nm） | BIOM3 （850nm/1300nm） | BIOM4 （850nm/1300nm） | |
Attenuation | Typical | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km |
Max | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | |
Bandwidth（MHz·km） | ≥200/≥500 | ≥500/≥500 | ≥1500/≥500 | ≥3500/≥500 | |
Effective mode bandwidth（MHz·km） | —-/—- | —-/—- | ≥2000/—- | ≥4700/—- | |
Min bending Radius（mm） | 30 | 30 | 7.5 | 7.5 | |
Cladding diameter
| 125±1.0μm | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Mechanical and Environmental performance：
Items | Short-term | Long-term |
Tensile performance | 800N | 400N |
Crush resistance | 1000N/100mm | 300N/100mm |
Min bending radius(“H” is the height of the cable) | Static：10H | |
Dynamic：20H | ||
Installation temperature | -10℃～﹢50℃ | |
Operating temperature | -20℃～﹢60℃ | |
The mechanical properties of other optical fibers and optical cables shall meet the international standards of IEC60793 or IEC60794 | ||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
