Feature
- we can custom fiber Patch cord cable structure, fiber count, connector types, length, package for you.
- price unbeatable
- Shortest delivery time
- Door to door delivery to all over the world
- LC, SC, ST, FC, LSH,MTRJ, MU connectors are available.
- OS1, OS2, OM1, OM2, OM3, OM4,OM5 are available.
Core Specifications

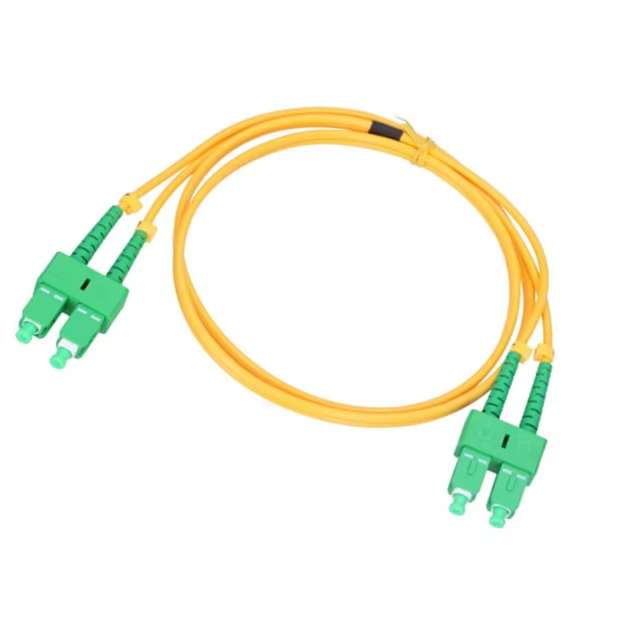

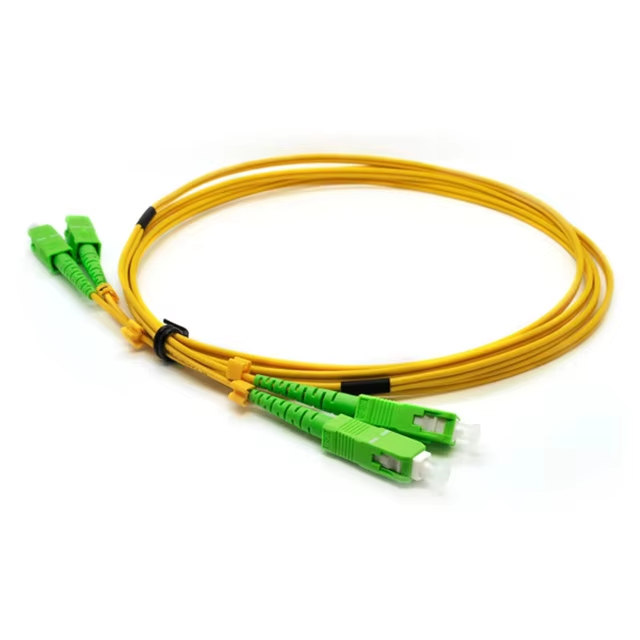

- High-quality and Insensitive SC to SC Fiber Grade: G.657.A2 Patch Cable Single mode 9/125 OS2 fiber is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, LAN, SAN, commercial, 10GBASE-L (1310 nm), 10GBASE-E (1550 nm), 1000BASE-LX (1300 nm) and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services.
- This Fiber OS2 9/125 FC/FC Fiber Patch Cord conforms with TIA/EIA 492AAAA and IEC60793-2-10 A1b standards and complies with RoHS specifications.
- This SM fiber has an yellow color jacket with a 3.0mm diameter. OS2 cables have a 0.36 dB/km attenuation at 1550 nm – 0.22 dB/km at 1310 nm
- This FC to FC Single mode Duplex OS2 fiber patch cords operate at -40ºC to +75ºC and have a minimum installation bending radius of 5.0 cm and a minimum long term bending radius of 3 cm.
- Reduced bend loss sensitivity versus standard telecom fiber patch cables: Optimal for Flexible Installations in indoor cable set-ups they could now be used in walls, ceilings, conduits (FTTH) and other bumpy surfaces without worrying about fiber bends.
Features:
- Wavelengths: 1310 and 1550
- Yellow Jacket
- Bend Radius: Insensitive G.657.A2/B2 (7.5mm)
- Cable Jacket: 3.0mm PVC
- Operating Temperature: -4 to 158F (-20 to +70 C)
- Standard Zip Cord
- Core: OS2 Bend Insensitive Fiber – 9/125 Microns
- Fiber-Grade: G.657.A2
- Polarity: A(Tx) to B(Rx)
- Polish: UPC to UPC
- OS2 9/125 fiber conforms to ITU-657 A2/B2
- Multiple Sizes Available: (1m,3m,5m,10m,20m, custom)
Specification
| Parameter | Unit | FC,SC,LC | ST,MU,MTRJ, | |||
| SM | MM | SM | MM | |||
| UPC | APC | UPC | UPC | UPC | ||
| Insertion Loss | dB | ≤0.2 | ≤0.2 | |||
| Return Loss | dB | ≥55 | ≥65 | ≥35 | ≥55 | ≥35 |
| Repeatability | dB | IL≤0.2 RL≥5 | IL≤0.1 | IL≤0.1 | IL≤0.1 | |
| Durability | dB | IL≤0.2 RL≥5 | IL≤0.1 | IL≤0.1 | IL≤0.1 | |
| Exchangeability | dB | IL≤0.2 RL≥5 | IL≤0.1 | IL≤0.1 | IL≤0.1 | |
| Compressive Strength | N | F>300 | ||||
| Operation life Span | Times | n>1000 | ||||
| Operation Temperature | ℃ | -40~75 | ||||
| Storage Temperature | ℃ | -45~85 | ||||
| Cable Diameter | cm | 0.9,2.0,3.0 or specified | ||||
Applications:
- CATV,FTTH
- データセンター
- Surveillance System
- Ethernet LAN Cabling
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
