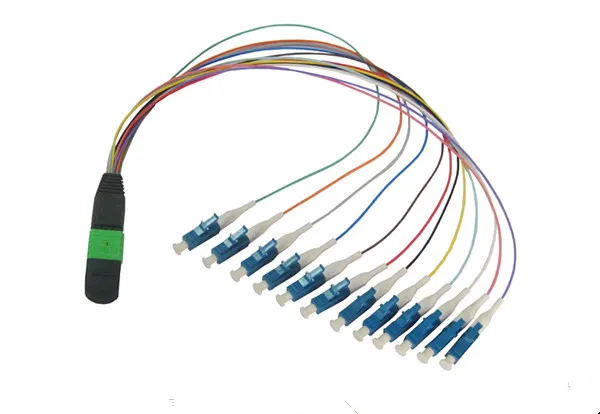

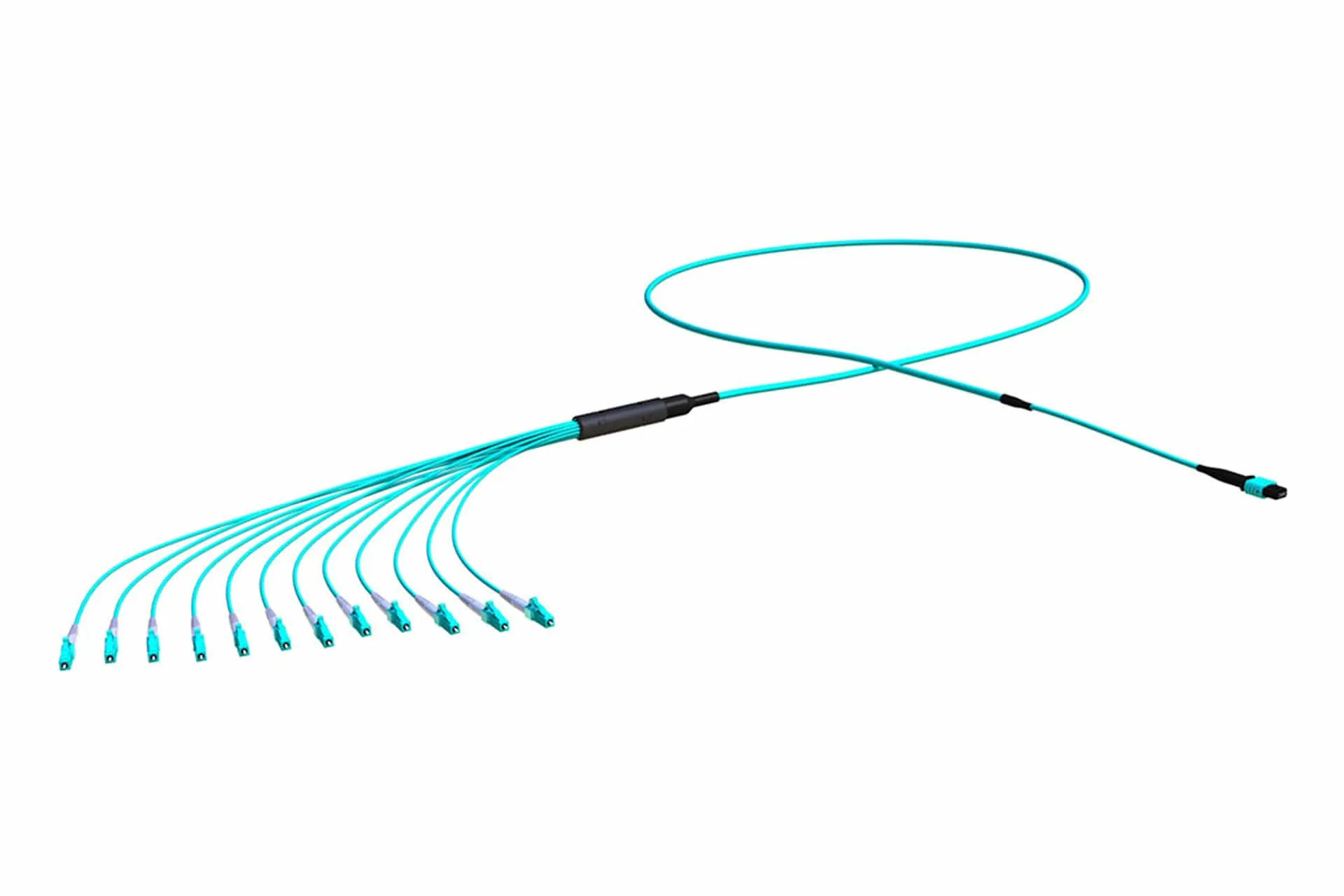

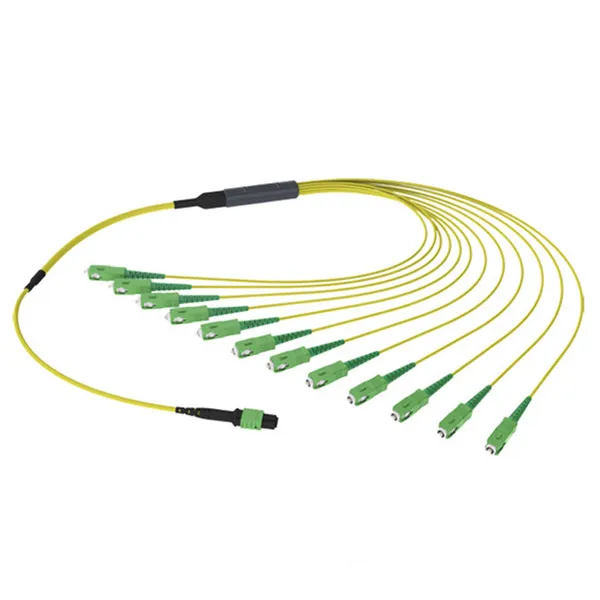

Owire MPO/MTP Fan-out Assembly

MPO / MTP fan-out cables are designed to use fan-out kit convert to standard optical connectors, harness cables are designed to fan-out standard optical connectors directly with 0.9mm loose tube. Input use MTP/MPO high density multi-fiber connectors and output usually with LC,SC,FC,E2000 and so on. It fit for different installation environment and easy to install between different transmission equipment or different racks and cassette modules.

Feature

Core Specifications

Connector Type	12-Fiber Or 24Fiber MPO/MTP (non-pinned)
Polish	PC(MM); APC(SM)
Housing Colour	MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow)
Insertion Loss, Typical (MTP/MPO)	≤ 0.10 dB
Insertion loss, max. (MTP/MPO)	≤ 0.3 dB
Return loss (MTP/MPO SM)	PC >55dB; APC> 60dB
Durability(500 Matings)	< 0.2dB

Fiber Type	OS2, OM1, OM2, OM3, OM4 OM5
Fiber Count	12,24,48,72,96,144 cores
Fiber Attenuation dB (OS2)	≤0.38 Max ≤0.34Typ(1310nm) ≤0.25 Max ≤0.19Typ(1550nm)
Fiber Attenuation dB (OM1)	≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤1.2Typ(1300nm)
Fiber Attenuation dB (OM2)	≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation dB (OM3)	≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation dB (OM4)	≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Min.Bandwidth:Overfilled Launch[Mhz-km]	OM1≥200(850nm) ≥500(1300nm) OM2≥500(850nm) ≥500(1300nm) OM3≥1500(850nm)≥500(1300nm)OM4≥3500(850nm) ≥500(1300nm)
Min.Bandwidth:Laser Effective Modal Bandwidth [Mhz-km]
Min.Bandwidth:Laser Effective Modal Bandwidth [Mhz-km]	OM3 ≥2000(850nm) OM4 ≥4700(850nm)
Outer diameter	12fiber:3.0 or 5.5mm ; 24fiber:3.0 or 5.5mm
Outer jacket Colour	OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Purple or Aqua)
Outer jacket material	LSZH,OFNP,OFNR
Tensile strength	>500N
Operating Temperature	-40 ~ +85°C

FAQ

1.Are you the real manufacturer?

Yes. We are the real manufacturer with more than 500 staff.

2.How many years have you been in the field of fiber optics ?

Since 2001.

3.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

10 years for Lan cable , 25 years for fiber optic cable

5.Which kind of certification you have ?

ISO9001, SGS, UL, CPR, CE, RoHs

6.What is your delivery time?

Usually within 10-15 working days

7.What about your annual production capacity?

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8.What is your payment way?

T/T, L/C, Western Union and Ali pay.

9.Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.

We are a manufacturer of Multimode Fiber Optic MPO Loopback Cable. We supply MPO MTP cable in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.

2-144 core Tight buffer Aramid yarn Multi core single mode multimode Distribution fiber optic cable GJPFJH / GJPFJV-(2-144)C

Distribution optical fiber cable use several 900μm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,and the cable is sheathed by a PVC or LSZH(Low smoke,Zero halogen,Flame-retardant)material.

Indoor / Outdoor Armored Anti-Rodent patch cord LC/SC/FC/ST Duplex Single mode Fiber Optic Cable Patch Cord

We are a Indoor / Outdoor Armored Anti-Rodent patch cord LC/SC/FC/ST Duplex Single mode Fiber Optic Cable Patch Cord Manufacturer. We supply fiber optic patch cord cables in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.
