Innovative Approach Enhances Brillouin Optical Fiber Sensing for Infrastructure Monitoring

Brillouin scattering, a phenomenon where light inelastically scatters due to thermally induced acoustic vibrations, plays a crucial role in optical fiber sensing technology. This technology is widely used to measure temperature and strain distributions by analyzing how light scatters under various stimuli. One particularly effective method in this realm is Brillouin optical correlation-domain reflectometry (BOCDR), known for its high spatial resolution and ability to access multiple measurement points from a single end.

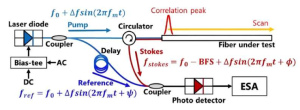

Innovative Approach Enhances Brillouin Optical Fiber Sensing for Infrastructure Monitoring

The spatial resolution in BOCDR depends on the modulation amplitude and frequency of the light. Traditionally, measuring this modulation amplitude accurately has required expensive and bulky equipment like optical spectral analyzers or heterodyne detection systems. These requirements complicate the experimental setup and escalate costs, posing a significant challenge for widespread adoption.

Addressing this issue, a team of researchers from Japan, led by Associate Professor Heeyoung Lee from Shibaura Institute of Technology (SIT), along with Keita Kikuchi (SIT) and Yosuke Mizuno from Yokohama National University, has developed an innovative method to estimate modulation amplitude without additional equipment. Their findings were published in Scientific Reports on April 6, 2024.

Dr. Lee states, “We have devised a method to accurately estimate the modulation amplitude that determines spatial resolution in BOCDR, circumventing the need for additional equipment or modifications to the experimental setup.”

The new approach leverages Rayleigh scattering, where light scatters when interacting with particles smaller than its wavelength, to estimate the modulation amplitude. By analyzing the spectral width of noise induced by Rayleigh scattering, the researchers could measure the modulation amplitude independent of the optical fiber length while achieving high-frequency resolution. This method utilizes only the BOCDR setup along with an electrical spectrum analyzer to measure Rayleigh noise components, making it straightforward and convenient.

Dr. Lee highlights the broader impact of their work, noting, “Aging and seismic damage to civil infrastructure pose significant societal challenges. Optical fiber sensing technology provides a promising solution for monitoring the structural integrity of these infrastructures.”

By embedding long optical fibers within structures, it is possible to detect strain and temperature distributions along the fibers. Brillouin scattering offers highly sensitive and stable data for sensing these parameters. The new method developed by the research team simplifies the process, reduces costs, and eliminates the need for additional devices, thereby enhancing the practical application of BOCDR in ensuring the safety and reliability of critical infrastructure.

In summary, this innovative approach represents a significant advancement in the field of optical fiber sensing, promising to enhance the monitoring and maintenance of vital infrastructure, thereby addressing key societal challenges related to infrastructure integrity and safety.
