OPGW Fiber Optic Cable Manufacturer

Due to we are original OPGW Fiber Optic Cable Manufacturer, so you can custom any part of fiber optical cable, such as structure, length, fiber core count, materials, package etc.

OPGW Feature:

(1) High-voltage lines above 110kV (generally over 250m) with large spans;

(2) Easy maintenance, solving the problem of crossing lines, with mechanical properties meeting the requirements for large crossings;

(3) The outer layer of the OPGW is metallic armor, which is not affected by high-voltage electric corrosion and degradation;

(4) The power supply must be cut off during OPGW construction, and the power loss is significant. Therefore, new OPGW should be used for high-voltage lines above 110kV;

(5) In the performance indicators of OPGW, the larger the short-circuit current, the more good conductors are needed as armor, and the corresponding tensile strength decreases. Under certain strength conditions, the only way to increase the short-circuit current capacity is to increase the metal cross-sectional area, which leads to an increase in the outer diameter and weight of the optical cable, raising safety issues related to the strength of the towers.

There are two types of composite cable structures:

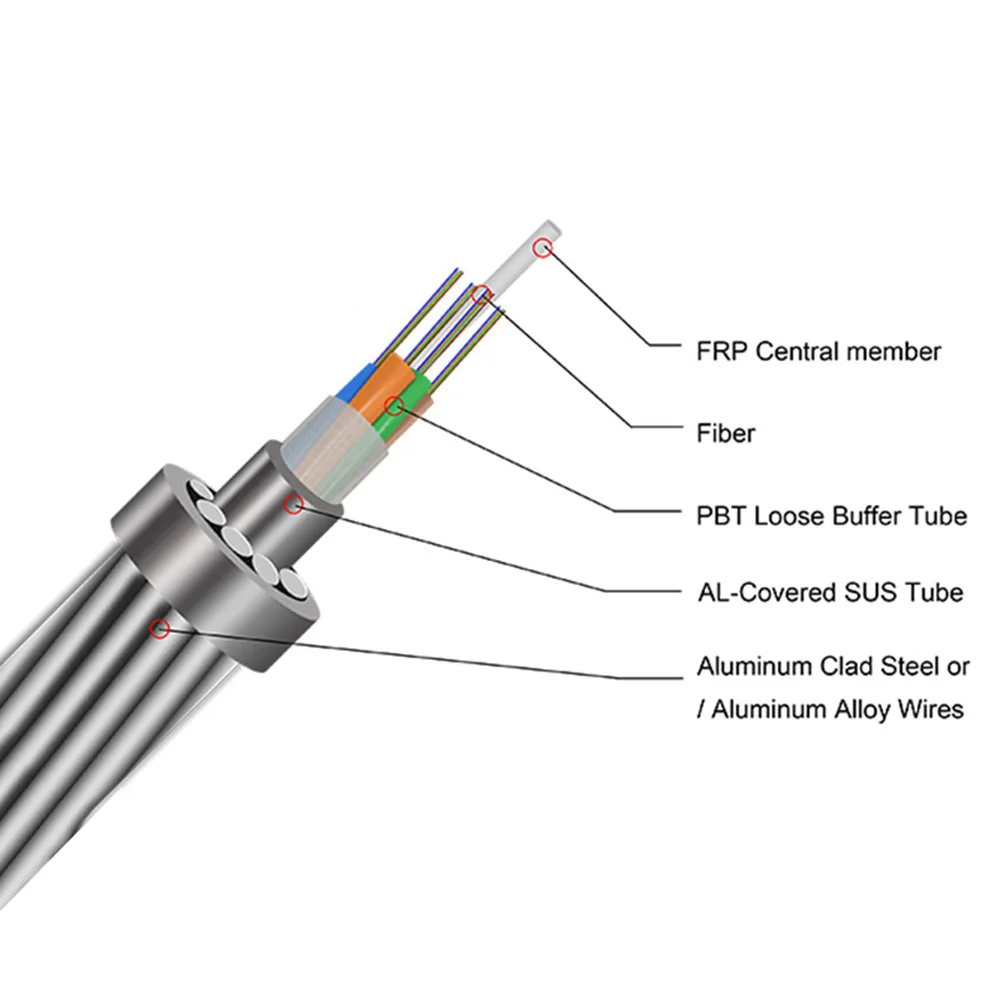

Central Loose Tube Type: The optical fibers are loosely placed in a sealed, water-blocking stainless steel tube filled with water-blocking compound. Under different environmental conditions, the steel tube provides protection for the optical fibers during operation and insulation processes. An aluminum layer outside the tube is optional. The stainless steel is located at the center of the optical cable, protected by one or more layers of aluminum-clad steel and aluminum-wrapped wires. The aluminum-clad steel wires are arranged in a trapezoidal distribution around the optical unit to form a compact structure. The metal wires provide mechanical strength to withstand harsh installation and operating conditions and control temperature rise under short-circuit conditions to achieve conductivity.

OPGW model cables can accommodate up to 48 optical fibers. Despite the high number of optical fibers in one tube, each fiber can be clearly distinguished using a fiber identification system that includes color and numerical ring marks. Its compact design features high mechanical strength and fault current ratings within a small diameter, allowing for excellent vertical tensile performance even with a smaller diameter.

Layer Stranded Type: The optical fibers are loosely placed in a sealed, water-blocking stainless steel tube filled with water-blocking compound. Two or three stainless steel optical tubes are distributed in a helical shape within the multilayer optical cable.

Layer stranded optical cables are mostly used in cases requiring a very high number of optical fibers count, generally more than 48, with a maximum of 144. Layer stranded optical cables can meet the requirements of large spans and high current capacities.

Application

OPGW composite cables are installed on transmission and distribution lines to transmit voice, data, and video communication signals. They are especially used in lightning waveform monitors, overhead test lines, data maintenance for information systems, power lines for protection systems, power lines for operating systems, and monitoring systems for unmanned monitoring stations.

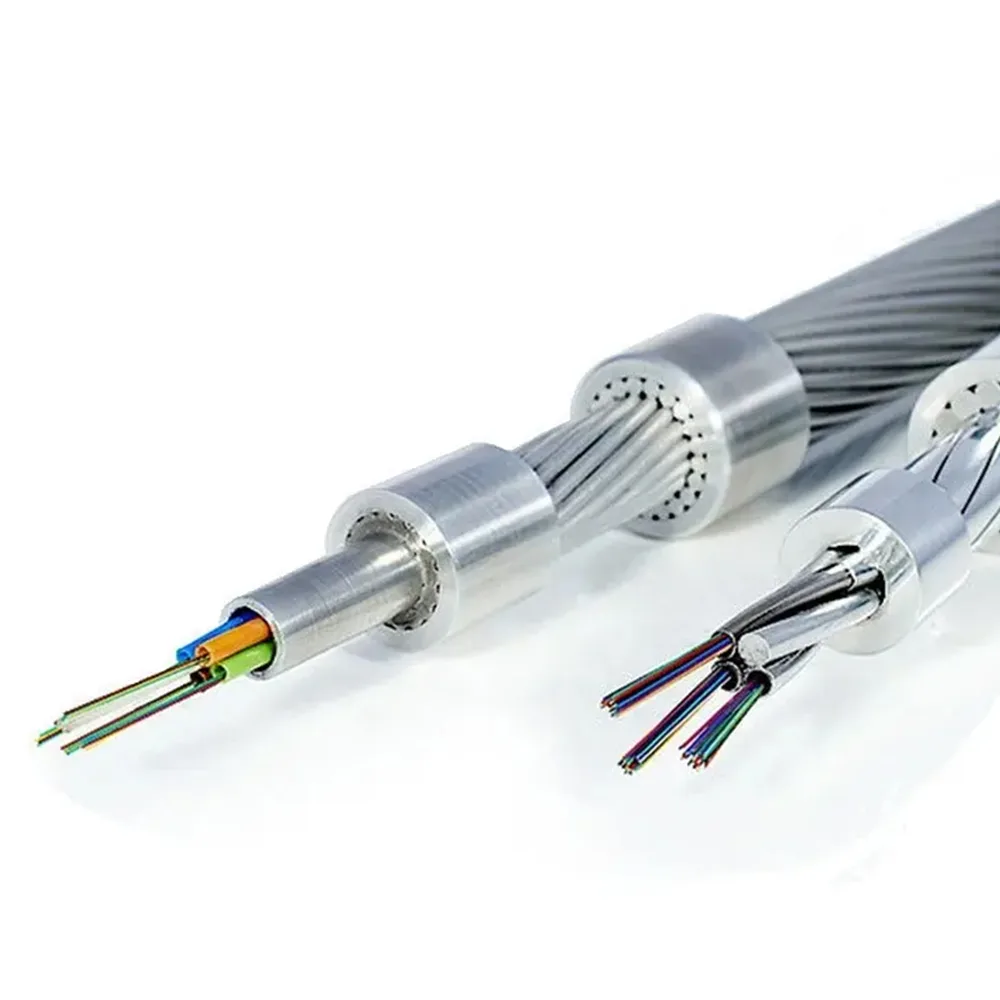

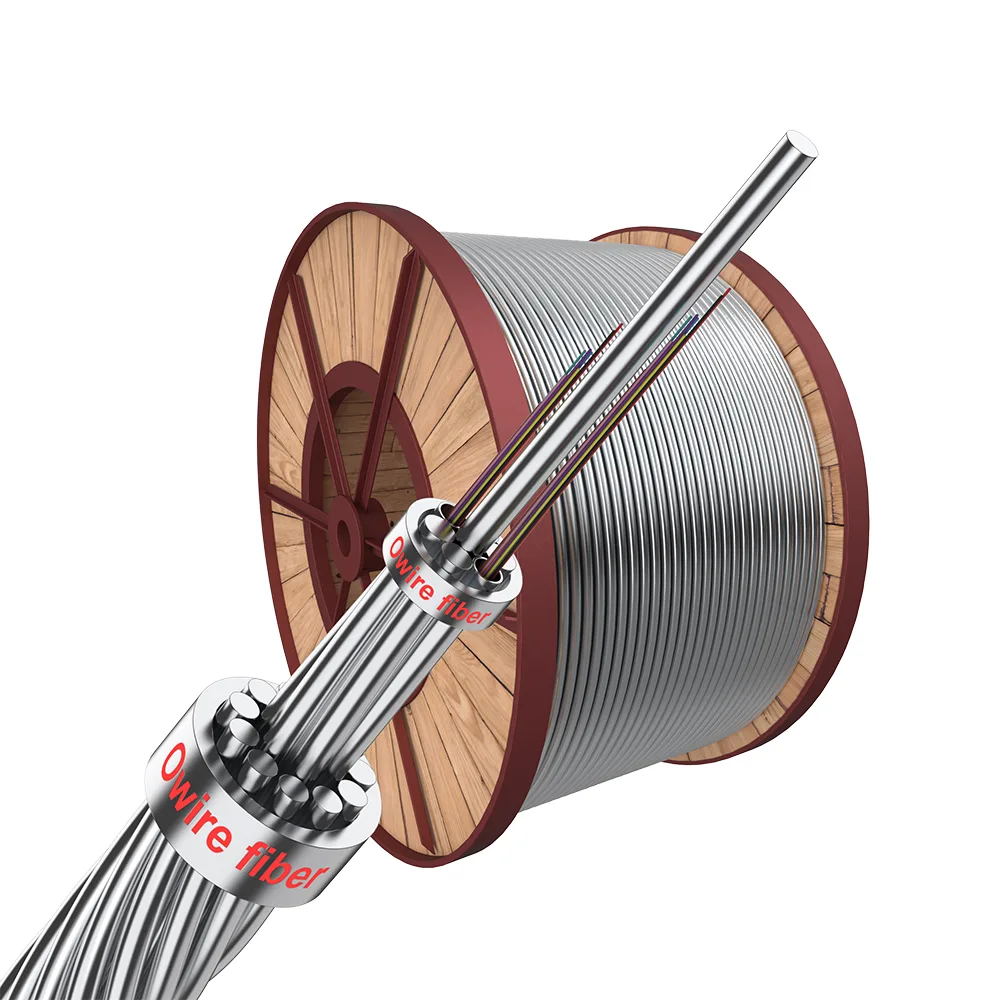

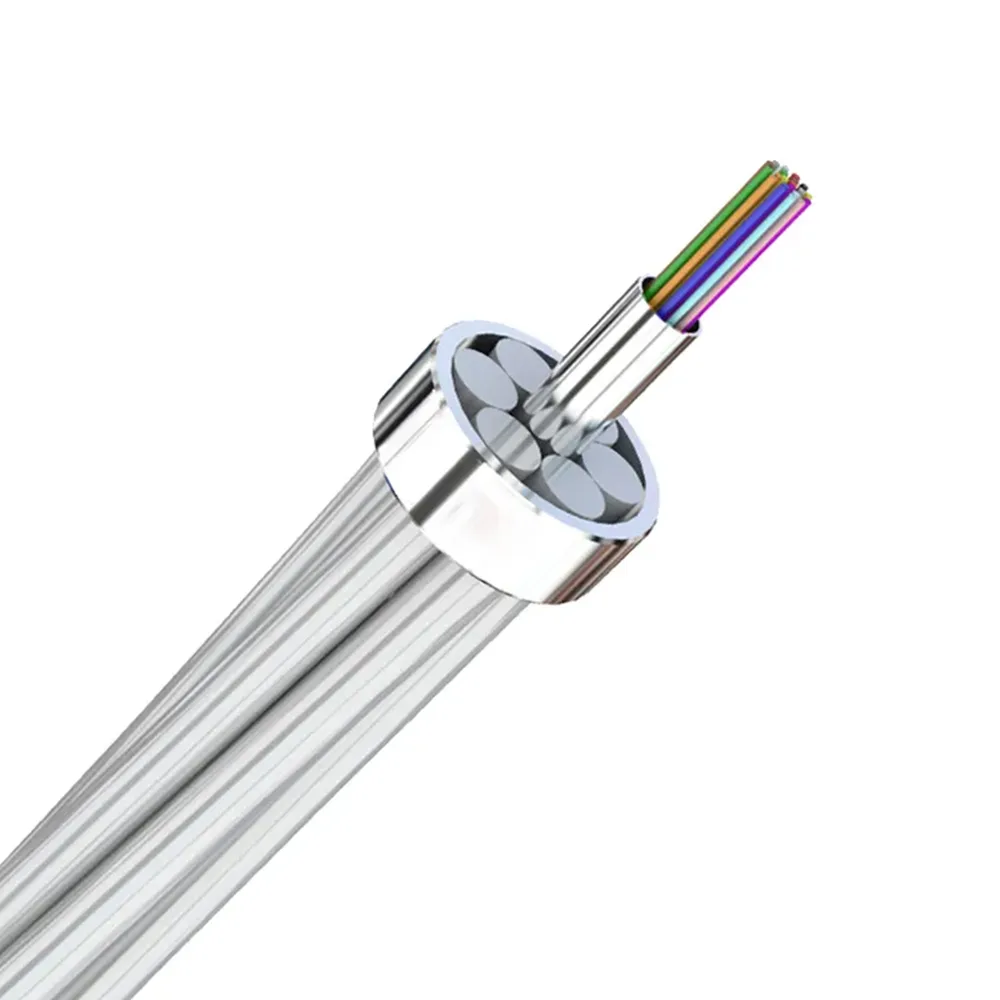

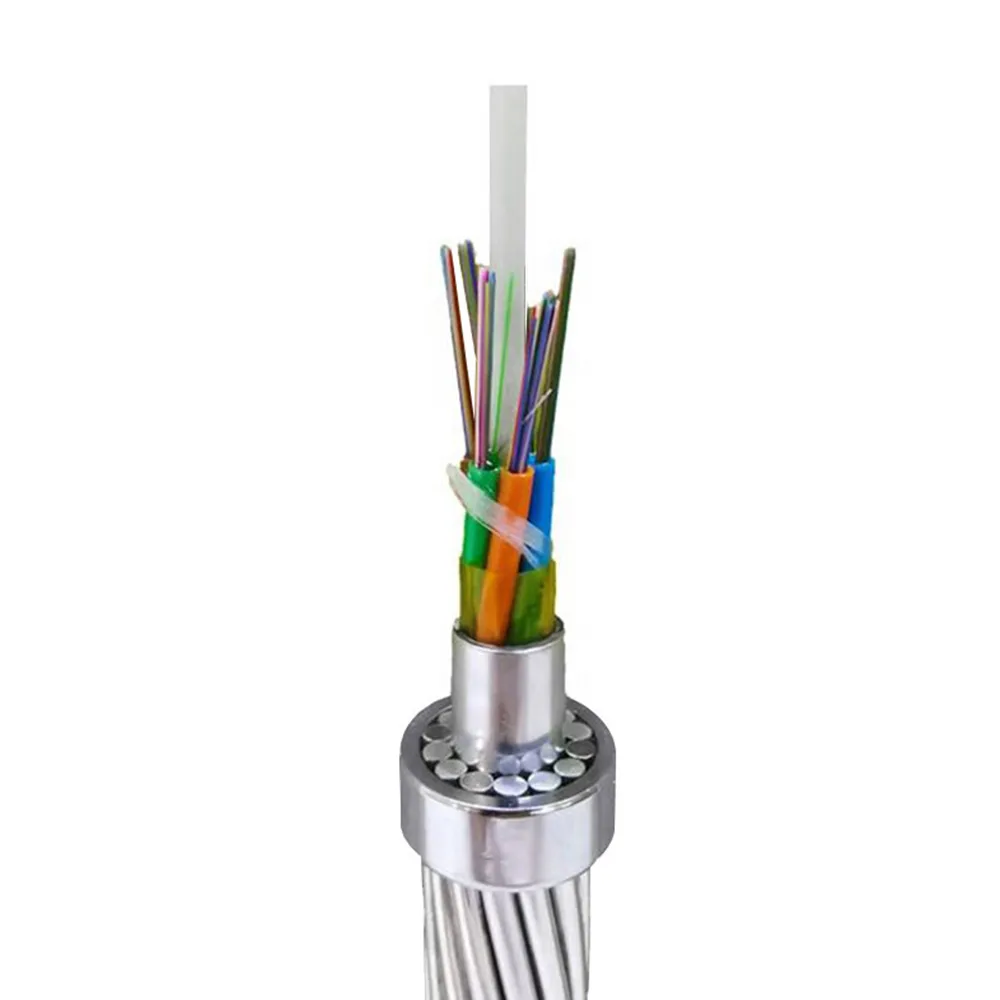

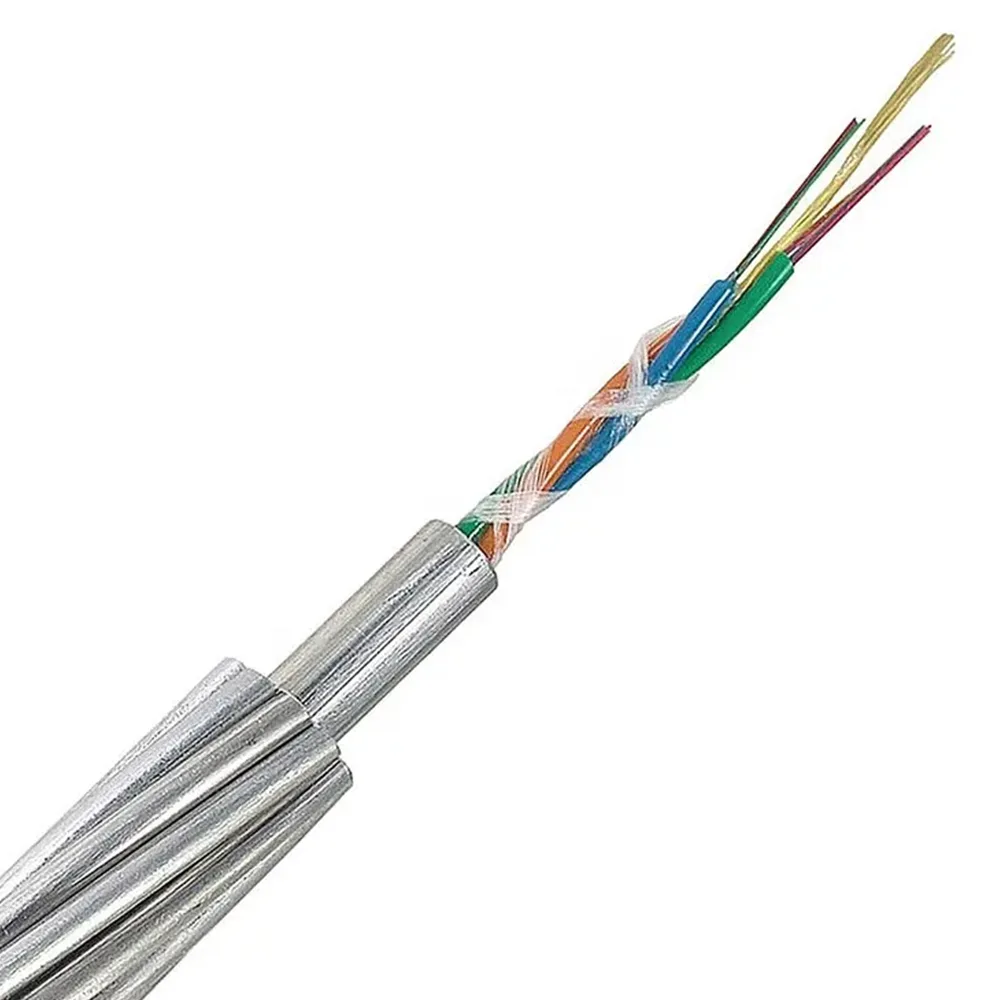

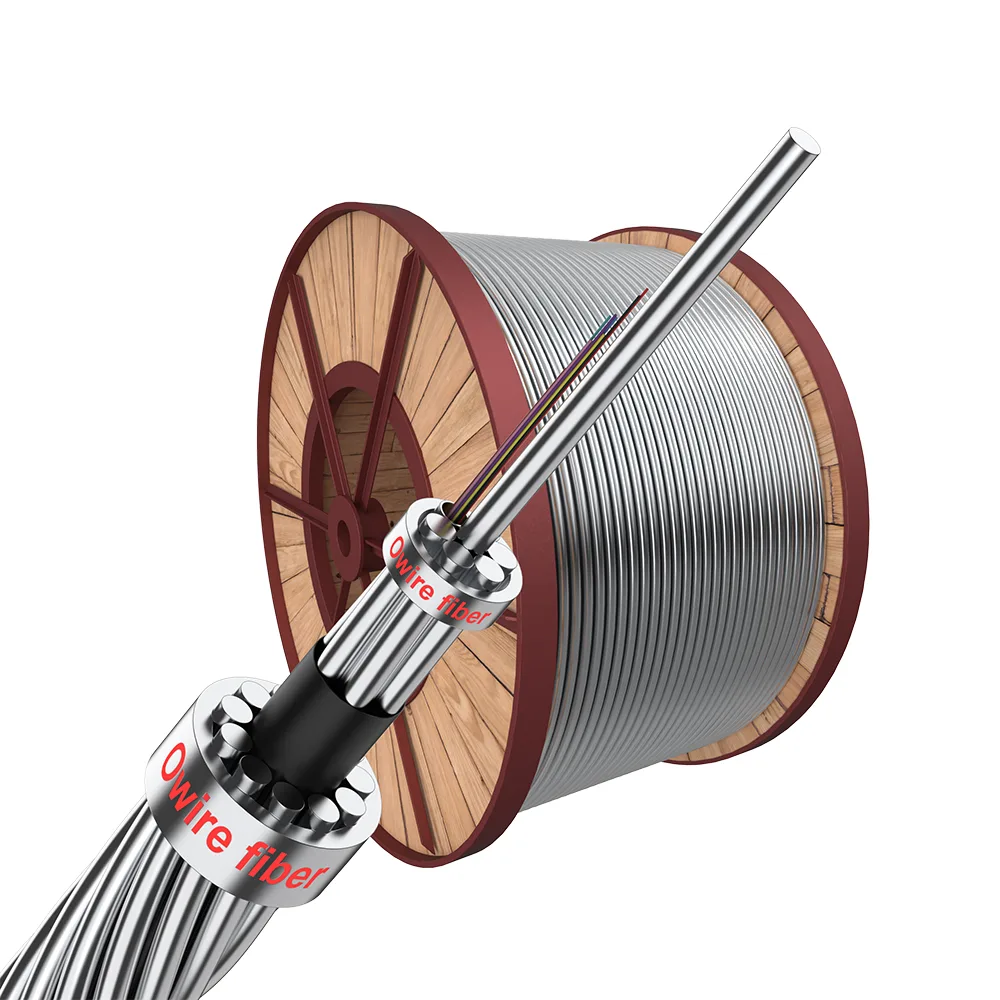

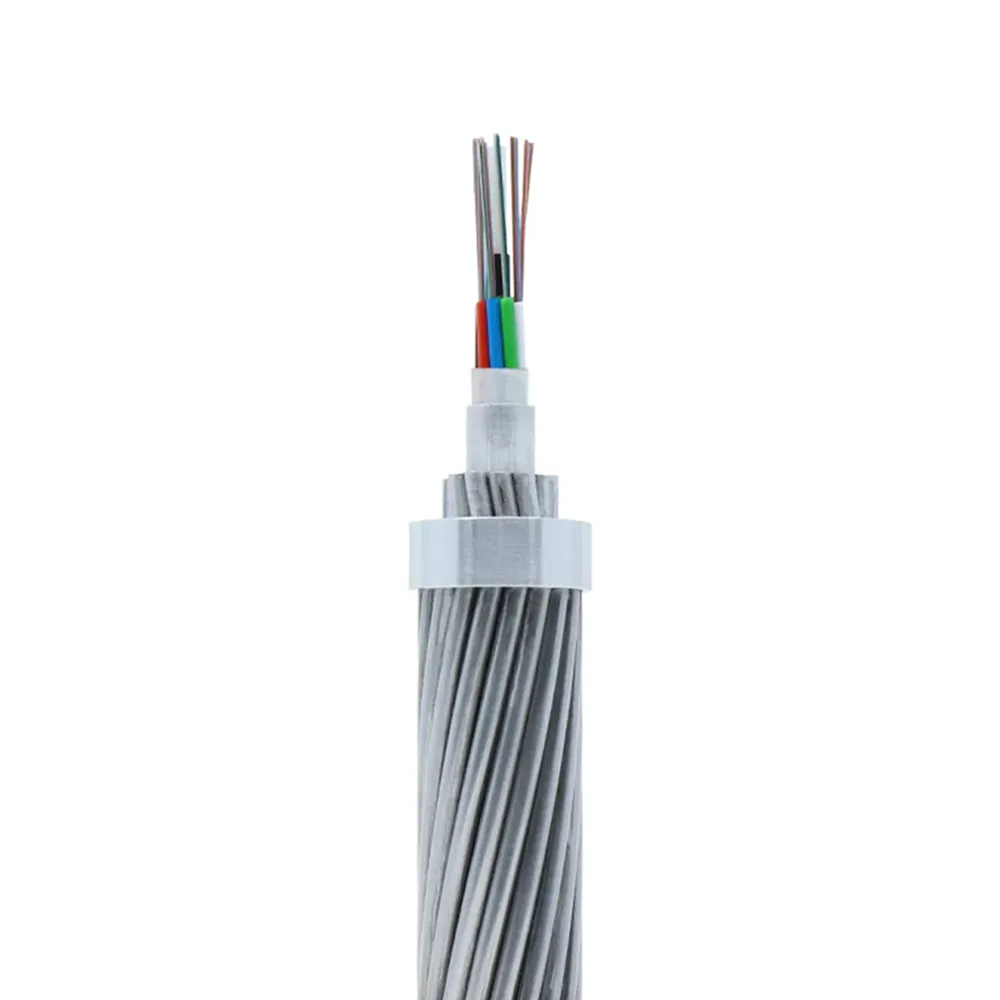

Some Photos of our OPGW

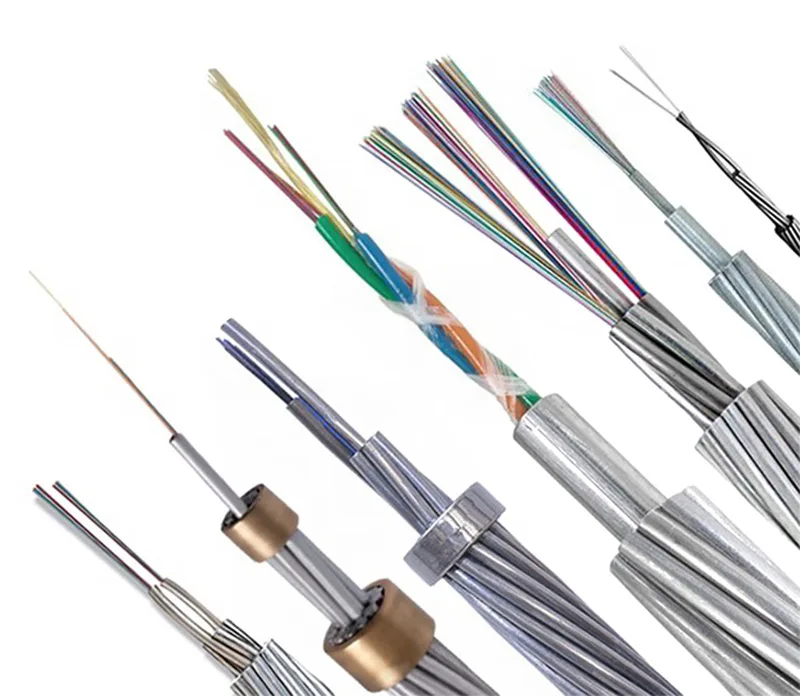

We can custom OPGW Cable fiber core counts, structure, length, materials, package for you.

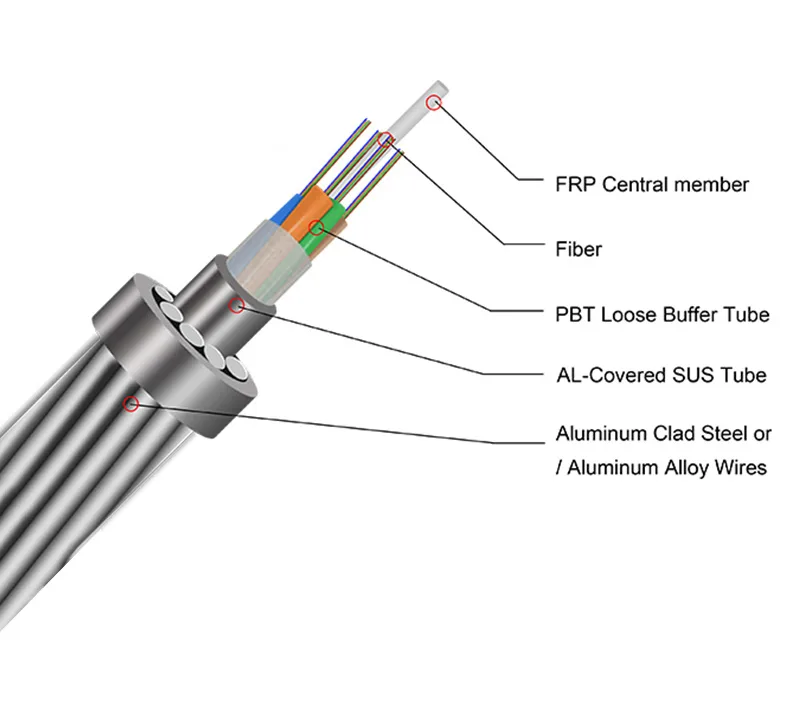

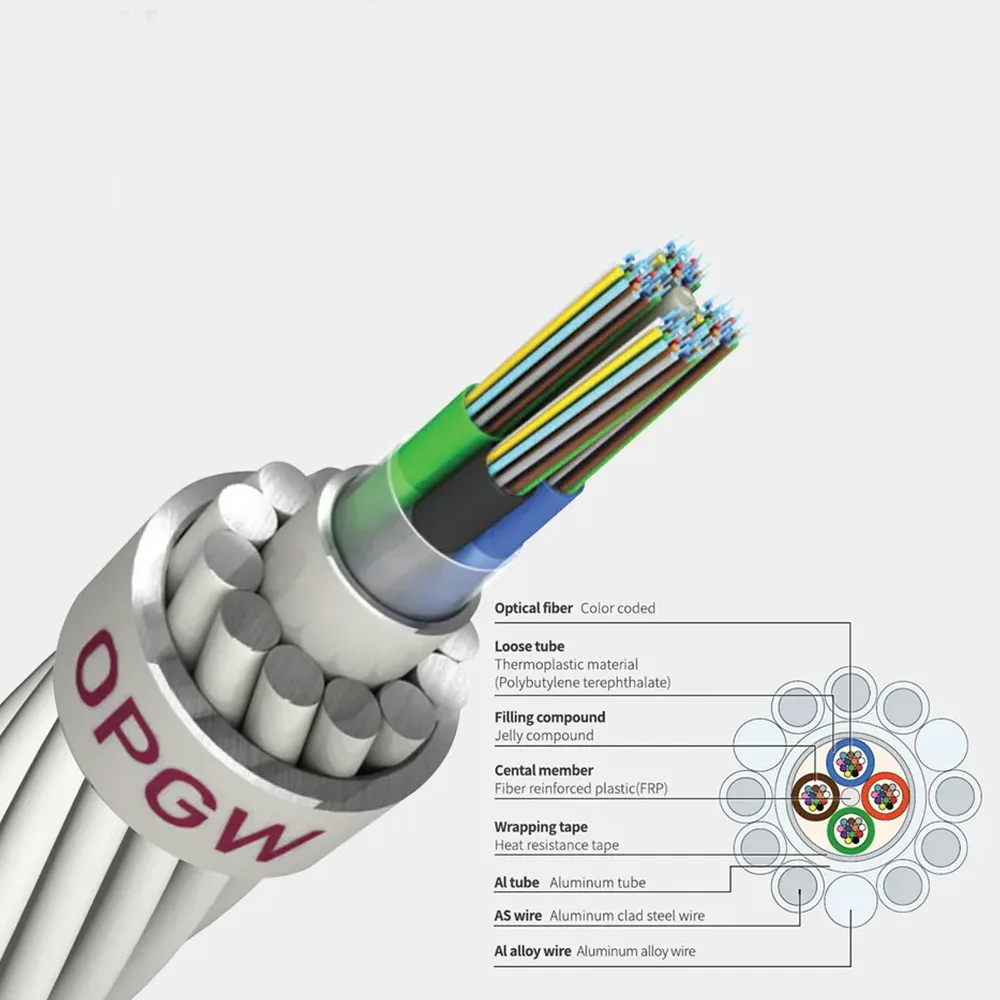

Center Tube OPGW

Structure and performance parameters

Structure	Type	Material	Numerical value
	Optical fiber	G652D/G655	2-48
	Protector tube	Stainless steel tube	1.5-6mm
	Single line	Aluminum-clad copper/Aluminum alloy/Aluminum rod	1.5-6mm
	Max diameter		18mm
	Max section area		200mm2
Mechanical performance	Meet standards DL/T 832-2016
	Max tension（RTS）（KN）		280
	Max flattening force（N/100mm）		2200
	Max allowed short-circuit current capacity(40-200℃ KA2.s)		100
	Min bending radius（Dynamic）		20D
	Min bending radius（Static）		15D
Environmental performance	Installation temperature range		-10~+50
	Operating and storage temperature range		-40~+65

Note：“D”is the diameter of OPGW.

Specific type and Technical Parameters

Item	Product type	Structure	AS section(mm2)	Diameter (mm)	Cable Weight(kg/km)(Ref)	Rated breaking force(KN)	20℃ DC resistance(Ω/km)	Allowed short-circuit current capacity(40-200℃ KA2.s)
1	OPGW-24C-40-[51;9]	6/3.0/20AS，optical unit1/3.0	≈40	9	≤304	≥51	≤2.1	≥9
2	OPGW-24C-50-[58;11.5]	6/3.2/20AS，optical unit1/3.2	≈50	9.6	≤345	≥58	≤1.82	≥11.5
3	OPGW-48C-70-[77;24]	6/3.8/20AS，optical unit1/3.8	≈70	11.4	≤475	≥77	≤1.30	≥24
4	OPGW-48C-70-[42;38]	6/3.8/40AS，optical unit1/3.8	≈70	11.4	≤340	≥42	≤0.70	≥38

Optical Characteristics

fiber type	Attenuation				(OFL)	Polarization mode dispersion（PMD）
Condition	1310/1550nm		850/1300nm		850/1300nm	Single fiber	（M=20，Q=0.01%）Link value
Condition	Typical	Max	Typical	Max	850/1300nm	Single fiber	（M=20，Q=0.01%）Link value
unit	dB/km	dB/km	dB/km	dB/km	MHz.km	ps/√km	ps/√km
G652	0.35/0.21	0.4/0.3	—	—	—	≤0.20	≤0.1
G655	0.36/0.22	0.4/0.3	—	—	—	≤0.20	≤0.1
50/125	—	—	3.0/1.0	3.5/1.5	≥600/1200	—	—
62.5/125	—	—	3.0/1.0	3.5/1.5	≥200/600	—	—

Stranded Tube OPGW

Structure and performance parameters

Structure	Type	Material	Numerical value
	Optical fiber	G652D/G655	2-144
	Protector tube	Stainless steel tube	1.5-6mm
	Single line	Aluminum-clad copper/Aluminum alloy/Aluminum rod	1.5-6mm
	Max diameter		30mm
	Max section area		500mm2
Mechanical performance	Meet standards DL/T 832-2016
	Max tension（RTS）（KN）		700
	Max flattening force（N/100mm）		3000
	Max allowed short-circuit current capacity(40-200℃ KA2.s)		2000
	Min bending radius（Dynamic）		20D
	Min bending radius（Static）		15D
Environmental performance	Installation temperature range		-10~+50
	Operating and storage temperature range		-40~+65

Note：“D”is the diameter of OPGW.

Specific type and Technical Parameters

Item	Product type	Structure	AS section(mm2)	Diameter(mm)	Cable Weight(kg/km)(Ref)	Rated breaking force(KN)	20℃ DC resistance(Ω/km)	Allowed short-circuit current capacity(40-200℃ KA2.s)
1	OPGW-48C-90-[112;45]	1/2.6/20AS+4/2.5/20AS+11/2.8/20AS，optical unit 2/2.5	≈90	13.2	≤641	≥112	≤0.98	≥45
2	OPGW-48C-90-[57;67]	1/2.6/40AS+4/2.5/40AS+11/2.8/40AS，optical unit 2/2.5	≈90	13.2	≤457	≥57	≤0.52	≥67
3	OPGW-24C-100-[118;50]	1/2.6/20AS+5/2.5/20AS+11/2.8/20AS，optical unit 1/2.5	≈100	13.2	≤674	≥118	≤0.93	≥50
4	OPGW-24C-100-[60;74]	1/2.6/40AS+5/2.5/40AS+11/2.8/40AS，optical unit 1/2.5	≈100	13.2	≤479	≥60	≤0.49	≥74
5	OPGW-24C-110-[133;63]	1/2.6/20AS+5/2.5/20AS+10/3.2/20AS，optical unit 1/2.5	≈110	14	≤760	≥133	≤0.83	≥63
6	OPGW-24C-110-[140;68]	1/2.8/20AS+5/2.7/20AS+11/3.05/20AS，optical unit 1/2.6	≈110	14.3	≤791	≥140	≤0.80	≥68
7	OPGW-24C-110-[67;95]	1/2.9/20AS+5/2.8/20AS+12/2.8/AA，optical unit 1/2.7	≈37	14.1	≤473	≥67	≤0.40	≥95
7	OPGW-24C-110-[67;95]	1/2.9/20AS+5/2.8/20AS+12/2.8/AA，optical unit 1/2.7	≈74(AA)	14.1	≤473	≥67	≤0.40	≥95
8	OPGW-36C-120-[145;73]	1/3.0/20AS+5/2.9/20AS+12/2.9/20AS，optical unit 1/2.8	≈120	14.6	≤820	≥145	≤0.77	≥73
9	OPGW-36C-120-[95;98]	1/3.0/30AS+5/2.9/30AS+12/2.9/30AS，optical unit 1/2.8	≈120	14.6	≤700	≥95	≤0.55	≥98
10	OPGW-36C-120-[74;110]	1/3.0/40AS+5/2.9/40AS+12/2.9/40AS，optical unit 1/2.8	≈120	14.6	≤582	≥74	≤0.42	≥110
11	OPGW-72C-120-[147;76]	1/3.2/20AS+4/3.0/20AS+12/3.0/20AS，optical unit 2/2.9	≈120	15.2	≤832	≥147	≤0.76	≥76
12	OPGW-72C-120-[96;101]	1/3.2/30AS+4/3.0/30AS+12/3.0/30AS，optical unit 2/2.9	≈120	15.2	≤711	≥96	≤0.53	≥101
13	OPGW-72C-120-[74;114]	1/3.2/40AS+4/3.0/40AS+12/3.0/40AS，optical unit 2/2.9	≈120	15.2	≤591	≥74	≤0.40	≥114
14	OPGW-36C-130-[155;85]	1/3.2/20AS+5/3.0/20AS+12/3.0/20AS，optical unit 1/2.9	≈130	15.2	≤879	≥155	≤0.72	≥85
15	OPGW-36C-130-[102;114]	1/3.2/30AS+5/3.0/30AS+12/3.0/30AS，optical unit 1/2.9	≈130	15.2	≤751	≥102	≤0.50	≥114
16	OPGW-36C-130-[79;137]	1/3.2/40AS+5/3.0/40AS+12/3.0/40AS，optical unit 1/2.9	≈130	15.2	≤624	≥79	≤0.40	≥137
17	OPGW-36C-140-[175;100]	1/3.3/20AS+5/3.2/20AS+12/3.2/20AS，optical unit 1/3.1	≈140	16.1	≤995	≥175	≤0.65	≥100
18	OPGW-36C-140-[115;140]	1/3.3/30AS+5/3.2/30AS+12/3.2/30AS，optical unit 1/3.1	≈140	16.1	≤850	≥115	≤0.45	≥140
19	OPGW-36C-145-[86;170]	1/3.3/20AS+5/3.2/20AS+12/3.2/AA，optical unit 1/3.1	≈49	16.1	≤611	≥86	≤0.31	≥170
19	OPGW-36C-145-[86;170]	1/3.3/20AS+5/3.2/20AS+12/3.2/AA，optical unit 1/3.1	≈96(AA)	16.1	≤611	≥86	≤0.31	≥170
20	OPGW-48C-150-[182;123]	1/3.4/20AS+5/3.3/20AS+12/3.3/20AS，optical unit 1/3.2	≈150	16.6	≤1055	≥182	≤0.60	≥123
21	OPGW-48C-150-[122;165]	1/3.4/30AS+5/3.3/30AS+12/3.3/30AS，optical unit 1/3.2	≈150	16.6	≤901	≥122	≤0.42	≥165
22	OPGW-36C-150-[95;195]	1/3.4/40AS+5/3.3/40AS+12/3.3/40AS，optical unit 1/3.2	≈150	16.6	≤747	≥95	≤0.33	≥195
23	OPGW-72C-150-[172;110]	1/3.4/20AS+4/3.3/20AS+12/3.3/20AS，optical unit 2/3.2	≈150	16.6	≤998	≥172	≤0.64	≥110
24	OPGW-72C-150-[116;147]	1/3.4/30AS+4/3.3/30AS+12/3.3/30AS，optical unit 2/3.2	≈150	16.6	≤853	≥116	≤0.45	≥147
25	OPGW-48C-170-[198;150]	1/3.6/20AS+5/3.5/20AS+12/3.5/20AS，optical unit 1/3.4	≈170	17.6	≤1190	≥198	≤0.54	≥150
26	OPGW-72C-170-[199;156]	1/3.8/20AS+4/3.6/20AS+12/3.6/20AS，optical unit 2/3.5	≈170	18.2	≤1187	≥199	≤0.54	≥156
27	OPGW-48C-180-[252;125]	1/3.8/14AS+5/3.6/14AS+12/3.6/14AS，optical unit 1/3.5	≈180	18.2	≤1372	≥252	≤0.72	≥125
28	OPGW-48C-180-[211;175]	1/3.8/20AS+5/3.6/20AS+12/3.6/20AS，optical unit 1/3.5	≈180	18.2	≤1255	≥211	≤0.50	≥175
29	OPGW-48C-180-[147;234]	1/3.8/20AS+5/3.6/20AS+12/3.6/20AS，optical unit 1/3.5	≈180	18.2	≤1071	≥147	≤0.35	≥234
30	OPGW-48C-180-[113;262]	1/3.8/40AS+5/3.6/40AS+12/3.6/40AS，optical unit 1/3.5	≈180	18.2	≤888	≥113	≤0.28	≥262
31	OPGW-48C-235-[268;243.4]	1/2.7/20AS+4/2.5/20AS+12/3.5/20AS+13/3.8/20AS，optical unit 1/3.5	≈235	20.3	≤1594	≥268	≤0.38	≥243.4

Other fiber core number, fiber type and strand type can be designed.
Optical Characteristics

fiber type	Attenuation				(OFL)	Polarization mode dispersion（PMD）
Condition	1310/1550nm		850/1300nm		850/1300nm	Single fiber	（M=20，Q=0.01%）Link value
Condition	Typical	Max	Typical	Max	850/1300nm	Single fiber	（M=20，Q=0.01%）Link value
unit	dB/km	dB/km	dB/km	dB/km	MHz.km	ps/√km	ps/√km
G652	0.35/0.21	0.4/0.3	—	—	—	≤0.20	≤0.1
G655	0.36/0.22	0.4/0.3	—	—	—	≤0.20	≤0.1
50/125	—	—	3.0/1.0	3.5/1.5	≥600/1200	—	—
62.5/125	—	—	3.0/1.0	3.5/1.5	≥200/600	—	—

Application

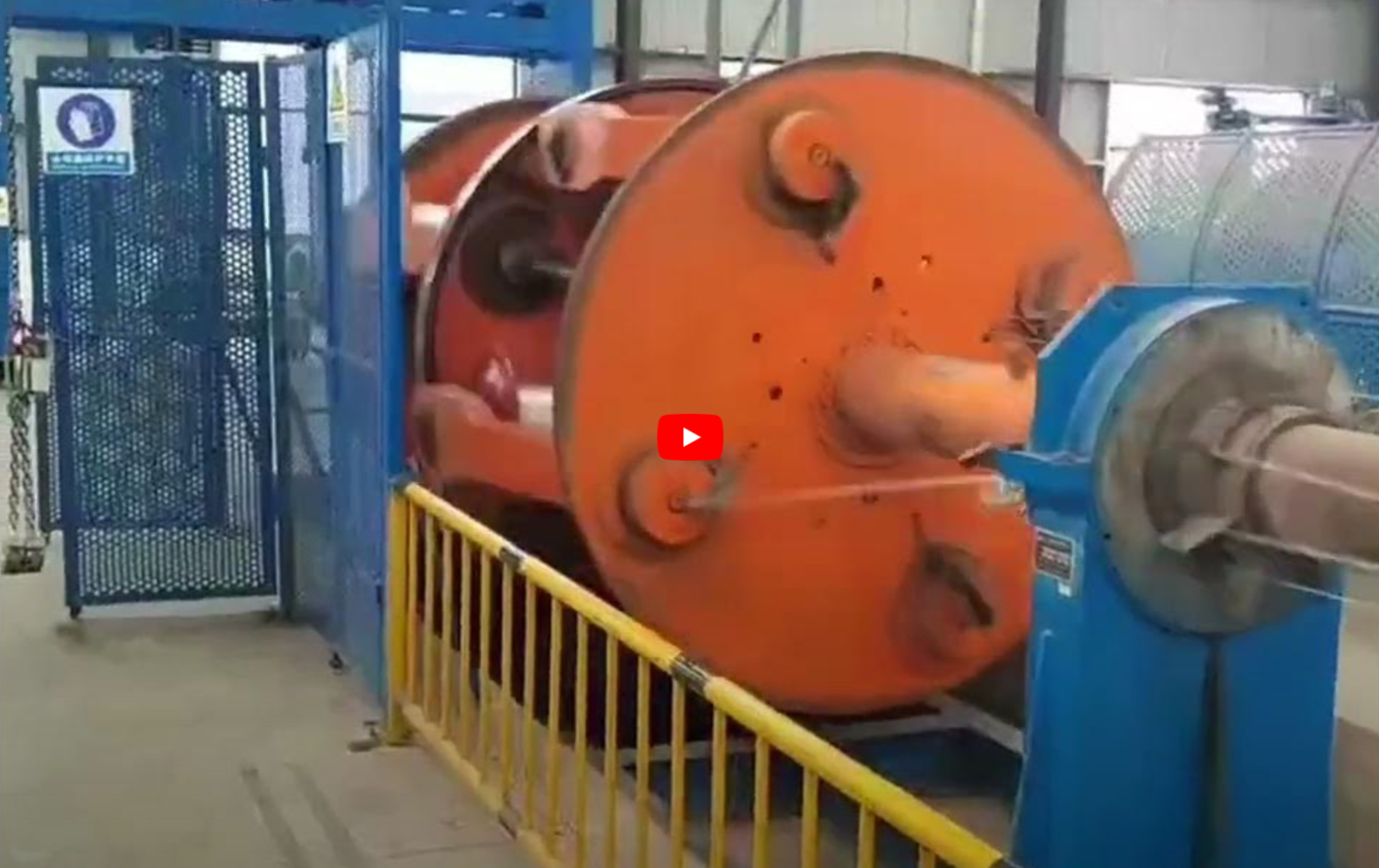

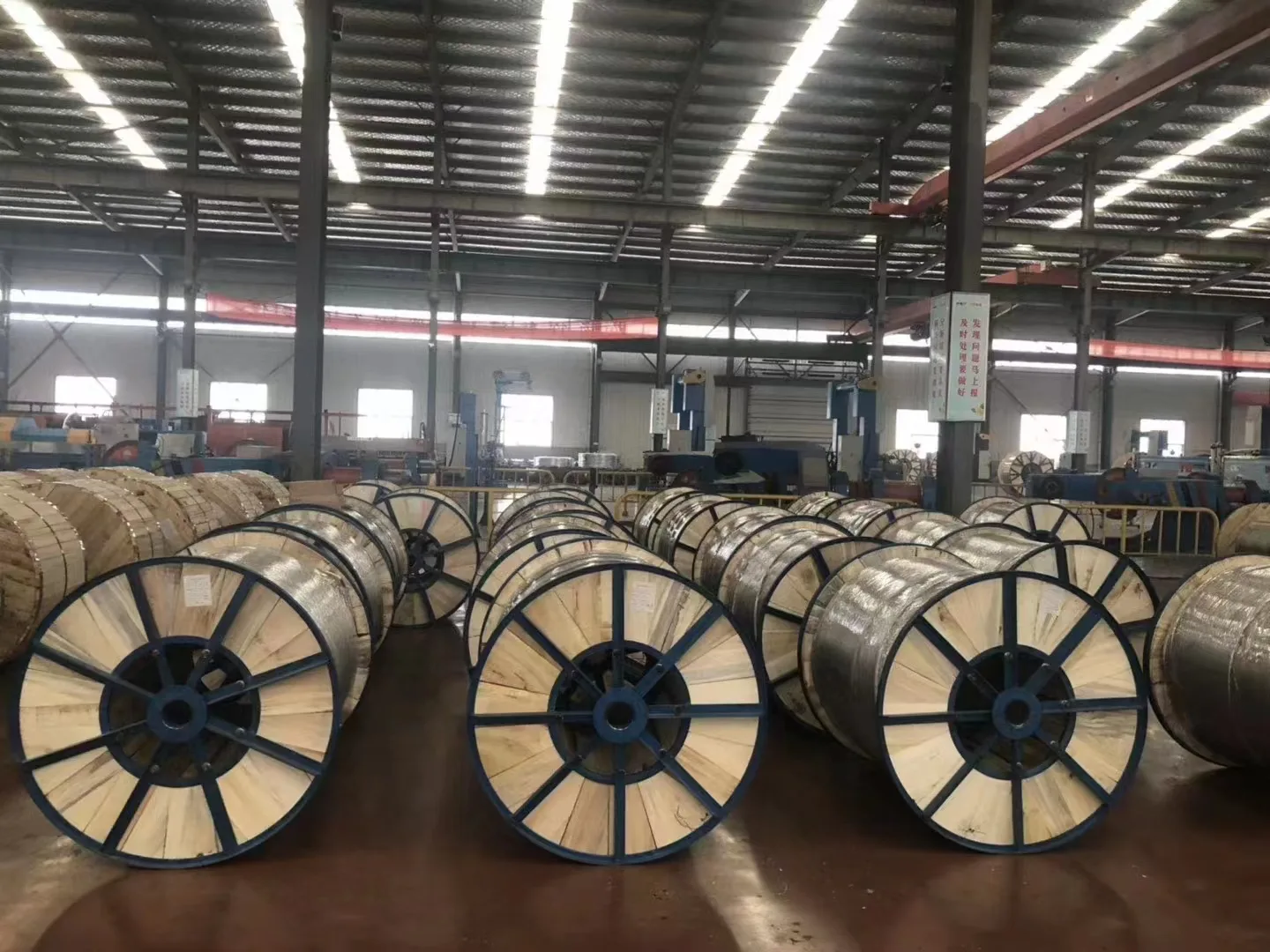

OPGW cables under manufacturing in our factory.
