Feature
- we can custom fiber Patch cord cable structure, fiber count, connector types, length, package for you.
- price unbeatable
- Shortest delivery time
- Standard size, light weight and reasonable structure
- Slide out drawer for easy cable management
- FC, SC, ST, LC adapter patch panel for option
Core Specifications

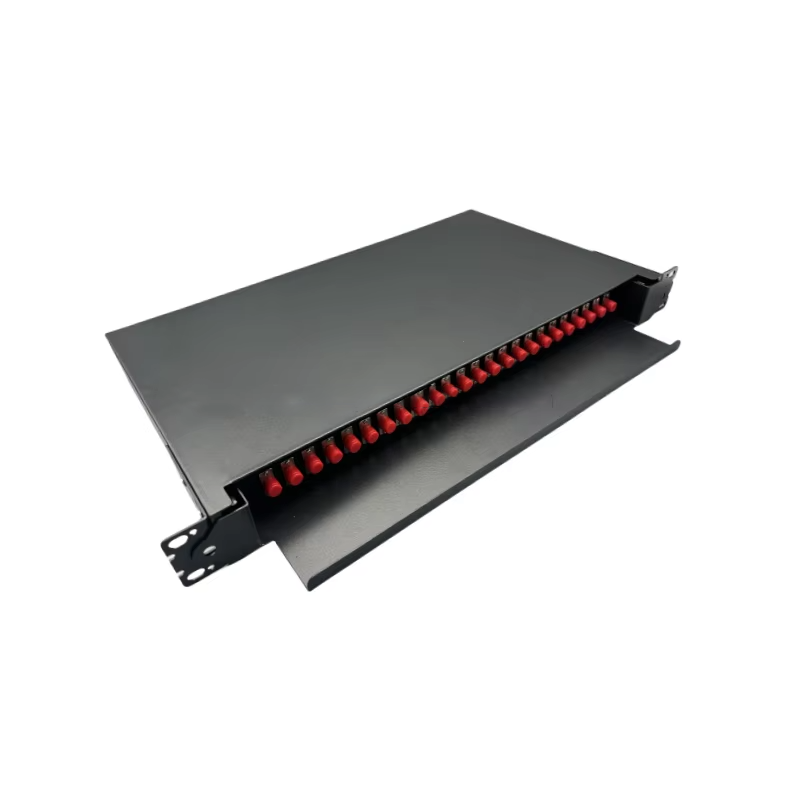

| Product name | Fiber Optic Patch Panel Sliding ODF With Single Mode FC Pigtails Adapter |
| Module Type | Drawer/Sliding Type |
| Adapter Type | FC |
| Adapter Mode | Simplex |
| Dimension | 1U/19” 485*295*47mm |
| Ports | 24 Ports (FC) |
| Material | Cold Rolled Steel |
| Color | Black |
| Zastosowanie | For Cable distribution/FTTH |
| Warranty | Limited |
| Product Keywords | mpo patch panel,patch panel fiber lc,fiber optic terminal box, fiber box, odf, optical distribution box |
Description:
Fiber patch panel series of optical distribution boxes ,which are middle capacity and both side operation applicable in the branch connection of fiber termination ,working as distribution box.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
Feature:
Standard size, light weight and reasonable structure
Slide out drawer for easy cable management
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
With metal front cover
Splice trays (each 24 fibers/48core trays)

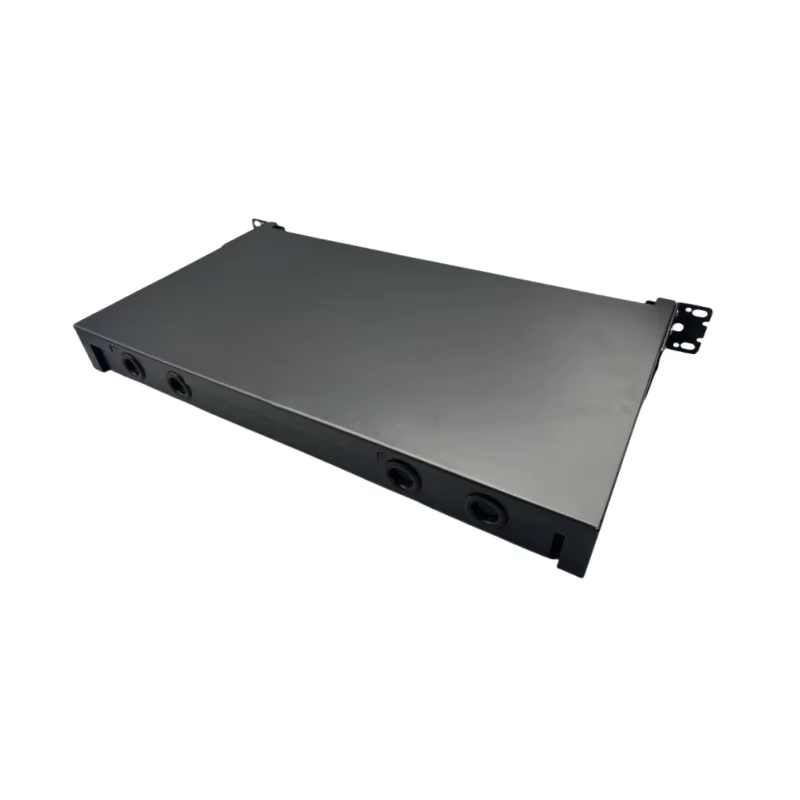

4 fiber cable entry ports at rear side
White/Gray or Black color
Application:
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
