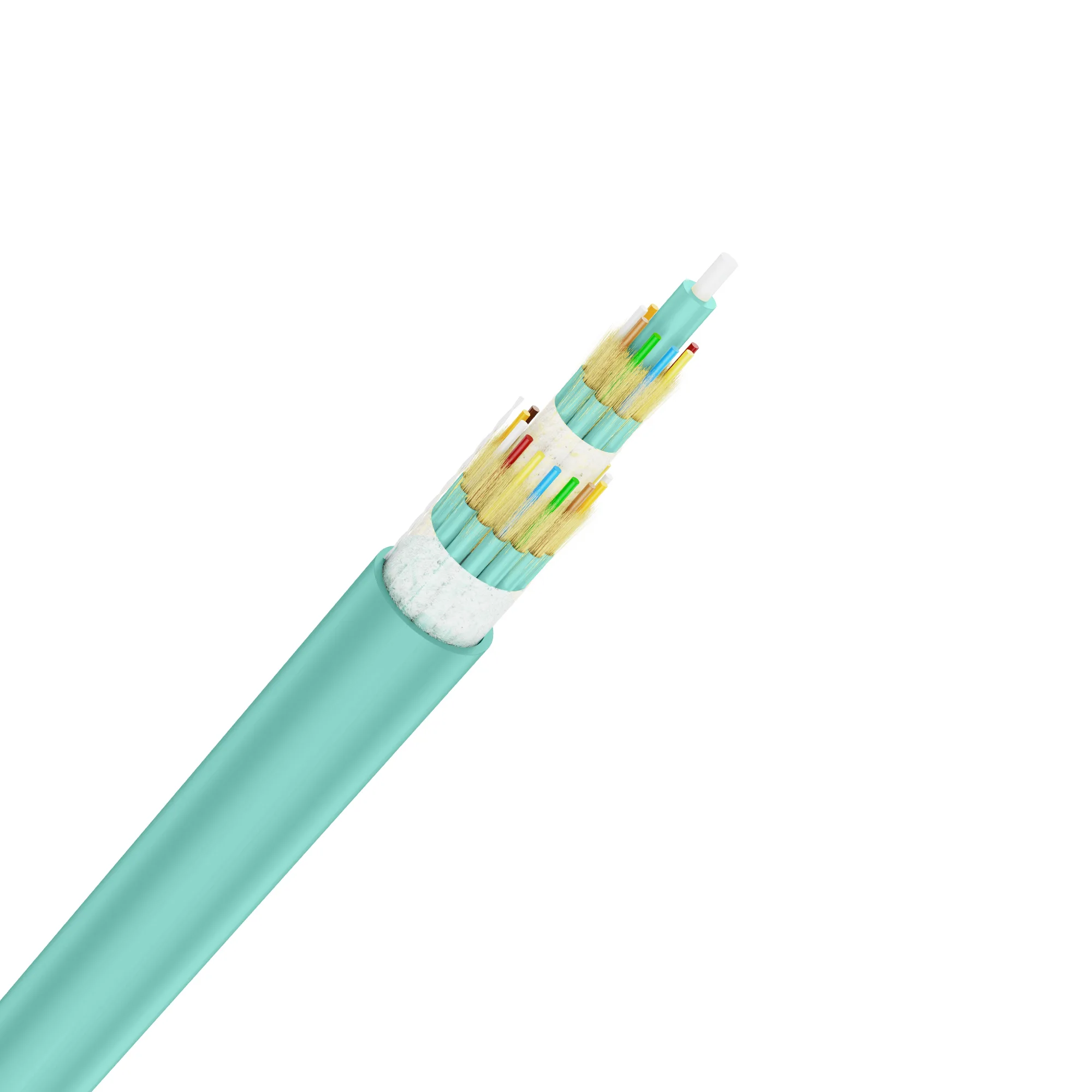

Feature
- we can custom fiber cable structure, fiber count, length, package for you.
- price unbeatable
- Shortest delivery time for you, we produce 2000KM / day
- 900µm tight buffer
- Strength Member: Aramid Yarns
Core Specifications
Technical Parameters
| Cable Code | Cable Diameter(mm) | Cable Weight(kg/km) | Tensile Strength（N） | Crush Resistance（N/100mm） | Bending Radius（mm） | |
| PVC Sheath | LSZH Sheath | Long/Short term | Long/Short term | Static/Dynamic | ||
| GJBFJH/V-4C | 7.0±0.2 | 43 | 44 | 130/440 | 300/1000 | 10D/20D |
| GJBFJH/V-6C | 8.0±0.2 | 62 | 64 | 200/660 | 300/1000 | 10D/20D |
| GJBFJH/V-8C | 9.2±0.2 | 83 | 85 | 200/660 | 300/1000 | 10D/20D |
| GJBFJH/V-12C | 12.2±0.3 | 146 | 150 | 200/660 | 300/1000 | 10D/20D |
| GJBFJH/V-18C | 12.2±0.3 | 97 | 100 | 400/1320 | 300/1000 | 10D/20D |
| GJBFJH/V-24C | 13.8±0.3 | 182 | 185 | 400/1320 | 300/1000 | 10D/20D |
| GJBFJH/V-36C | 16.5±0.3 | 254 | 258 | 400/1320 | 300/1000 | 10D/20D |
More cores can be customized
Note：“D”is the diameter of the cable.
Optical Characteristics
| Kategoria | Attenuation | (OFL) | Effective mode bandwidth | 10G Ethernet link length SX | Min bending Radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Typical | Max | Typical | Max | |||||
| unit | dB/km | dB/km | dB/km | dB/km | MHz.km | MHz.km | m | mm |
| G652D | 0.36/0.22 | 0.4/0.3 | — | — | — | — | — | 16 |
| G657A1 | 0.36/0.22 | 0.4/0.3 | — | — | — | — | — | 10 |
| G657A2 | 0.36/0.22 | 0.4/0.3 | — | — | — | — | — | 7.5 |
| 50/125 | — | — | 3.0/1.0 | 3.5/1.5 | ≥500/500 | — | — | 30 |
| 62.5/125 | — | — | 3.0/1.0 | 3.5/1.5 | ≥200/500 | — | — | 30 |
| OM3 | — | — | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | — | — | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
| Bl-OM3 | — | — | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 7.5 |
| BI-OM4 | — | — | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 7.5 |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
