Feature
- We wholesale fiber optic splitters at unbeatable price
- Excellent Quality
- Custom connector type - OK
- Custom connector count - OK
- Custom package, sticker - OK
- Custom Color - OK
- Rapid delivery
Core Specifications
Description:
- The box is made of high quality cold rolled steel, and the surface is treated with Powder painting, painted well, is attractive and durable.

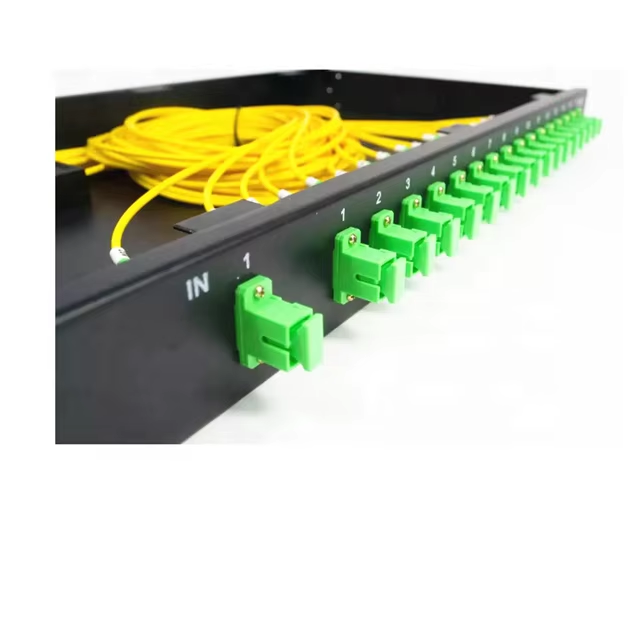

- It is used for the termination of optic cable, 19” standard, rack mounted, for FC, SC, LC adaptors, convenience for use.
- This PLC splitter box meet the National Standard of YD/T925-1997.

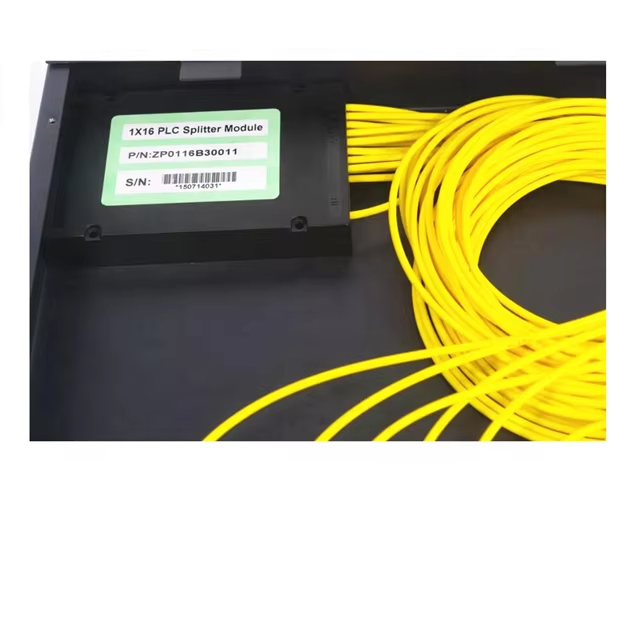

- 1-2 cable-in ports,1~32 cores fiber out ports. Protective caps available, increase the flexibility of using.
Feature:
- Small package volume
- easy for management and suitable for various occasions.
- Single mode and multi mode available
- 1×2, 1×4 and 1x n customized splitters configuration available
Main technique index:
- Size(mm):(L×W×H) 430*250*1U
- Weight:2.4kg
- Fiber radius of curvature:≥40mm
- Added losses: no
- Length of fiber coiled:≥1.6m
- Maximum splitter capacity:SC maximum 1:32, FC maximum 2:16
- Scope of temperature:-40°C~+60°C
- Resistance to lateral pressure:500N
- shock resistance:750N
Package:
- Body: 1 set
- Installation ears:1 pair
Application:
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks, LAN Network
- Data communications networks
- Local area networks
- Active device termination
Specification:
| Type | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 | |
| Item | |||||||||||||
| Insertion loss (dB) | MAX | 3.9 | 7.2 | 10.5 | 13.8 | 16.8 | 20.8 | 4.4 | 7.4 | 11 | 14.5 | 17.5 | 20.8 |
| Uniformity (dB) | MAX | 0.5 | 0.6 | 0.8 | 1 | 1.3 | 1.8 | 0.6 | 0.8 | 1 | 1.5 | 1.8 | 2 |
| PDL (dB) | MAX | 0.2 | 0.3 | 0.4 | 0.2 | 0.3 | 0.4 | ||||||
| Operating Wavelength (nm) | / | 1260~1650 | |||||||||||
| Return loss (dB) | MIN | 50(UPC),55(APC) | |||||||||||
| Directivity (dB) | MIN | 55 | |||||||||||
| Operating Temperature (°C) | / | -40°C~85 °C | |||||||||||
| Storage Temperature (°C) | / | -40°C~85 °C | |||||||||||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
