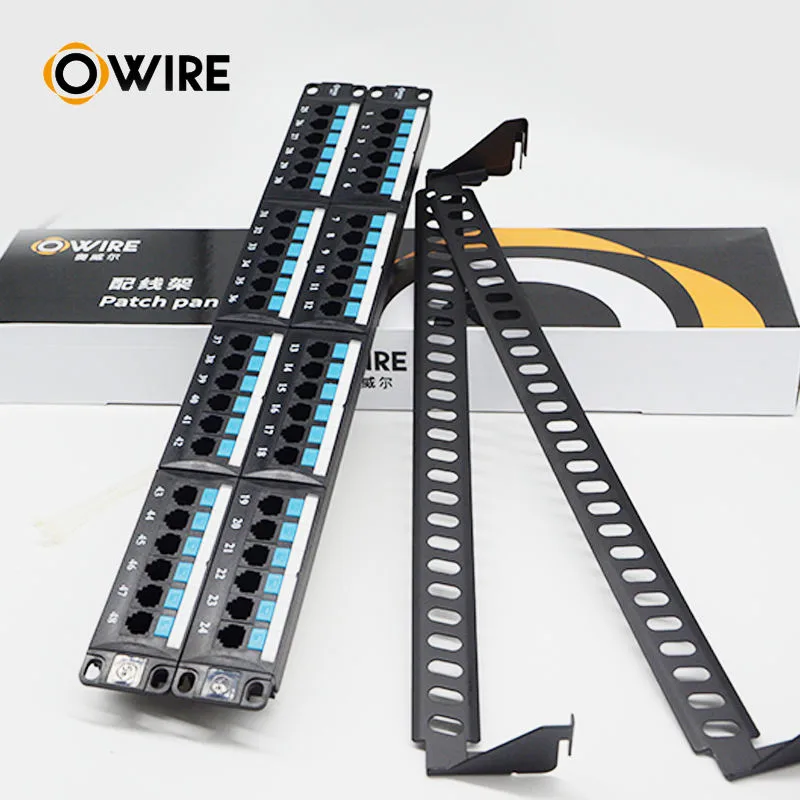

Owire Networking Patch Panel

24Ports 48ports Patch Panel Network System Cabinet RJ45 Ethernet Cable Panel

$
In the data center ,Copper patch panel is an ideal method to Create a flexible,reliable and tidy cabling system.Today ,various styles of copper patch panels can be found in the market,such as shielded and unshielded patch panel,flat or angled patch panel,etc.And the configurations can also be different form numbers of ports
Follow Us

Feature

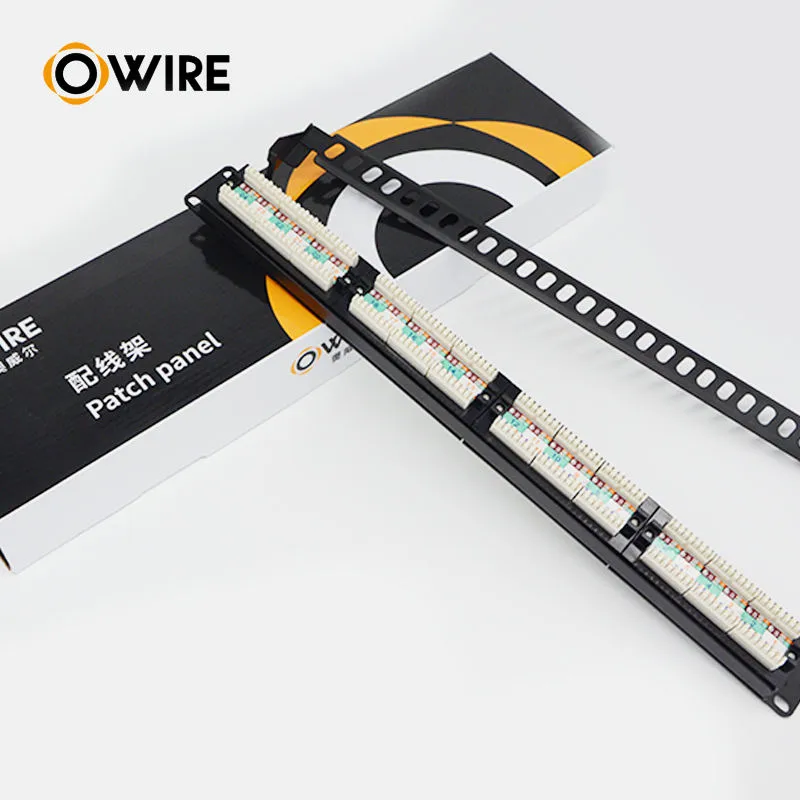

Owire Networking Patch Panel

Core Specifications

1Operation temperature-40°C to 60°C
2Relative humidity85%(30°C)
3Air pressure70-106Kpa
4ColorBlack/Grey
5Front Panel1.5mm thickmness metal panel(SPCC), painting on surface
6Housing materialABS or PC, UL94-V0 or UL94-V2
7IDC contact materialphosphor brone with tin plating over nickel
8Contact materialphosphor brone with gold plating over nickel
9Insulation Resistance500M-ohm
10TerminationDual IDC, 110 IDC, Krone IDC

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.

Related Product

Transparent color Meet or exceed the requirement in the cat5e T568A and T568B Contacts are nickel plated, phosphor bronze with 1U, 3U, 6U….50U gold plated Exclusive stagger conductors guide design reduces near end cross talk Accept 22AWG, 23AWG, 24AWG, 26AWG solid with a insulation diameter of 0.64mm, 0.56mm, 0.50mm, 0.40mm
Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together. They are available for use with either singlemode or multimode patch cables. Offer superior low loss performance with very high repeatability.
Each cable consists of 8 colour coded 24AWG polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are wrapped in an aluminium foil tape screen with a solid drain wire and jacketed in a heat resistant PVC rated material. The printing detail on the sheath, includes the cables part number, specification details and sequential metre markin
