Owire GYXTW Outdoor Duct Aerial Uni-tube Light-armored Cable

GYXTW fiber singlemode outdoor fiber optic cable duct cable

$

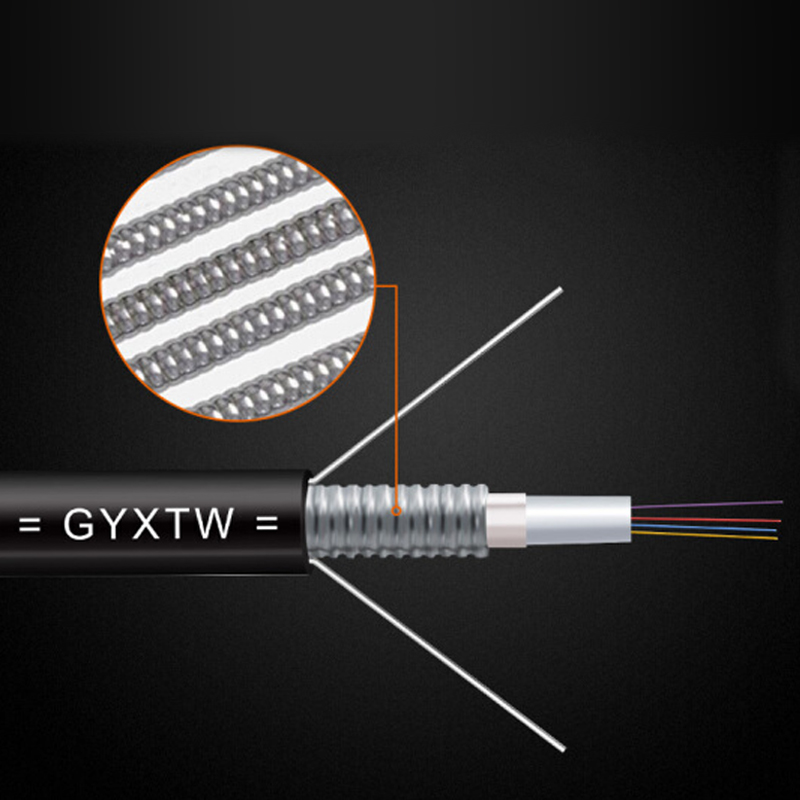

The bers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are lled with a water-resistant lling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.

Feature

Owire GYXTW Outdoor Duct Aerial Uni-tube Light-armored Cable

Core Specifications

Fiber range
Cable outer diameter
Cable netweight(Kg/km)
Min. bending radius(mm)
Allowable tension(N)
Max.crus loading force(N/100mm)
Static
Dynamic
Short term
Long term
Short term
Longterm
2-12
8.9
90
10 times cable diameter
20 times cable diameter
1500
600
1000
300

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
