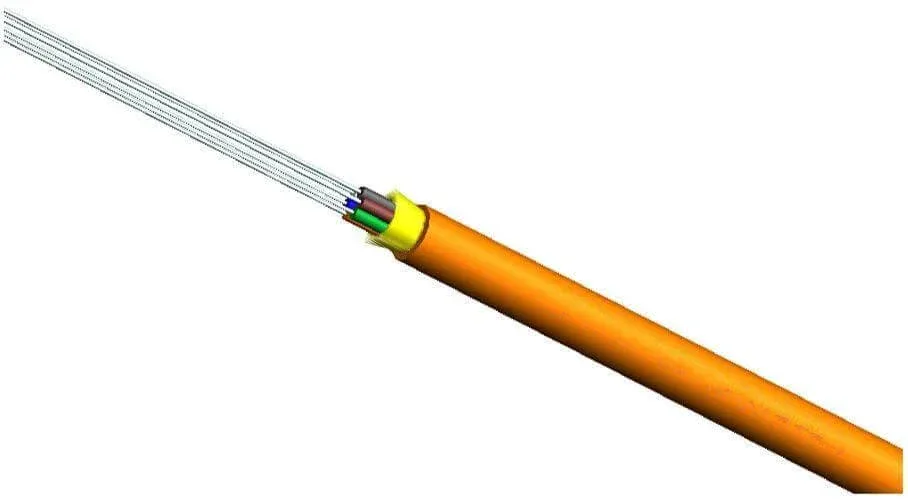

Indoor multicord tight buffer fiber optic cable breakout optical fibre cable GJBFJH

Indoor multicord tight buffer fiber optic cable breakout optical fibre cable GJBFJH

$
Process the optical fiber into 0.6 or 0.9mm tight sleeve fibers, and then place the required number of tight sleeve fibers in the 2.0 or 3.0mm sub cables according to customer requirements; And with one FRP as the central reinforcement, it can also be omitted; Concentrate the sub cables, add aramid and water blocking tape, and finally use black or colored LSZH sheath to complete.

Feature

Indoor multicord tight buffer fiber optic cable breakout optical fibre cable GJBFJH

Core Specifications

Cable Count
36
unit


Out sheath Diameter
(MM)

7.0
Inner sheath Diameter
(MM)

2.0
Weight
(KG)

24.50
Minimum allowable Tensile Strength

(N)
short term
1500
long term
600
minimum allowable Crush Load

(N/100mm)
short term
1000
long term
300
Minimum Bending Radius

(MM)
short term
20D
long term
10D
Storage temperature
(°C)

-20+60

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.

Related Product

Tight buffered Fibers, Dielectric Strength Member and Flame retardant TPU (Thermoplastic Polyurethane). This specification covers the general requirements for fiber optic telecommunication cables.
Armoured Fiber Optic Patch Cord The Armoured patch cord is used in the connection of fiber optic equipment to equipment or patch panel to equipment in a more rugged environment. It comprises of a patch cable that is armoured with a spiral steel tape and terminated with a fiber optic connector. The spiral steel tape armouring will provide additional crush resistance and prevention of rodent attacks.
