Outdoor Aerial FTTH Flat Drop Cable Uni Central Tube FRP Strength Member Fibre Optical Cables

Outdoor Aerial FTTH Flat Drop Cable Uni Central Tube FRP Strength Member Fibre Optical Cables

$

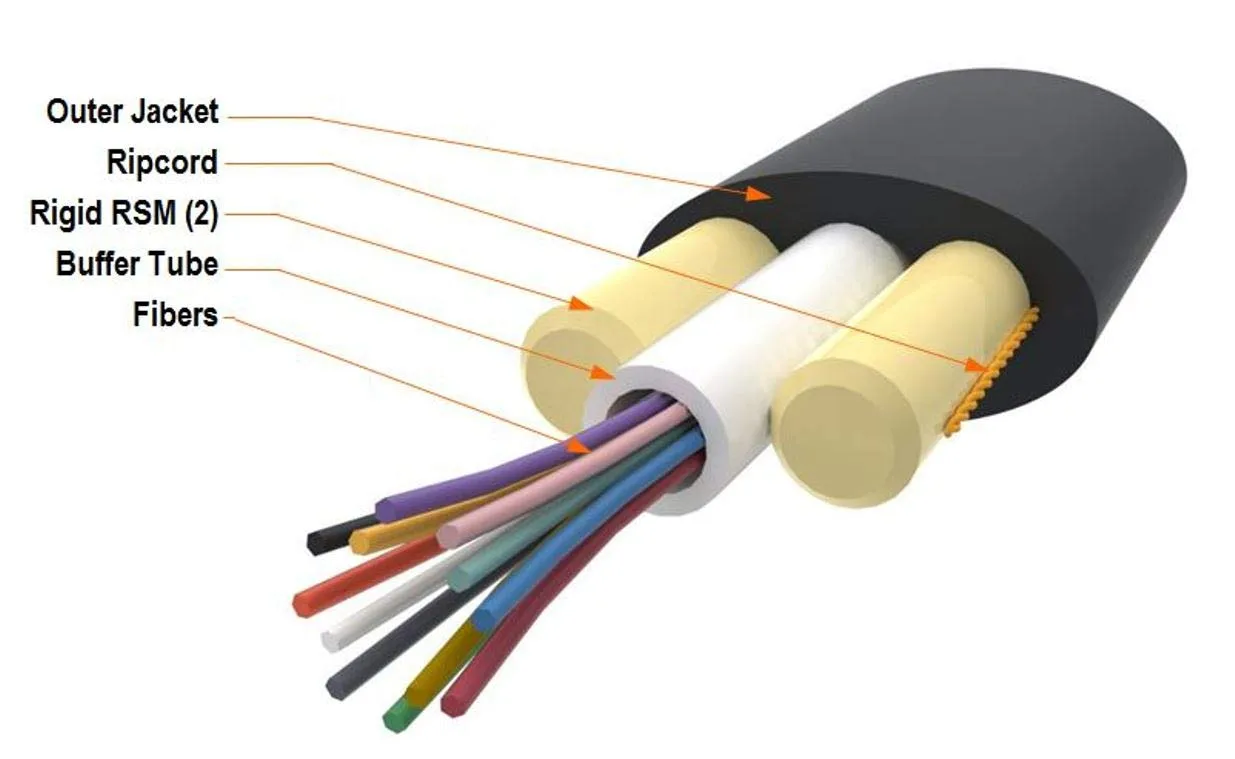

Uni-Tube All Dielectric Aerial Drop cable is Especially designed for Fiber to the Subscriber applications. It is a flat, all dielectric cable ideally suited for self-supporting drop-type installations as well as conduit builds

Feature

Owire Flat Fiber Optic Drop Cable FRP PE Sheath

Core Specifications

ITEM
Technical Parameters



Fiber
Fiber type
G.652D, G657A1,G657A2 or available
Fiber count
1~24
Color
Blue/Orange/Green/Brown/Grey/White/Red/Black/Yellow/Violet/Pink/Aqua


Loose tube
Material
PBT
Diameter
1-12 cores:1.8 ±0.1mm
24 cores: 2.4 ±0.1mm
Water-blocking material
Gel-filled or Water blocking yarn


Strength member
Material
FRP
Diameter
1-12 cores:1.6 ±0.1mm
24 cores: 2.0 ±0.1mm


Outer jacket
Material
HDPE sheath
Color
Black
Thickness
1-12 cores: 3.5~4.2 ±0.1mm
24 cores: 4.2 ~4.8 ±0.1mm
Diameter
1-12 cores: 6.5~8.0 ±0.2 mm
24 cores: 8.5~9.0 ±0.2 mm

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.

Related Product

Optical fiber are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a non-metallic central strength member and surrounded with dry water-blocking material to form a cable core.
Tight buffered Fibers, Dielectric Strength Member and Flame retardant TPU (Thermoplastic Polyurethane). This specification covers the general requirements for fiber optic telecommunication cables.
