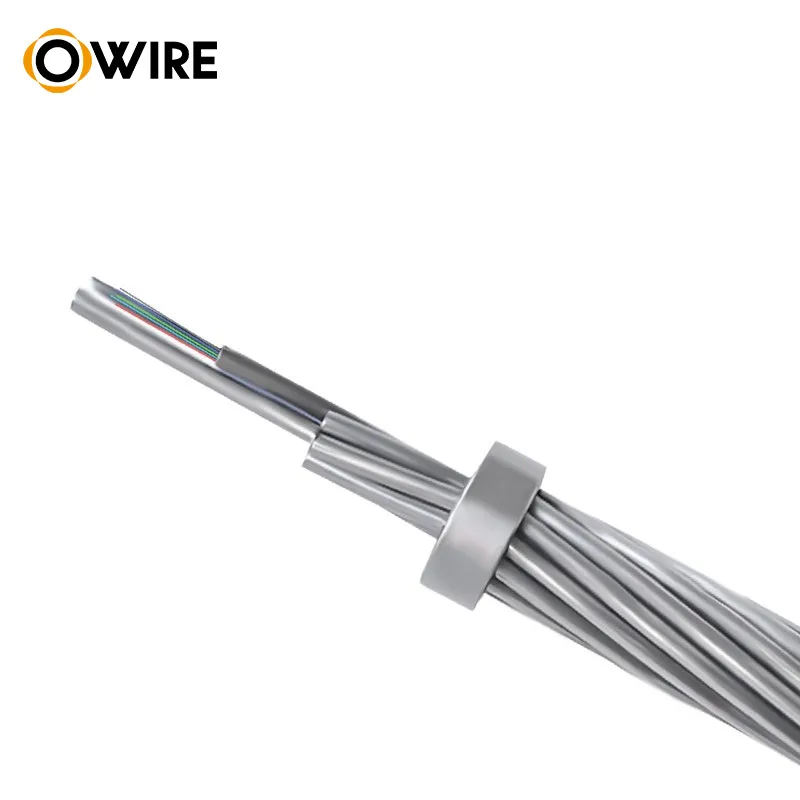

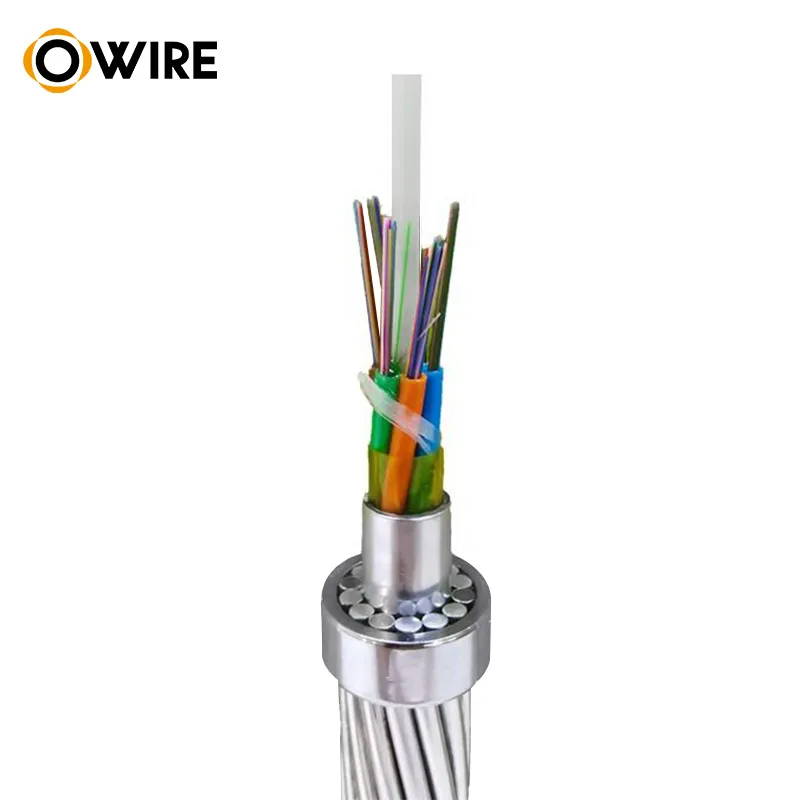

Owire OPGW Aluma Core Optical Ground Wire (OPGW)

Owire OPGW Aluma Core Optical Ground Wire (OPGW)

$
OPGW is a dual functioning cable performing the duties of a ground wire and also providing a patch for the transmission of voice, video or data signals . The fibers are protected from environmental conditions (lightning, short circuit, loading) to ensure reliability and longevity.

Feature

Owire OPGW Aluma Core Optical Ground Wire (OPGW)

Core Specifications

Technical Dataaccording to IEC, IEEE, DL/T 832, GB/T 7424.4 standards
stranding direction of outer layer is right hand(Z-stranding)
Cable Diameter     14.8mm
Cable Weight     591kg/km
Supporting Cross Section     113.7mm2
 Section of AS Wire      88.5 mm2
 Section of AL tube      25.2 mm2
Rate Tensile Strength (RTS)     77.3kN
Modulus of Elasticity (E-Modulus)     115.1kN/mm2
Thermal Elongation Coefficient     14.8×10-6/℃
Permissible Maximum Working Stress (40% RTS)     272.0N/mm2
Everyday Stress(EDS) (18%~25% RTS)    122.4~170N/mm2
Ultimate Exceptional Stress (70% RTS)     476.1N/mm2
DC Resistance     0.416Ω/km
Short Time Current (1s, 20℃~200℃)   10.6kA
Short Time Current Capacity  I2t     113.1kA2s
Minimum Bending Radius:     370mm
 Installation: Oprating:   222mm
Ratio between Pull and Weight     13.3km
Temperature
Range:
Installation     -10℃ ~ +50
Transportation and Operation     -40℃ ~ +80

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
