Özellik
- FC, SC, ST, LC adapter patch panel for option
- fiyat rakipsiz
- Shortest delivery time
Temel Özellikler
| Product name | 3U MPO Rackmount Patch Panel |
| Module Type | Fixed Type |
| Assemble | MPO cassette, LC adapter panel |
| Dimension | 3U/19” 430*344.6*131.4mm |
| Max Capacity | 288 core |
| Max Cassette | 12 pcs MPO cassette |
| Material | High-quality cold-rolled steel sheet |
| Renk | Black |
| The main body’s depth | 1.5mm |
| Başvuru | Data center |
| Product Keywords | MPO to LC 24Cores cassettes,3U 288Cores MTP/MPO Patch Panel |
Description:

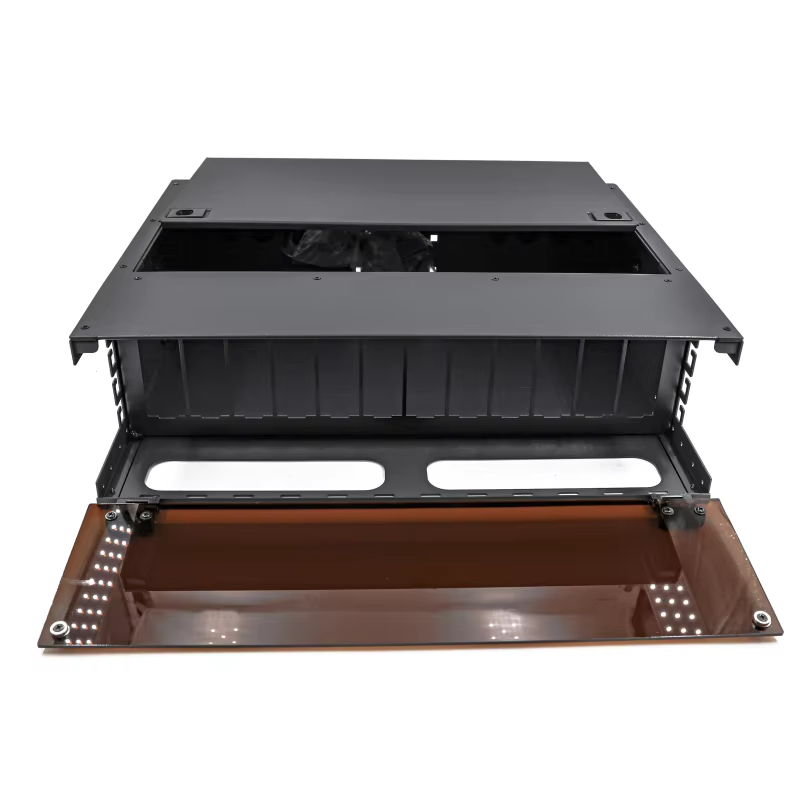

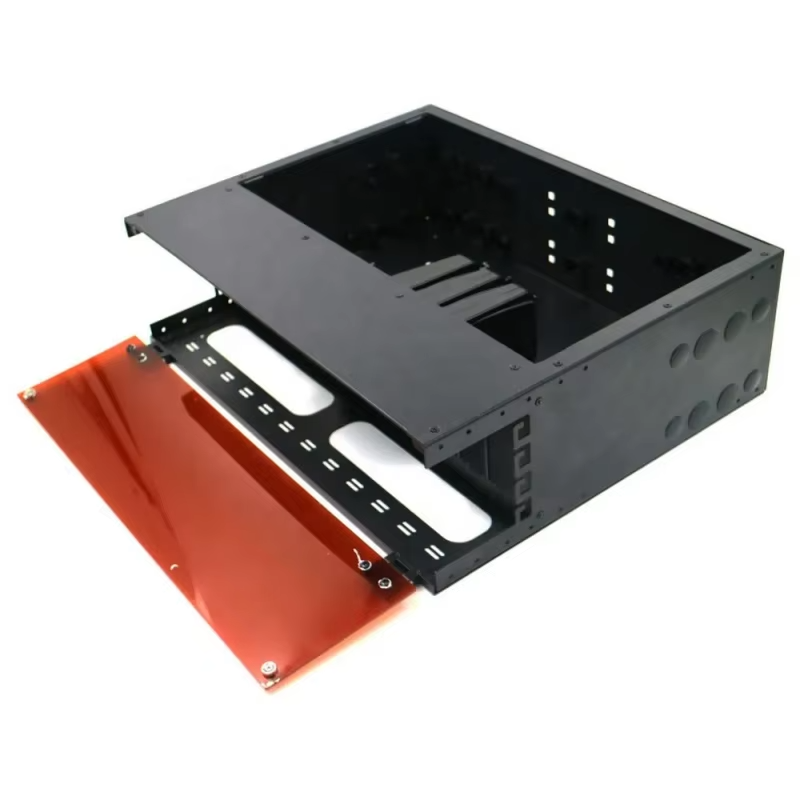

MPO 3U simply type Patch Panel is used in data center cabling region, and connected the ports with cable to the back of the panel. it is usually assembled in 19 inch frame rack and cabinet. You can assemble MPO cassette, MPO adapter panel and LC adapter panel.This rack-mountable MTP/MPO patch panel can be loaded to provide a maximum of 288 fibers, is made of 19″ cold-roll steel box, can install with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution.
Feature:
♦ Can install 12pcs MPO cassettes, and manage 288 cores max;
♦ Can install 12pcs MPO adapter panels, and manage 864 cores max;
♦ Produced with high-quality cold-rolled steel sheet, the main body’s depth is 1.5mm;
♦ No fur, no bubble, no screw to fasten, snap-in top cover can be opened without any tools;
♦ With high-quality acrylic protect cover in front, look nice and elegant.
Application:
1) Data center
2) CATV Networks
3) Telecommunication Networks
4) Data communications Networks
Can be loaded 2 types panel:
Type 1: MPO cassette
MPO 3U Patch Panel is used in data center cabling region, and connected the ports with cable to the back of the panel. it is usually assembled in 19 inch frame rack and cabinet.
1. Can install 12pcs MPO adapter panels,and manage 288 cores max;
2. Produced with high-quality cold-rolled steel sheet, the main body’s depth is 1.5mm;
3. Removable cable management, look elegant and use conveniently;
4. No fur, no bubble, no screw to fasten, snap-in top cover can be opened without any tools.
SSS
Evet. 500'den fazla çalışanımızla gerçek üreticiyiz.
Evet, küçük siparişler mevcuttur. İşin her zaman küçük siparişlerden oluştuğunu bildiğimiz için müşterilerimizin yeni projelerini destekliyoruz.
Lan kablosu için 10 yıl, fiber optik kablo için 25 yıl
ISO9001, SGS, UL, CPR, CE, RoHs
Genellikle 10-15 iş günü içinde
Lan Kablosu, yıllık üretimimiz 500000*305m
Dış Mekan/İç Mekan Fiber Optik Kablo, yıllık üretimimiz 8.000.000 KM;
FTTH/FTTX/FTTA Kablosu, yılda 6.000.000 KM'dir;
Patch Cord/Pigtails, yılda 12.400.000 Adettir.
T/T, L/C, Western Union ve Ali ödeme yapar.
Evet. OEM ve ODM hizmeti veriyoruz. Çiziminizi bize gönderebilir veya profesyonel özelleştirilmiş ekibimiz tarafından tasarım yapabiliriz.
