Özellik
- we can custom fiber Patch cord cable structure, fiber count, connector types, length, package for you.
- fiyat rakipsiz
- Shortest delivery time
- Door to door delivery to all over the world
- LC, SC, ST, FC, LSH,MTRJ, MU connectors are available.
- OS1, OS2, OM1, OM2, OM3, OM4,OM5 are available.
Temel Özellikler

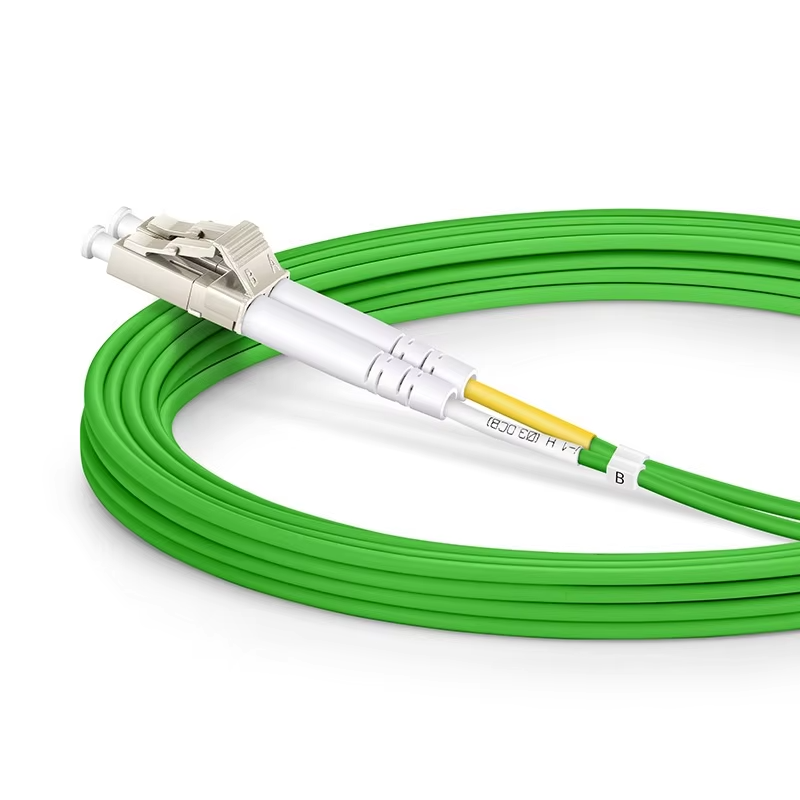

| Poduct Name | Fiber optic patch cord/jumper cables/multimode fiber optic cable |
| Fiber Mode | Multimode MM OM5 50/125 |
| Fiber Counts | Duplex |
| Fiber Cores | 2 cores / Custom |
| Connector A | LC/UPC (LC/APC) |
| Connector B | LC/UPC (LC/APC) |
| Cable Jacket | LSZH/PVC |
| Cable Diameter | 2.0mm |
| Cable Length | Customized according to customers needs |
| Cable Color | Green |
| Product Keywords | Fiber optic product manufacturer 1/2/4/8 core singlemode multimode lc upc/apc patch cords and cable,lc duplex connectors 2.00mm fiber jumper outdoor cabl fiber optics fibers outdoor cables fiber armored cable connector,Fibre Broadband Service |
Description
The SC/LC/FC/ST connectors used for our patch cords are fully compatible with existing SC/LC/FC/ST hardware. Two simplex connectors can be configured into a duplex format by adding a duplex clip. Other than standard single mode and multimode fibers, G655, OM1, OM2, OM3, OM4 and OM5 fibers are also available upon request. Flame retardant grade cable sheathing options are offered. Riser rated cable will be provided as standard. LSZH and Plenum can be provided upon request.
Features
• Low insertion loss, high return loss
• Good compatibility
• High precision of mechanical dimensions
• High reliability & stability
• Ceramic or Bronze Sleeve
• PC, APC, UPC optional
Başvuru
• Telecommunication
• Computer networks
• CATV networks
• Active device termination
• Instrumentation
Order Information
Description : SC/ PC -SC/ PC/ – SM 9/125 – DUPLEX – 3.0mm – 2M – PVC
1 2 1 2 3 4 5 6 7
1. Connector type : FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA LC Uniboot
2. Ferrule End-face : UPC, APC
3. Fiber Module : SM(9/125), OM1(62.5/125), OM2(50/125), OM3, OM4, OM5
4. Cable quantity : Simplex duplex 6F 8F 12F 24F 48F
5. Cable Diameter : 0.9mm 1.6mm 2.0mm 3.0mm B0.9mm B2.0mm
6. Cable Length : 1, 2, 3, 5,10, 20, 30, 50 meter or customized
7. Cable Jacket : PVC LSZH
SSS
Evet. 500'den fazla çalışanımızla gerçek üreticiyiz.
Evet, küçük siparişler mevcuttur. İşin her zaman küçük siparişlerden oluştuğunu bildiğimiz için müşterilerimizin yeni projelerini destekliyoruz.
Lan kablosu için 10 yıl, fiber optik kablo için 25 yıl
ISO9001, SGS, UL, CPR, CE, RoHs
Genellikle 10-15 iş günü içinde
Lan Kablosu, yıllık üretimimiz 500000*305m
Dış Mekan/İç Mekan Fiber Optik Kablo, yıllık üretimimiz 8.000.000 KM;
FTTH/FTTX/FTTA Kablosu, yılda 6.000.000 KM'dir;
Patch Cord/Pigtails, yılda 12.400.000 Adettir.
T/T, L/C, Western Union ve Ali ödeme yapar.
Evet. OEM ve ODM hizmeti veriyoruz. Çiziminizi bize gönderebilir veya profesyonel özelleştirilmiş ekibimiz tarafından tasarım yapabiliriz.
