| Model Name: | PV 4mm2 6mm2 10mm2 16mm2 | Size: | 1.5mm2,2.5mm2,4mm2,6mm2 |
|---|---|---|---|
| Rated Voltage: | 0.6/1 KV | Type: | Low Voltage |
| Conductor Type: | Flexible Tinned Copper | Sheath: | Sunlight Resistant PVC |
| Insulation: | HDPE(High Density Polyethylene) | Application: | Power Station, PV Power Dc,ac System |
| High Light: |
2Core Solar PV Photovoltaic Cable, 0.6KV-1KV Photovoltaic Cable |
||

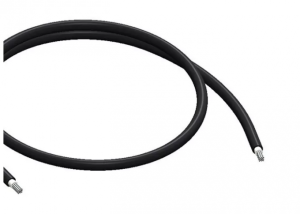

Solar PV Twin Core Cable Tinned Copper Wire 0.6KV – 1KV For Photovoltaic Power Station
Professional XLPO Insulated Solar PV Wire 2 Core CE TUV Certification
Double insulation, electron-beam cross-linked cables for photovoltaic power station.
Construction
1. Core Conductor: Tinned annealed copper (stranded core)
2. Popular sizes: 2core x2.5/4.0/6.0/10.0/16.0/25.0/35.0mm²
3. Cable conductor: stranded tinned annealed copper
4. Insulation: electron-beam cross-linked Polyolefin(XLPE)
5. Jacket:XLPE/ PE (black, red)
6. Other specs:
a) Temperature rating: -40C up to +120C
b). Fire performance: IEC 60332-1, UL1581 VW-1
c). Approval: TUV Rheinland 2PfG 1169 1.5mm² to 50mm²
d). High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant
e). Voltage suitable: 600-1000V
Advantage
With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to strip, extremely mechanical robust, long lifespan etc
Market future
Right now our solar cables are welcomed SUPER HOT at UK, Belgium, Germany, Huangrey, France, Australia, India etc
Solar system industry is very hot recently and more in the future, now almost all the countries goverment are now encouraging and supporting this industry to reduce CO2 releasing
Technical parameter
| Section Area (mm2) |
Insulation Thickness (mm) |
Sheath Thickness (mm) |
External Diameter (mm) |
Current Carring Capacity (A) |
| 2×1.5 | 0.7 | 0.8 | 4.9×10 | 30 |
| 2×2.5 | 0.7 | 0.8 | 5.5×11.5 | 41 |
| 2×4 | 0.7 | 0.8 | 6.1×12.5 | 55 |
| 2×6 | 0.8 | 0.9 | 7.2×14.5 | 70 |
| 2×10 | 0.9 | 1.1 | 9.0×18.5 | 98 |
| 2×16 | 1.1 | 1.1 | 10.2×20.5 | 132 |
