Feature
- Wholesale MPO fiber cable at unbeatable price

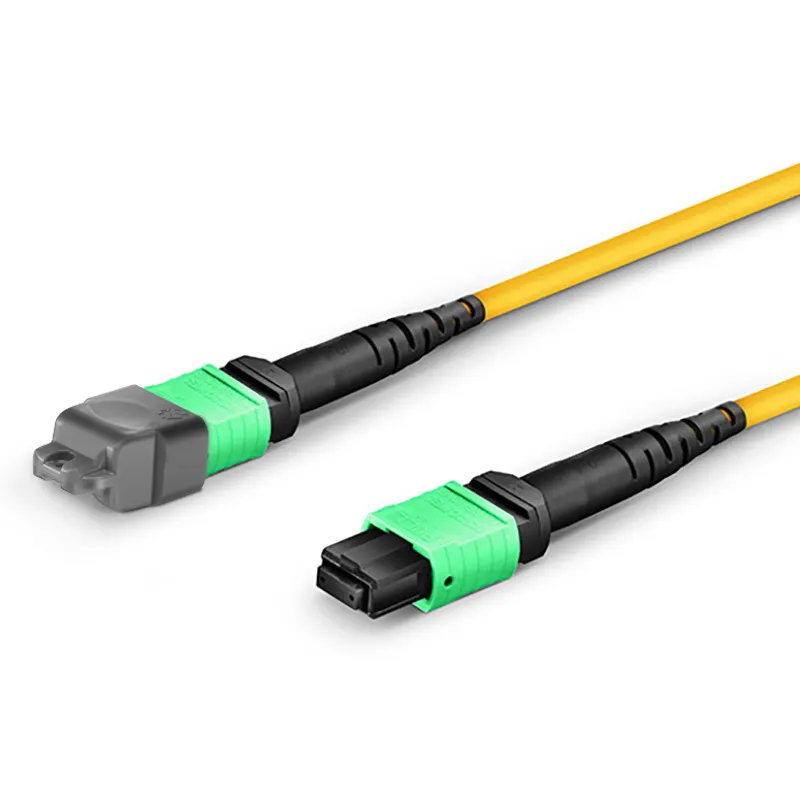

- 16 Fibers MTP® trunk cable is designed for 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 optics direct connection and supporting 800G transmission for Hyperscale Data Center
- it is optimized for high-density fiber patching in data centers which need space saving and reduce cable management troubles
- With US Conec MTP® connectors and Corning SMF-28® ultra fiber
Core Specifications
16 Fibers MTP® trunk cable is designed for 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 optics direct connection and supporting 800G transmission for Hyperscale Data Center. With US Conec MTP® connectors and Corning SMF-28® ultra fiber, it is optimized for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
Connector A | US Conec MTP® Female (Pinless) | Connector B | US Conec MTP® Female (Pinless) |
Fiber Mode | OS2 9/125μm SM | Wavelength | 1310/1550nm |
Glass Fiber | Corning SMF-28® Ultra | Fiber Grade | G.657.A1 |
Polish Type | APC to APC | Minimum Bend Radius | 10mm |
Insertion Loss | 0.75dB Max (0.15dB Typ.) | Return Loss | ≥60dB |
Attenuation at 1310nm | ≤0.32dB/km | Attenuation at 1550nm | ≤0.18dB/km |
Jacket OD | 3.0mm | Cable Jacket | Plenum (OFNP) |
Installation Tensile Load | 66N | Tensile Strength (Long/Short Term) | 80/240N |
Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -40 to 85°C (-40 to 185℉) |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
