Feature
- FC, SC, ST, LC adapter patch panel for option
- price unbeatable
- Shortest delivery time
Core Specifications
The function of the ODF unit is fiber cable splicing, fixation and storage, fiber cable terminating, wiring, distribution and protection of the fiber cables and pigtails.It can be used as a fiber distribution frame in a 19-inch cabinet, or it can be used in a cabinet similar to a digital distribution unit and an audio distribution unit to form an integrated distribution frame. The device is flexible in configuration, simple in installation, and easy to maintain. It is an indispensable device for fiber-optic communication cable network terminals or relay stations to realize cable splicing and fiber-optic cable splicing and access.
Feature:
1.Standard size, light weight and reasonable structure
2.Splice tray inside changeable
3.Can be used in 19”, 23” standard distribution frame
4.Suitable for ribbon and single fiber
5.Various panel late to fit different adapter interface
6.12C,24C, 36C, 48C, 72C, 96C optional, with or without fiber optic pigtails and adapters
7.Easy for management and operation
8.Customizable color and LOGO
Application:
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV

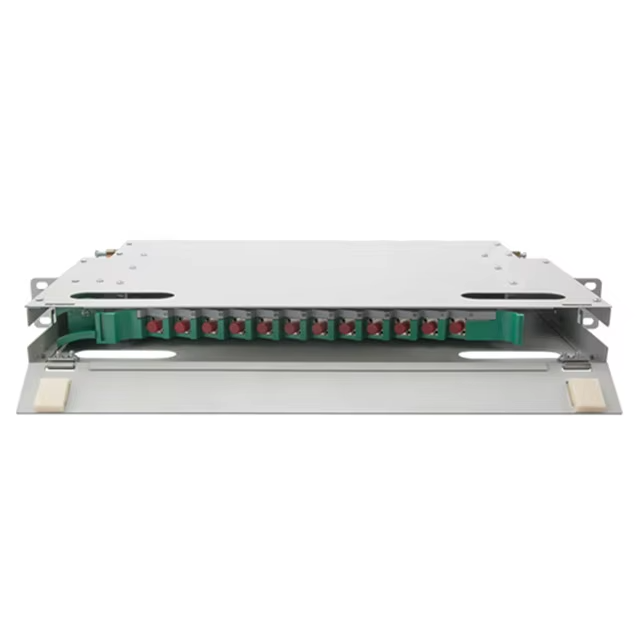

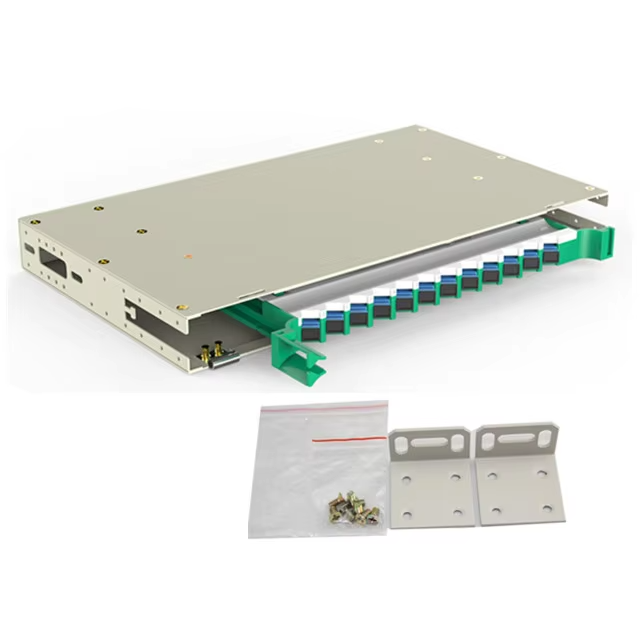

| Product name | 12Ports Optical Distribution Frame ODF |
| Installation type | Rack mount |
| Connector | ST, FC, LC or ST for option |
| Connector Type | Singlemode or multimode |
| Size | 1U 19″ |
| Simplex or Duplex | SC Simplex, LC Duplex |
| Material | Cold rolled steel sheet |
| Application | For FTTH Cable distribution |
| Color | Grey White |
| Warranty | Limited life |
| Product Keywords | fiber optic patch panel,odf,odf cabinet |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
