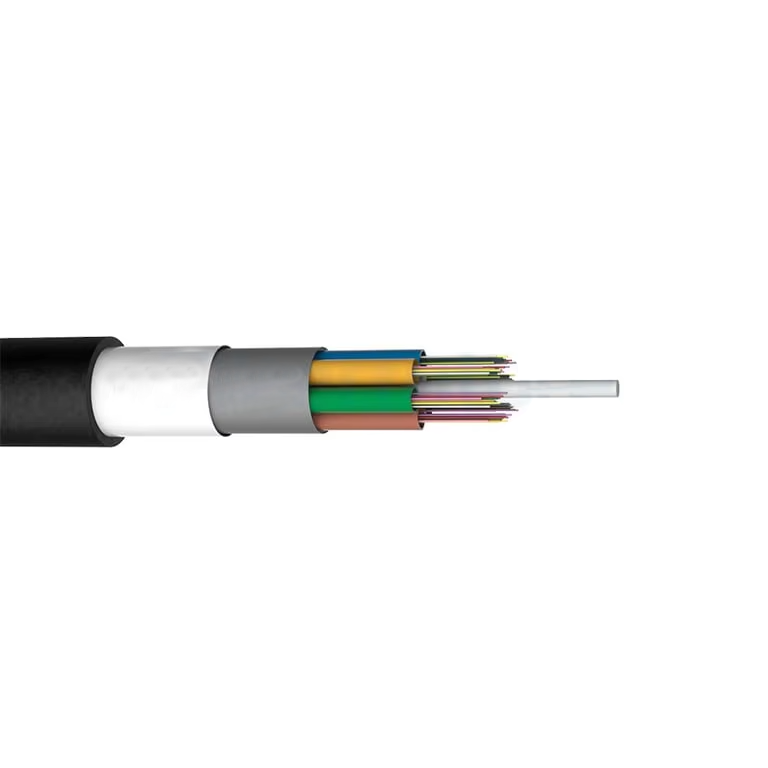

2-144 core All Dielectric Non Metallic Armored Anti rodent Glass Yarn Fiber Optic Cable

2-144 core All Dielectric Non Metallic aerial / duct anti-rodent FRP Yarn Fiber Optic Cable

We are a 2-144 core All Dielectric Non Metallic aerial / duct anti-rodent FRP Yarn Fiber Optic Cable Manufacturer. We supply fiber optic cables in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.

Feature

2-144 core All Dielectric Non Metallic aerial / duct anti-rodent FRP Yarn Fiber Optic Cable

Core Specifications

Description:

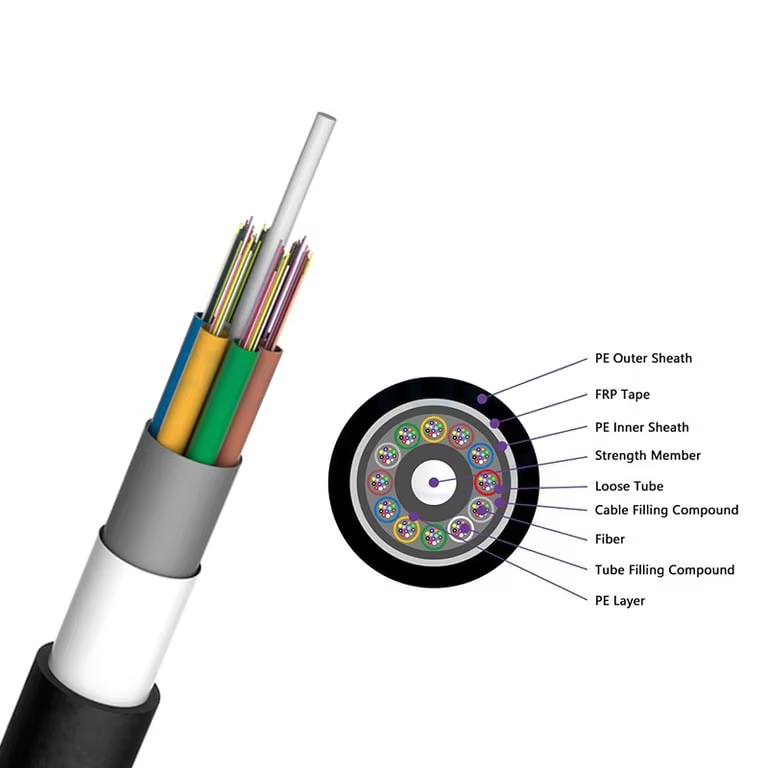

GYFTY73 is designed with physical anti-rodent measure. Single-mode/multimode fibres are housed in loose tubes that are made of high-modulus plastic. The tubes are stranded around a central strength member to form a cable core. The core is filled with cable filling compound. Then an inner PE sheath is extruded and armored with FRP tape. Finally, a PE outer sheath is extruded.

Features:

  1. Physical anti-rodent method, green and environment-friendly
  2. Accurate process control ensuring good mechanical and temperature performances
  3. The material of loose tubes with good hydrolysis resistance and relatively high strength
  4. Tube filling compound providing key protection for fibres
  5. FRP tape armor providing good anti-rodent performance



Applications:

  1.  All-dielectric design, applicable to lightning-prone areas
  2.  Applicable to aerial and duct installations with anti-rodent and anti-lightning requirements

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
