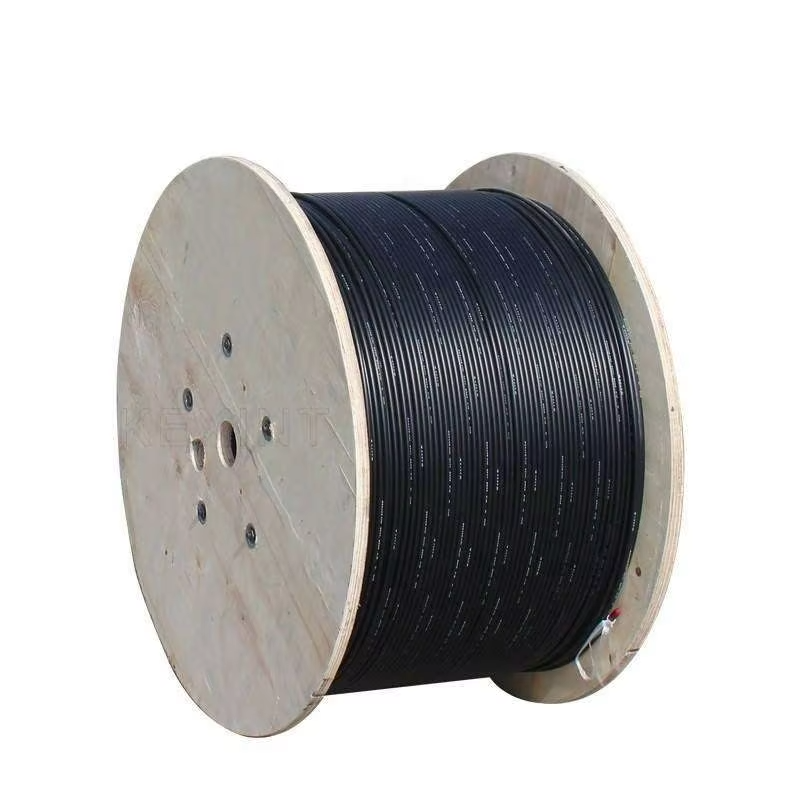

2-24 core Aerial Anti-rodent Double Armored Central Loose Tube PE anti-rodent  Fiber Optic Cable

2 core – 24 core Central Loose Tube Armored Fiber Optic Cable GYXTS

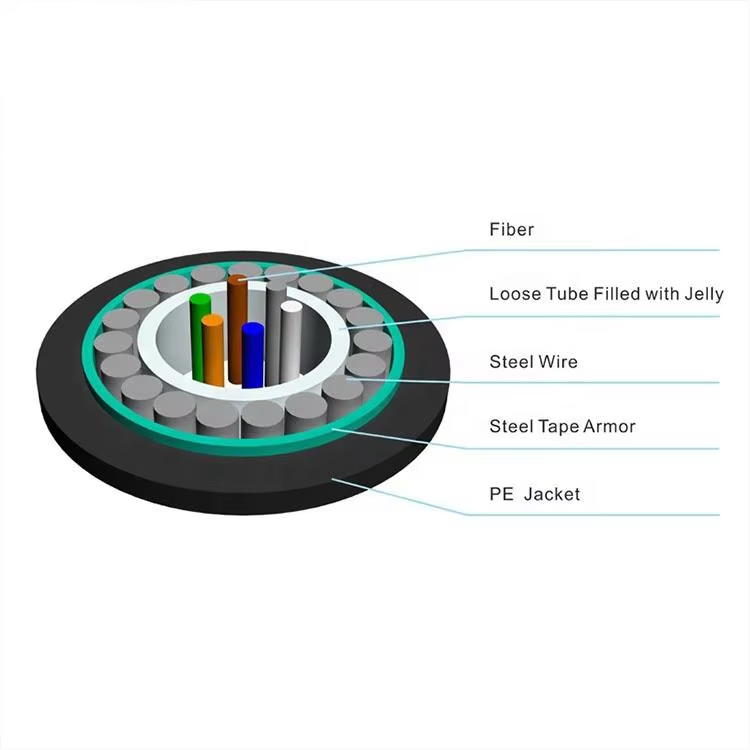

The single-mode or multi-mode fibers are positioned in a loose tube made of the high modulus plastic.The tube is filled with water-resistant filling compound.Over the tube,water-blocking material is applied to keep the cable watertight.After wrapping of steel braiding,the cable core is wrapped with a layer of corrugated steel tape.Finally,the cable is sheathed by PE sheath.

Feature

2 core – 24 core Central Loose Tube Armored Fiber Optic Cable

Core Specifications

ItemSpecification
Fiber typeSingle mode
Fiber materialDoped silica
Attenuation coefficient
@ 1310 nm£ 0.35 dB/km
@ 1383 nm£ 0.32 dB/km
@ 1550 nm£ 0.21 dB/km
@ 1625 nm£ 0.24 dB/km
Point discontinuity£ 0.05 dB
Cable cut-off wavelength£ 1260 nm
Zero-dispersion wavelength1300 ~ 1324 nm
Zero-dispersion slope£ 0.092 ps/(nm2.km)
Chromatic dispersion£3.5 ps/(nm. km)
@ 1288 ~ 1339 nm£5.3 ps/(nm. km)
@ 1271 ~ 1360 nm£18 ps/(nm. km)
@ 1550 nm£22 ps/(nm. km)
@ 1625 nm
PMDQ (Quadrature average*)£0.2 ps/km1/2
Mode field diameter @ 1310 nm9.2±0.4 um
Core / Clad concentricity error£ 0.5 um
Cladding diameter125.0 ± 0.7 um
Cladding non-circularity£1.0%
Primary coating diameter245 ± 10 um
Proof test level100 kpsi (=0.69 Gpa), 1%
Temperature dependence£ 0.1 dB/km
0oC~ +70oC @ 1310 & 1550nm

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
