Feature
- we can custom fiber Patch cord cable structure, fiber count, connector types, length, package for you.
- price unbeatable
- Shortest delivery time
- Slide out drawer for easy cable management
- Suitable for different adapters: FC, SC, ST, LC
- Front access panel design for easy operation
Core Specifications

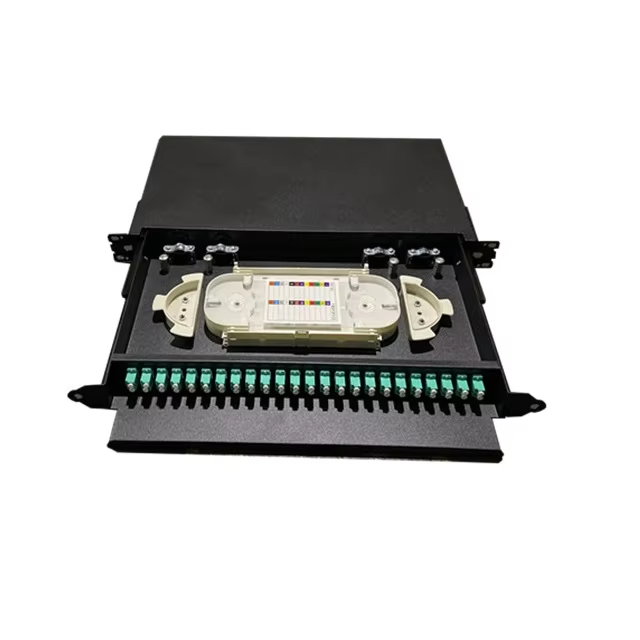

| Product name | 19″ Rack mount fiber distribution patch panel enclosure 1u fdu panel slide out 24 ports sc simplex lc duplex |
| Connector Type | Singlemode or multimode |
| Size | 1U 19 |
| Weight | 3.5kg/pc |
| Simplex or Duplex | SC Simplex or LC Duplex |
| Color | Black or Grey |
| Material | Metal |
| Application | For Cable distribution |
| Warranty | Limited life |
| Fibers | 24 SC Simplex or 24 LC Duplex |
| Product Keywords | termination ODF 24 core,rackmount patch panels,fiber optic distribution box rackmount |
Description:
Fiber patch panel series of optic distribution boxes ,which are middle capacity and both side operation applicable in the branch connection of fiber termination ,working as distribution box.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
Feature:
Standard size, light weight and reasonable structure
Slide out drawer for easy cable management
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
With metal front cover
splice trays (each 24 fibers)
Max. capacity 288 fibers
4 fiber cable entry ports at rear side
White or black color
More Types for Option
| Type | Size |
| 1U 12-24 fibers | 485*295*47mm |
| 2U 48-72 fibers | 485*250*90mm |
| 3U 96 fibers | 485*310*120mm |
| 4U 144-288 fibers | 485*295*180mm |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
