| Model Name: | H1Z2Z2-K | Size: | 2.5 Sqmm |
|---|---|---|---|
| Nominal Voltage: | Uo/U=1000VAC, 1500VDC | Conductor Type: | Tinned Fine Re Copper Strand |
| Sheath: | Polyolefin Copolymer Electron-beam Coss-linked | Certification: | TUV |
| Application: | Power Station, PV Power Dc,ac System | Color: | Black/Red,Optional |
| High Light: |
2.5 Sqmm Photovoltaic solar pv wire, 2.5 Sqmm 2.5mm solar pv wire, H1Z2Z2-K Outdoor 2.5 mm solar cable |
||

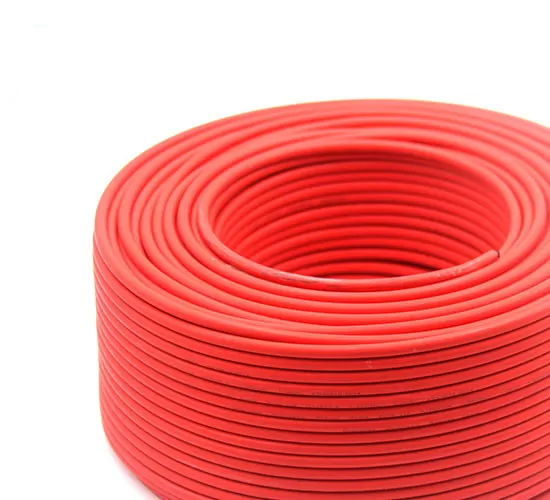

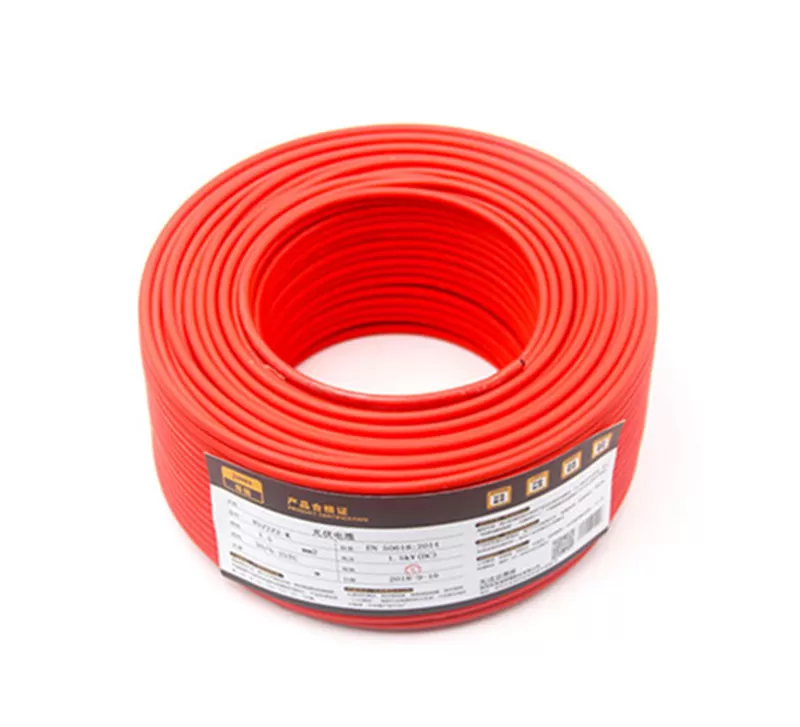

2.5mm Solar PV Wire Photovoltaic Cable Outdoor / Indoor Climate Resistance
Low smoke halogen-free, flexible, single-core power cables with crosslinked insulation and sheath photovoltaic cables
1. Application:
For use at the direct current (d.c.) side of photovoltaic systems, with a nominal d.c. voltage of 1,5 kV between conductors and between conductor and earth.
2. Construction:
1. Core Conductor: Stranded Tinned copper
2. Popular sizes: 1core × 1.5~16mm²
3. Insulation : XLPE
4. Jacket : XLPE
5. Other specs:
a) Temperature rating: -40C up to +120℃
b). Fire performance: IEC 60332-1
c). Approval: TUV
d). Voltage suitable: 1.5kV DC
3. Characteristic:
High heat-resistant flame retardant
• halogen-free
• climate resistance
• minimum bending radius: Φ ≦ 12mm:3XD
Φ > 12mm:4XD
• halogen-free:
Not contain hydrochloric acid comply with EN50627-2-1
Not contain fluorinecomply with EN60684-2
• Flame retardant from extinguish compy with IEC60332-1-
2+EN60332-1-2
4. Advantage:
| 99% High-purity Oxygen-free Copper | High quality tin-plated copper, high purity, anti-aging, high Electrical conductivity, low loss, strong current carrying capacity, High corrosion resistance, and can adapt to the outdoor harsh Environment. |
| Low Eccentricity | Thickness uniformity, effectively prevent the current breakdown Fire, to ensure safety. |
| Double Protection | The solar photovoltaic cable adopts insulation and Jacket double Protection structure to extend the service life of the cable |
| High-performance Polymer Materials | Insulating and jacket all use environmentally friendly low-smoke Halogen-free flame-retardant cross-linked polyolefin materials, With wear-resistant, high temperature, oil, ozone, UV, high flame Retardant properties. |
| Strong Flexibility | Cable has a pressure, bending, strong toughness. |
| Long Service Life | Normal outdoor use, service life> 25 years |
| Advanced Equipment | The company has advanced foreign production, scientific research Equipment, passed the ISO9001-2015 quality management System certification. |
5. Packing and shipping: We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
6. Ordering Options:
For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :
1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material : PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.
If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.

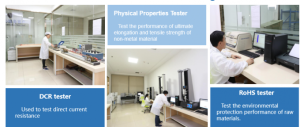

Lboratory
3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,
including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,
High Frequency Laboratory etc. Equipped with over 50 advanced equipment and technologies.
