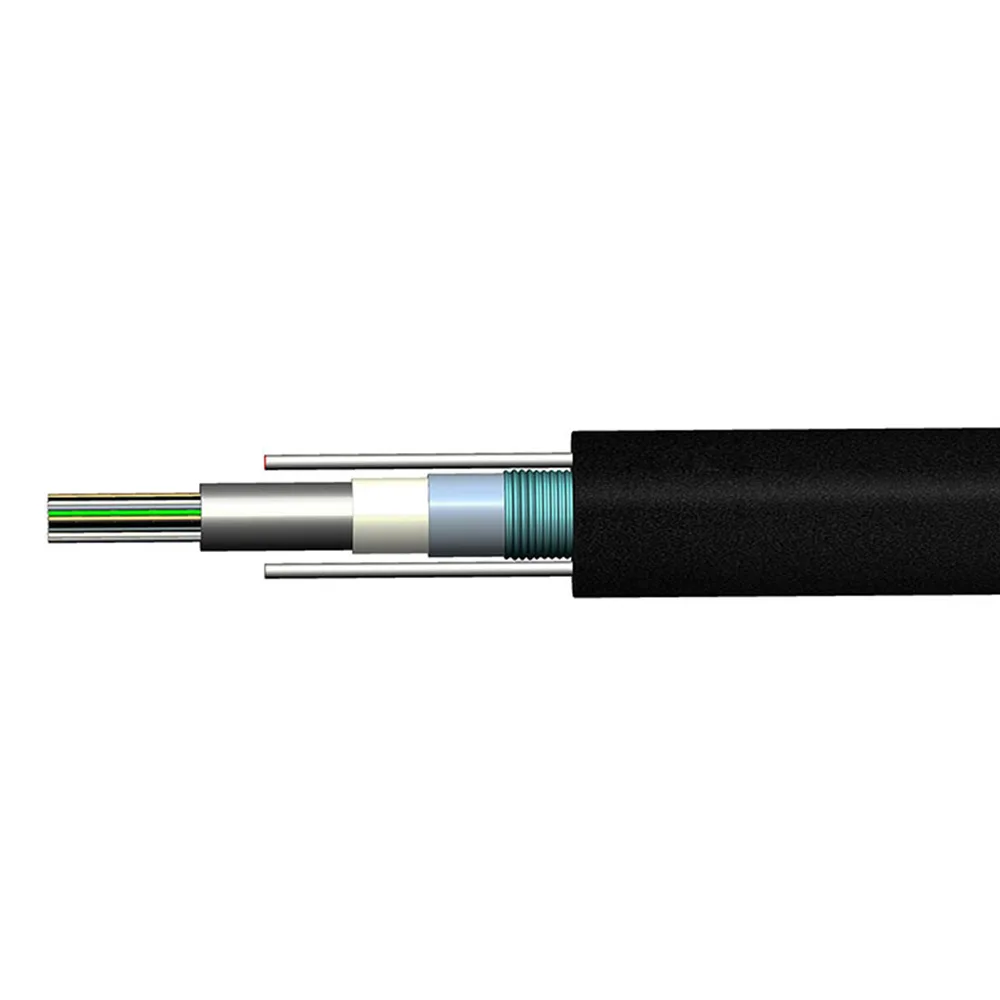

Duct , Aerial Center Loose Tube Light-Armored Optical Fiber Cable

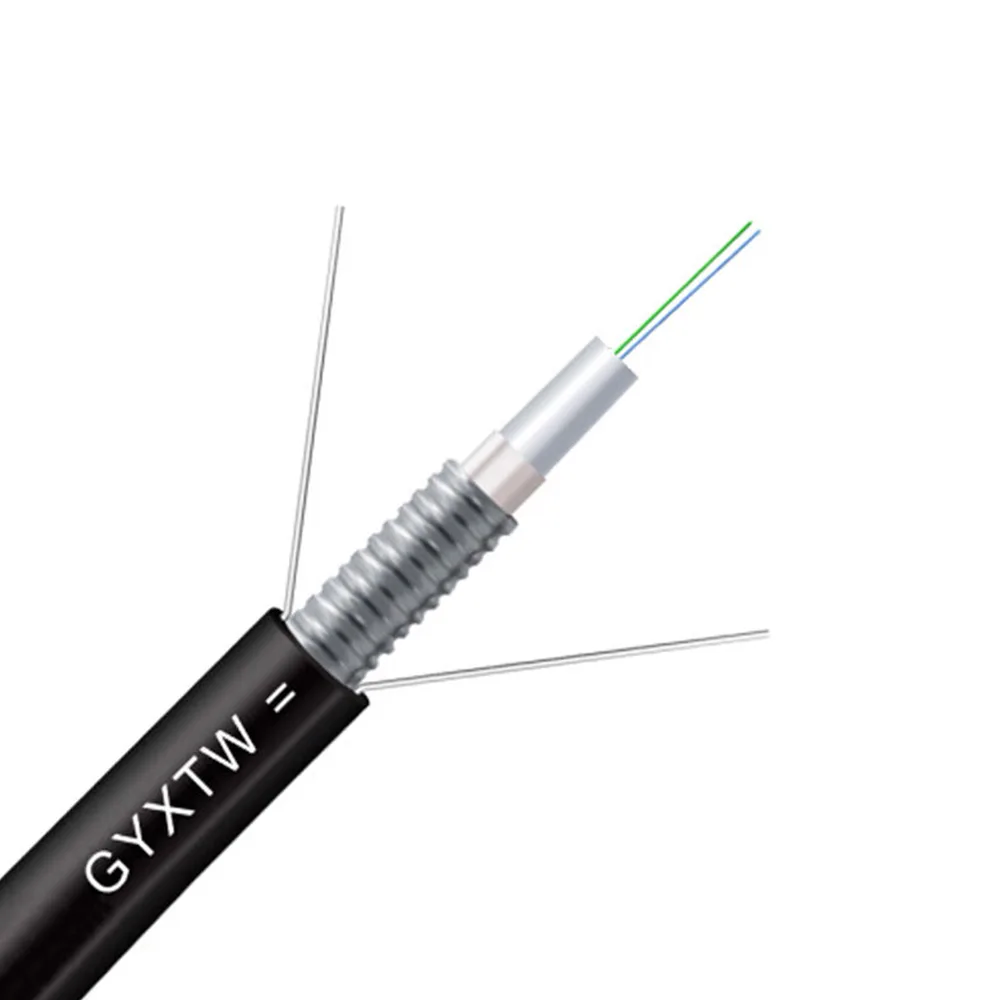

1-24 Core Duct , Hanging Aerial Center Loose Tube Light-Armored Optical Fiber Cable (GYXTW)

We are a manufacturer of Duct , Aerial Armored Optical Fiber Cable. We supply Cable in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Duct , Aerial Armored Optical Fiber Cable quality is excellent, price is unbeatable.
Product Attributes:
Model:
  • GYXTW

Feature

Duct , Aerial Center Loose Tube Light-Armored Optical Fiber Cable

Core Specifications

Structions

Items

Descriptions

Optical fiber

Category

SM / MM

Count

2-24

Color

Blue、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua

When 24 fibers per tube,the second set of 12 fibers with black rings is separated from the first set of 12, and the color of NO.20 fiber can be replaced by natural.

Loose tube

Tube color

Natural

Material

PBT

Infilling

Fiber jelly

 Strength member

2xPhosphating steel wire

Water-blocking material

Water-blocking tape

Armored layer

Corrugated steel tape

Outer sheath

Diameter(mm)

6.8-9.0

7.0-7.3

Material

PE/Black

Optical Fiber Characteristics

Single mode

Category

G652D

(1310nm/1550nm)

G657A1

(1310nm/1550nm)

G657A2

(1310nm/1550nm)

Attenuation

Typical

0.36dB/km/0.22dB/km

0.36dB/km/0.22dB/km

0.36dB/km/0.22dB/km

Max

0.4dB/km/0.3dB/km

0.4dB/km/0.3dB/km

0.4dB/km/0.3dB/km

Zero dispersion slope

≤0.091ps/km·nm2

≤0.092ps/km·nm2

≤0.092ps/km·nm2

Chromatic dispersion(1285-1340nm)

-3.5-3.5ps/(nm·km)

-3.5-3.5ps/(nm·km)

-3.5-3.5ps/(nm·km)

MFD(@1310nm)

9.2±0.4μm

8.8±0.4μm

8.8±0.4μm

Cut-off wavelength

≤1260nm

≤1260nm

≤1260nm

Min bending Radius

16mm

10mm

7.5mm

Cladding diameter

125±1.0μm

125±1.0μm

125±1.0μm

Multi mode

Category

62.5/125μm

(850nm/1300nm)

50/125μm

(850nm/1300nm)

BIOM3

(850nm/1300nm)

BIOM4

(850nm/1300nm)

Attenuation

Typical

3.0dB/km/1.0dB/km

3.0dB/km/1.0dB/km

3.0dB/km/1.0dB/km

3.0dB/km/1.0dB/km

Max

3.5dB/km/1.5dB/km

3.5dB/km/1.5dB/km

3.5dB/km/1.5dB/km

3.5dB/km/1.5dB/km

Bandwidth(MHz·km)

≥200/≥500

≥500/≥500

≥1500/≥500

≥3500/≥500

Effective mode bandwidth(MHz·km)

—-/—-

—-/—-

≥2000/—-

≥4700/—-

Min bending Radius(mm)

30

30

7.5

7.5

Cladding diameter



125±1.0μm

125±1.0μm

125±1.0μm

125±1.0μm

Mechanical and Environmental performance:

Items

Long-term

Short-term

Tensile performance

600N

1500N

Crush resistance

300N/100mm

1000N/100mm

Min bending radius(“D” is the  diameter of the cable)

Static:10D

Dynamic:20D

Installation temperature

-20℃~﹢60℃

Operating temperature

-40℃~﹢70℃

The mechanical properties of other optical fibers and optical cables shall meet the international standards of IEC60793 or IEC60794

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
