Factory FTTH Fiber Optic Field Assembly SC APC Fast Communication Equipment SM MM SC UPC Fiber Fast Connector

Fiber Optic Fast connector is used for field-installable optical fiber connector. It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high efficiency for installation, the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. Adapted fiber pre-installed structure, and convenient for field installation.

Feature

Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.

Core Specifications

arameters	SC/UPC	SC/APC	FC/UPC	LC/UPC
Application	Drop Cables, Indoor Cables
Fiber Diameter	125um (G.657 A1/A2)
Fiber Mode	Single Mode 0.9 2.0 3.0
Max. Insertion Loss	0.5dB, Typical 0.3dB			0.3dB
Min. Return Loss	40	45	40	45
Min. Fiber Retention	5N		5N	4N
Min. Cable Retention	10N		10N	8N
Tensile Load	50N		50N	10N
Operating Temperature Range	-40℃ to 75℃

FAQ

1.Are you the real manufacturer?

Yes. We are the real manufacturer with more than 500 staff.

2.How many years have you been in the field of fiber optics ?

Since 2001.

3.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

10 years for Lan cable , 25 years for fiber optic cable

5.Which kind of certification you have ?

ISO9001, SGS, UL, CPR, CE, RoHs

6.What is your delivery time?

Usually within 10-15 working days

7.What about your annual production capacity?

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8.What is your payment way?

T/T, L/C, Western Union and Ali pay.

9.Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.

We are a manufacturer of Pigtail SC FC LC ST MTRJ MU MPO Armoured Waterproof Optical Fiber Optic Pigtail. We supply fiber patch cord cable in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.

New Outdoor Optical fiber Cable Air blown Micro cable GCYFY 24 cores to288 cores

Optical fiber are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a non-metallic central strength member and surrounded with dry water-blocking material to form a cable core.

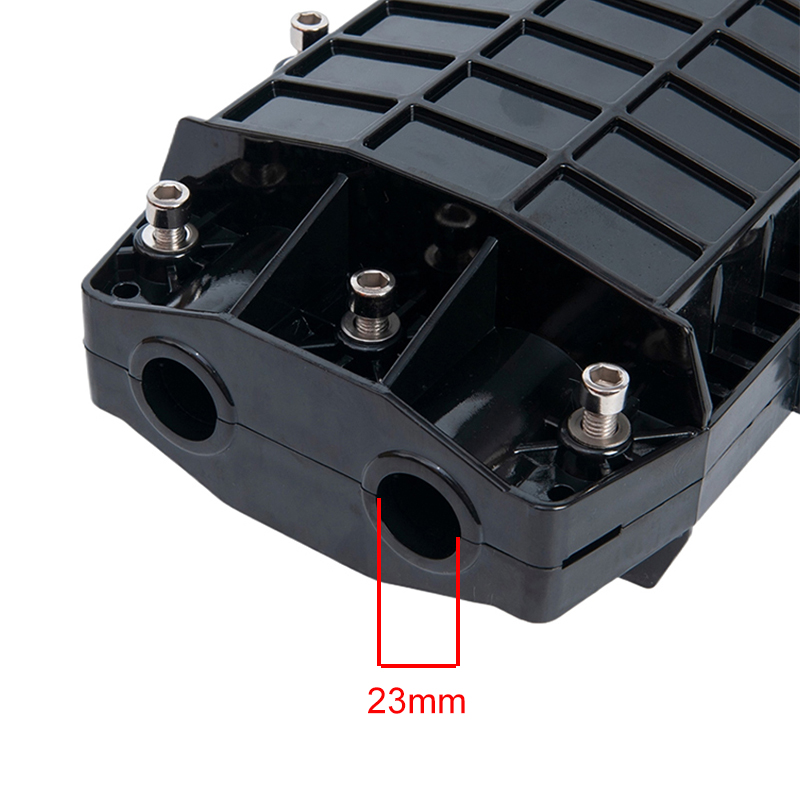

OW-F011 96 Core Fiber Optic Closure(2 in 2 out)

optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. They are applicable to situations such as overhead, man-well of pipeline, embedded situation etc. Comparing with terminal box, the closure requires much stricter requirement of seal.
