Feature
- We wholesale MPO / MTP cable at unbeatable price
- Excellent Quality
- Custom core count - OK
- Custom length - OK
- Custom package - OK
- Custom Color - OK
- Rapid delivery
Core Specifications

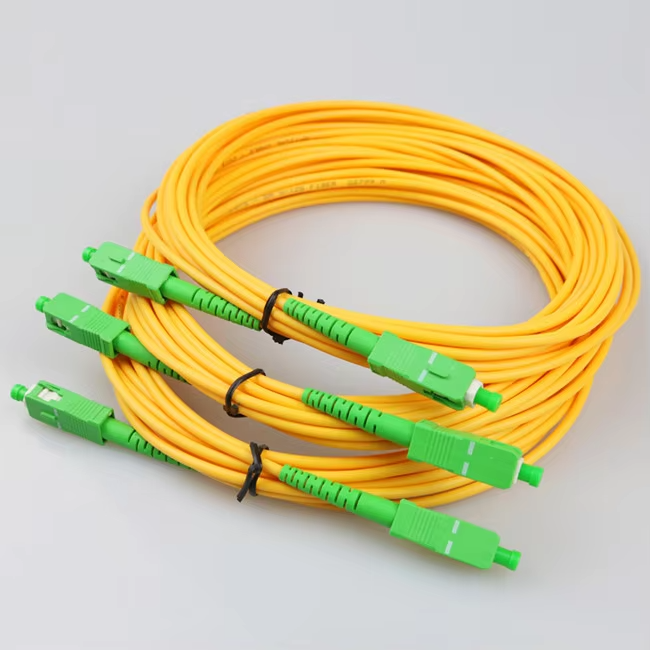

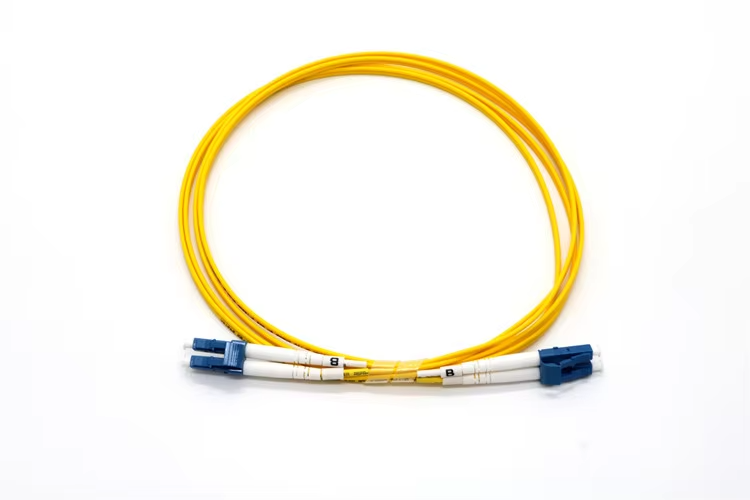

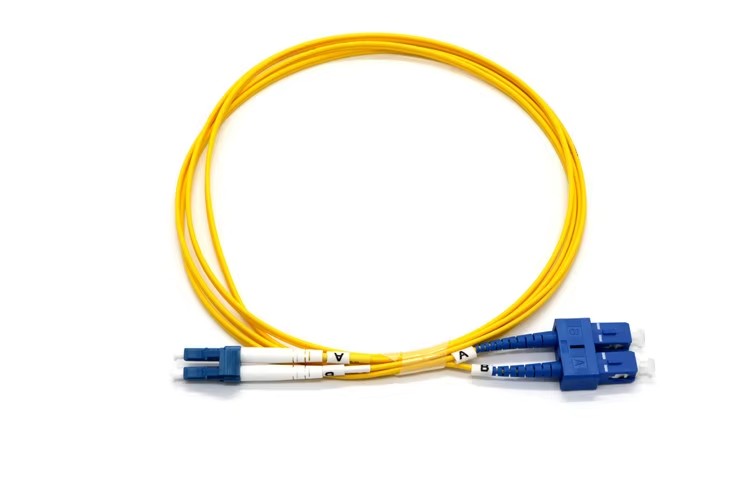

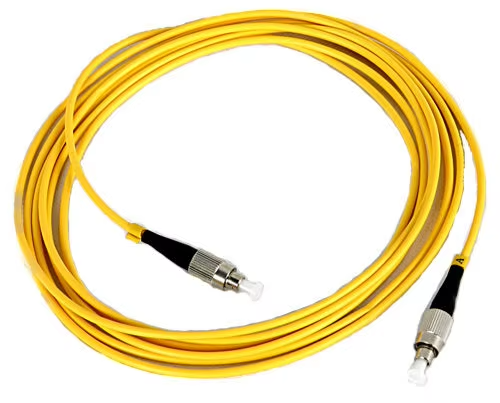

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center.
Owire provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.
Description
- Cable Color: Yellow
- Fiber counts: 1 Fiber (Simplex)
- Fiber type: Singlemode (9/125um)
- Connector type: ST-SC
- Connector counts: 2 connectors
Application
- Telecommunication
- CATV, FTTH, LAN
- Fiber oiptic sensors
- Optical transmission system
- Test equipment
Features
- Screw-thread coupling mechanism
- Ceramic ferrules connectors
- Low insertion loss, high return loss
- Excellent mechanical endurance
- High credibility and stability
- Good in repeatability and exchangeability
- 100% Insertion, Return Loss, End Face and Interference inspection
Specification
Parameter | Unit | FC, SC, LC | ST, MU | MTRJ, MPO | |||||||
SM | MM | SM | MM | SM | MM | ||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
Insertion Loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
Repeatability | dB | ≤0.1 | |||||||||
Durability | dB | ≤0.2dB typical change, 1000 matings | |||||||||
Operating temperature | ºC | -20 ~ +75 | |||||||||
Storage temperature | ºC | -40 ~ +85 | |||||||||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
