Feature
- We wholesale fiber optic splitters at unbeatable price
- Excellent Quality
- Custom connector type - OK
- Custom connector count - OK
- Custom package, sticker - OK
- Custom Color - OK
- Rapid delivery
Core Specifications

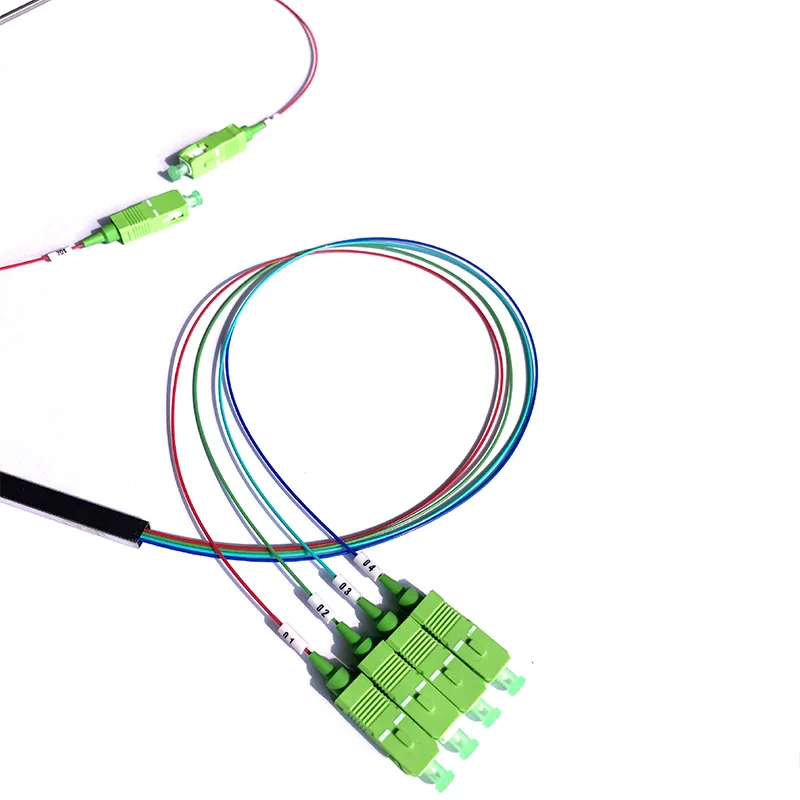

Planar Lightwave Circuit (PLC) splitter is one type of optical power management device that is fabricated using silica optical waveguide technology. It features a small size, high reliability, wide operating wavelength range, and good channel-to-channel uniformity.
Also, PLC splitter is widely used in PON networks to realize optical signal power splitting.
| Item | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Length*Width*Height (mm) | 60x7x4 | 60x7x4 | 60x7x4 | 60x14x4 | 80×20×6 | 100×40×6 | / |
| Fiber Type | G657A | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Standard Insertion Loss (dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.0 | ≤20.6 | ≤23.8 |
| Uniformity (dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| Return Loss (dB) | APC≥55,UPC≥50 | ||||||
| Directivity (dB) | ≥55 | ||||||
| Operating Temperature | -40℃ ~ +85℃ | ||||||
| Note: The above parameter is for splitter with connector. If w/o connector, insertion loss will reduce | |||||||
| by 0.2dB,if with adapter,insertion loss will add 0.2dB. | |||||||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
