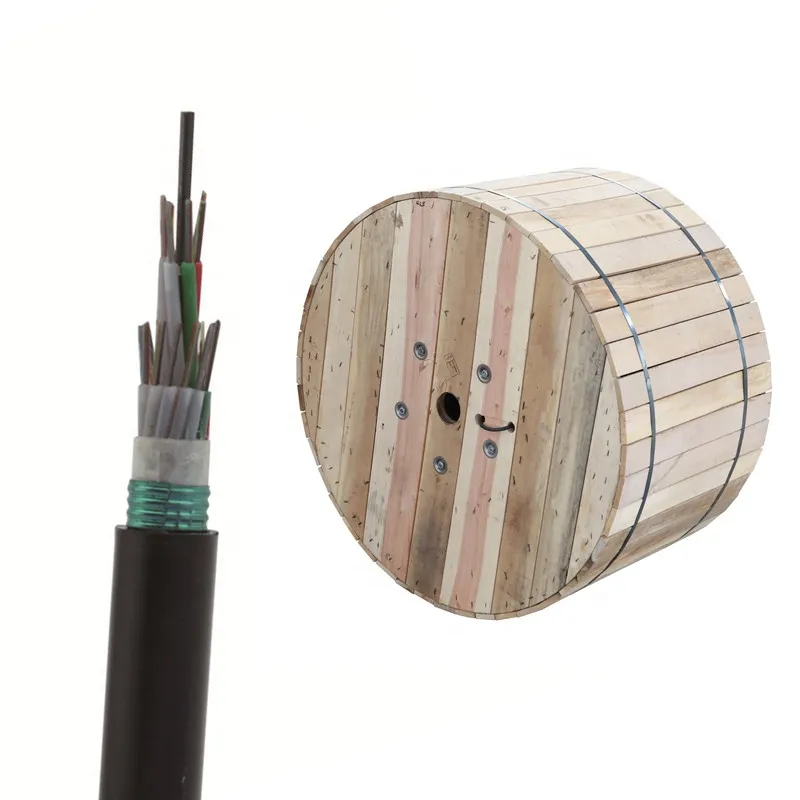

Owire GYTS Standard Loose Tube Steel Tape Armored Cable

Owire GYTS Standard Loose Tube Steel Tape Armored Cable

$
GYTS Multi-Loose Tube Corrugated Steel Armored 48 Core 96 Core fiber optic cable Armored Loose Tube Single Jacket/SingleArmor fiber optic cable with fibers placed in loose buffertube stranded around central strength member.The cable core is protected with jelly to prevent water intrusion and migration,with a corrugated steel tape armorwhich provides rigid protection, rodent resistance and cover with a black Polyethylene out jacket.

Feature

Owire GYTS Standard Loose Tube Steel Tape Armored Cable

Core Specifications

OpticaL Charateristics

Fiber Type

G.652

G.655

50/125^m

62.5/125^m

Attenuation

(+20X)

850 nm





<3.0 dB/km

<3.3 dB/km

1300 nm





<1.0 dB/km

<1.0 dB/km

1310 nm

<0.36 dB/km

<0.40 dB/km





1550 nm

<0.22 dB/km

<0.23 dB/km





Bandwidth

850 nm





>500 MHz-km

>200 Mhz-km

1300 nm





>500 MHz-km

>500 Mhz-km

Numerical Aperture





0.200±0.015 NA

0.275±0.015 NA

Cable Cut-off Wavelength cc

<1260 nm

<1450 nm







  Structure and Technical Specifications

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Max Fiber
Per Tube

Max No. of
(Tubes+fillers)

Allowable Tensile Load

(N)

Allowable Crush Resistance
(N/100mm)

Short Term

Long Term

Short Term

Long Term

2~30

9.7

96

6

5

1500

600

1800

800

32~48

10.7

111

8

6

1500

600

1800

800

50~72

11.6

136

12

8

2000

600

1800

800

74~96

13.0

166

12

10

2000

600

1800

800

98~144

15.1

228

12

12

2500

600

1800

800

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
