Feature
- we can custom fiber cable structure, fiber count, length, package for you.
- price unbeatable
- Shortest delivery time for you, we produce 2000KM / day
- 1-12 fiber cores
- 900µm tight buffer
- Strength Member: Aramid yarn
- Outer Jacket: UV and Flame resistant LSZH
- FiberType: G.652D, G.657A1 or G.657A2 single mode fiber
Core Specifications
Fiber:
1-12fibers
900µm tight buffer
Strength Member:
Aramid yarn
Messenger Member:
non-metallic member.
Outer Jacket:
UV and Flame resistant LSZH
FiberType: G.652D, G.657A1 or G.657A2 single mode fiber
Features
Good UV and flame resistant.
Compact, soft, flexible, easy to install.

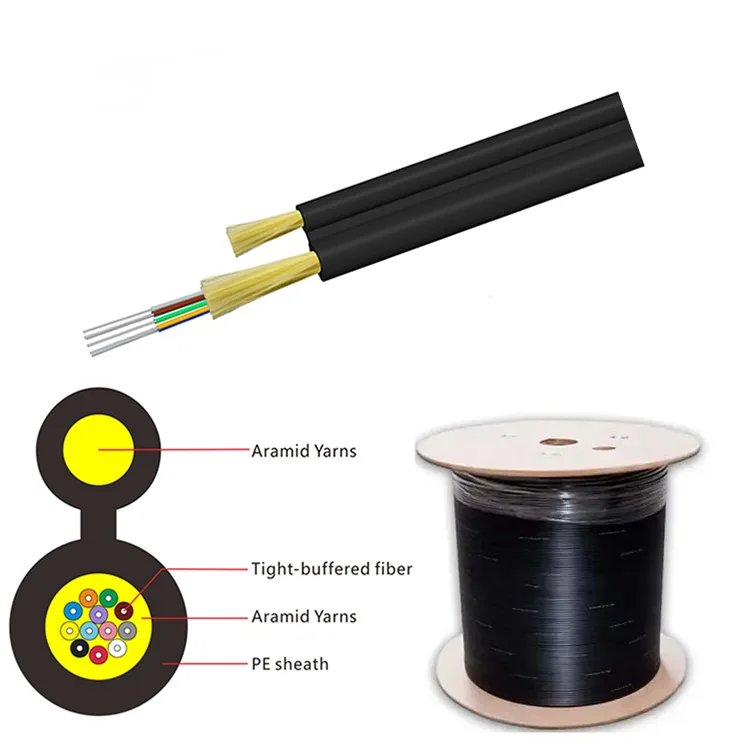

Fig8 self-supporting design.
Applications
Used in access network oras access cable from outdoorto indoor in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.
Structions
Optical fiber | Count | 1 | 2 | 4 | 4 | |
Category | SM/MM | |||||
Tight buffer fiber | Diameter(mm) | 0.6±0.05 / 0.85±0.05 | 0.6±0.05 | 0.85±0.05 | ||
Material | LSZH/PVC | |||||
Messenger member | Phosphating steel wire / Galvanized steel wire / Stranded galvanized steel wire | |||||
Strength member | Aramid yarn | |||||
Outer sheath | Color | Black | ||||
Diameter(mm) | (3.5±0.2)x(6.5±0.3) | 5.0±0.2)x(8.0±0.3) | ||||
Thickness(mm) | ≥0.65 | 0.8±0.1 | ||||
Material | LSZH | |||||
Optical Fiber Characteristics
Single mode
Category | G652D （1310nm/1550nm） | G657A1 （1310nm/1550nm） | G657A2 （1310nm/1550nm） | |
Attenuation | Typical | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km |
Max | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | |
Zero dispersion slope | ≤0.091ps/km·nm2 | ≤0.092ps/km·nm2 | ≤0.092ps/km·nm2 | |
Chromatic dispersion（1285-1340nm） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | |
MFD（@1310nm） | 9.2±0.4μm | 8.8±0.4μm | 8.8±0.4μm | |
Cut-off wavelength | ≤1260nm | ≤1260nm | ≤1260nm | |
Min bending Radius | 16mm | 10mm | 7.5mm | |
Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Multi mode
Category | 62.5/125μm （850nm/1300nm） | 50/125μm （850nm/1300nm） | BIOM3 （850nm/1300nm） | BIOM4 （850nm/1300nm） | |
Attenuation | Typical | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km |
Max | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | |
Bandwidth（MHz·km） | ≥200/≥500 | ≥500/≥500 | ≥1500/≥500 | ≥3500/≥500 | |
Effective mode bandwidth（MHz·km） | —-/—- | —-/—- | ≥2000/—- | ≥4700/—- | |
Min bending Radius（mm） | 30 | 30 | 7.5 | 7.5 | |
Cladding diameter
| 125±1.0μm | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Mechanical and Environmental performance：
Items | Short-term | Long-term |
Tensile performance | 800N | 400N |
Crush resistance | 1000N/100mm | 300N/100mm |
Min bending radius(“H” is the height of the cable) | Static：10H | |
Dynamic：20H | ||
Installation temperature | -10℃～﹢50℃ | |
Operating temperature | -20℃～﹢60℃ | |
The mechanical properties of other optical fibers and optical cables shall meet the international standards of IEC60793 or IEC60794 | ||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
