Feature
- we can custom fiber cable structure, fiber count, length, package for you.
- price unbeatable
- Shortest delivery time for you, we produce 2000KM / day
- Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable
- PBT loose tube material has good resistance to hydrolysis, filled with special ointment to protect the optical fiber
- Fiber optic cable is non-metallic structure. light weight, easy laving,. ant-electromagnetic, lightning protection effect is better
Cable Specifications

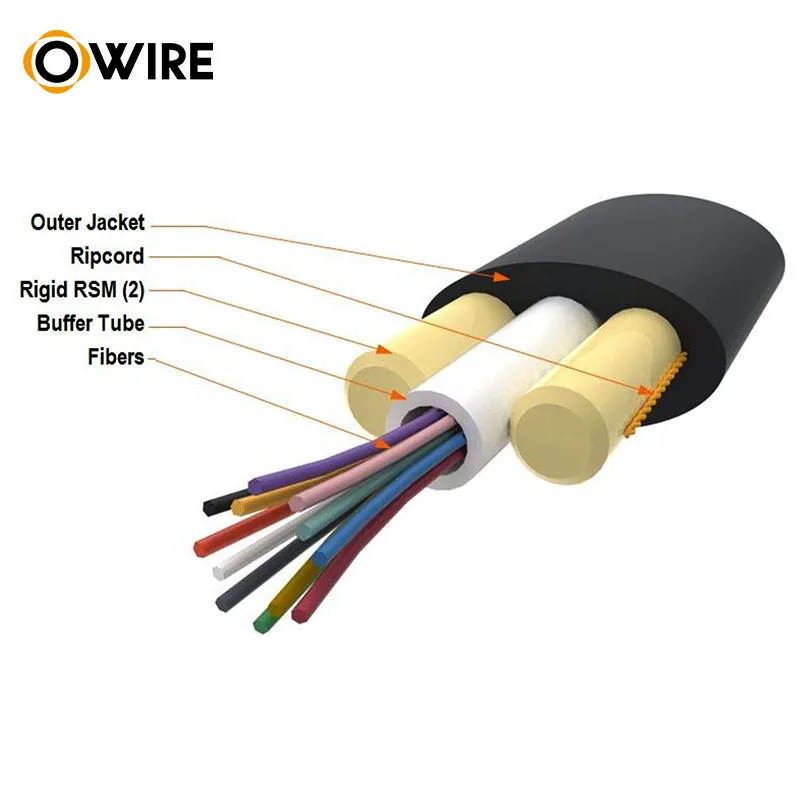

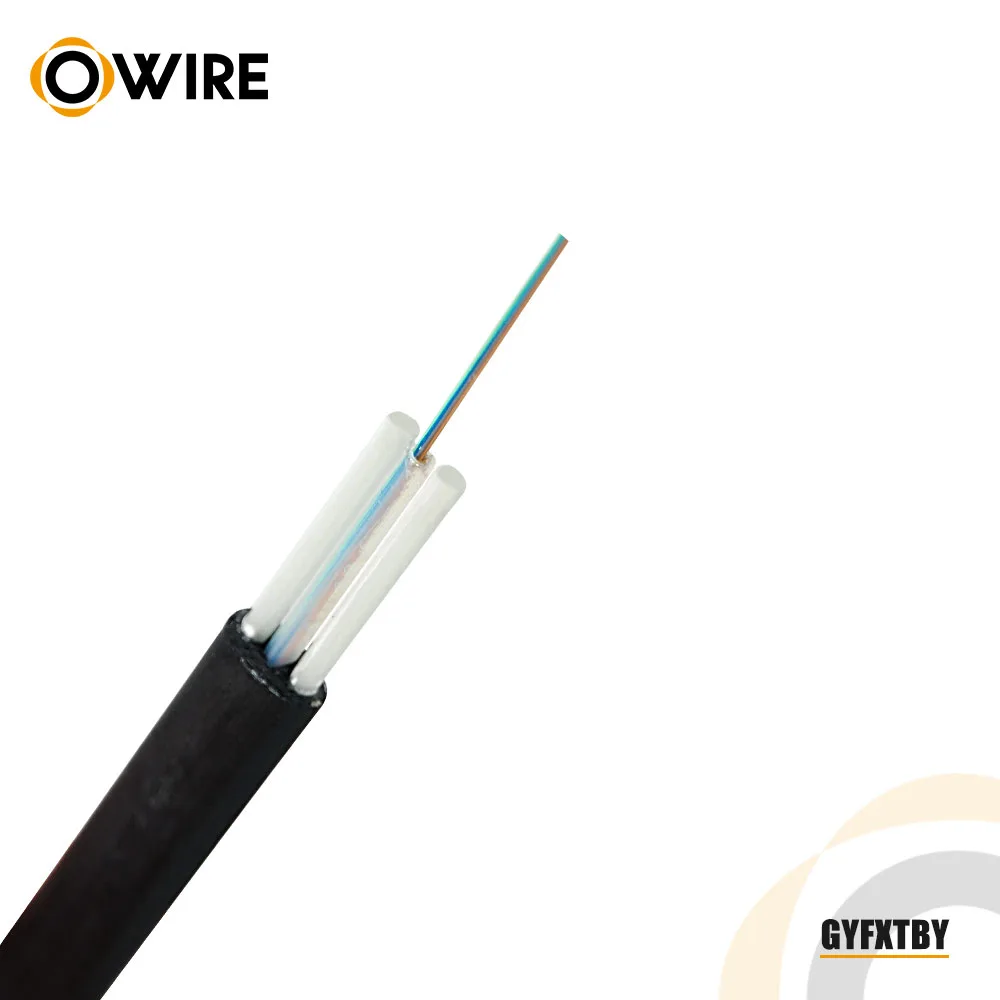

GYFXTBY fiber optic cable is an arc runway fiber cable, which is made of multiple( 1-24 cores ) 250um
colored fibers embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, two non-metallic tensile element ( FRP ) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, and then the high-density polyethylene is extruded to form an HDPE sheath.
Feature:
- Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable
- PBT loose tube material has good resistance to hydrolysis, filled with special ointment to protect the optical fiber
- Fiber optic cable is non-metallic structure. light weight, easy laving,. ant-electromagnetic, lightning protection effect is better
- Larger number of core than ordinary butterfly-shaped optical cable products, suitable for access to more densely populated villages
- Compared with butterfly. shaped optical cable. runway structure products have stable optical transmission performance with no risk of water accumulation, icing and egg cocoon
- improve the construction efficiency
- Easy to peel, reduce the time of pulling out the outer
- It has the advantages of corrosion resistance.UV protection and environmental protection
Structure
Items | Descriptions | |
Optical fiber | Category | SM / MM |
Color | Blue、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua | |
Loose tube | Material | PBT |
Color | Natural | |
Tube filling | Fiber jelly | |
Strength member | FRP | |
Water-blocking material | Water-blocking yarn | |
Ripcord | 1Pcs | |
Outer sheath | Material | PE |
Color | Black | |
Optical fiber characteristics：
Single mode
Category | G652D （1310nm/1550nm） | G657A1 （1310nm/1550nm） | G657A2 （1310nm/1550nm） | |
Attenuation | Typical | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km |
Max | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | |
Zero dispersion slope | ≤0.091ps/km·nm2 | ≤0.092ps/km·nm2 | ≤0.092ps/km·nm2 | |
Chromatic dispersion（1285-1340nm） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | |
MFD（@1310nm） | 9.2±0.4μm | 8.8±0.4μm | 8.8±0.4μm | |
Cut-off wavelength | ≤1260nm | ≤1260nm | ≤1260nm | |
Min bending Radius | 16mm | 10mm | 7.5mm | |
Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Multi mode
Category | 62.5/125μm （850nm/1300nm） | 50/125μm （850nm/1300nm） | BIOM3 （850nm/1300nm） | BIOM4 （850nm/1300nm） | |
Attenuation | Typical | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km |
Max | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | |
Bandwidth（MHz·km） | ≥200/≥500 | ≥500/≥500 | ≥1500/≥500 | ≥3500/≥500 | |
Effective mode bandwidth（MHz·km） | —-/—- | —-/—- | ≥2000/—- | ≥4700/—- | |
Min bending Radius（mm） | 30 | 30 | 7.5 | 7.5 | |
Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Mechanical and Environmental performance：
NO. | Items | Short-term | Long-term |
1 | Tensile performance | 1250N | 600N |
2 | Crush resistance | 1000N/100mm | 300N/100mm |
3 | Min bending radius（“H” is the height of the cable） | Static：10H | |
Dynamic：20H | |||
4 | Installation temperature | -20℃～﹢60℃ | |
5 | Operation temperature | -40℃～﹢70℃ | |
The mechanical properties of other optical fibers and optical cables shall meet the international standard of IEC60793 or IEC60794 | |||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
