| Model Name: | Pv1-f / H1z2z2-k | Size: | 1.5mm2–35mm2 |
|---|---|---|---|
| Rated Voltage: | 0.6/1 KV | Type: | Low Voltage |
| Conductor Type: | Tinned Copper Flexible Conductor | Sheath: | Sunlight Resistant PVC |
| Insulation: | HDPE(High Density Polyethylene) | Application: | Power Station, PV Power Dc,ac System |
| High Light: |
IEC 1.5mm2 Photovoltaic Cable, IEC PVC Sheath Photovoltaic Cable |
||

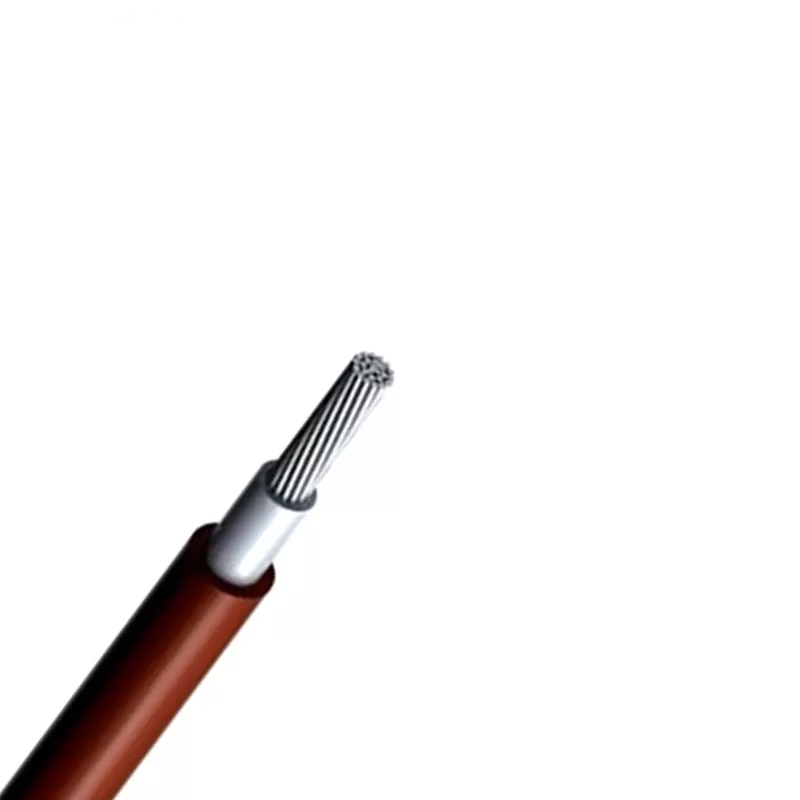

4mm 6mm Single Core DC Solar PV Cable , Photovoltaic Wire Eco Friendly
PV1-F photovoltaic cable is a special cable used for solar photovoltaic modules in the system. It has the characteristics of weather resistance, high temperature resistance, and friction resistance. It has a long service life and high-quality oxygen-free tinned copper conductors. To ensure the superior conductive effect, high-performance insulating materials and sheath materials after radiation cross-linking by a high-energy electron accelerator have reliable insulating and mechanical properties.
H1Z2Z2-K, 1500V DC photovoltaic cable is used in the nominal 1.5KV DC voltage photovoltaic power generation system between the conductor and the conductor, and the conductor and the ground. It is an upgraded product on the basis of the original PV1-F-06/1KV photovoltaic cable. Better anti-aging effect.
Standards&Certificates:
EN 50618:2014;TUV.

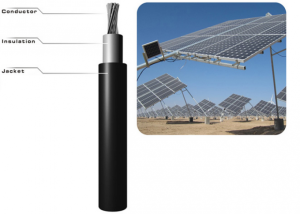

Cable Structure:
| Conductor | Tinned Coppe, according to VDE 0295/IEC 60228, Class 5 |
| Insulation | Electron-beam cross-linked Polyolefin Copolymer TUV2PfG/1169 |
| Sheath | Polyolefin Copolymer electron-beam cross-linked TUV2PfG/1169 |
| Insulation/Sheath colour | black/black, black/blue, red/red, blue/black, black/red,red/black, blue/blue,yellow/green or based on your demand |
Application: PV1-F cable for indoor photovoltaic solar installation of electric equipment line.
Technical Parameter:
| Product specifications(mm²) | Approx.cable diameter | Max resistance of conductor at 20℃ (Ω/km) | Max resistance of conductor at 20℃ (Ω/km) |
| 1.5 | 4.7 | 13.7 | 860 |
| 2.5 | 5.2 | 8.21 | 690 |
| 4 | 5.6 | 5.09 | 580 |
| 6 | 6.3 | 3.39 | 500 |
| 10 | 7.5 | 1.95 | 420 |
| 16 | 8.8 | 1.24 | 340 |
