Feature
- Indoor any purpose cable distribution
- Special bending insensitive fiber provides high bandwidth and excellent communication transmission property

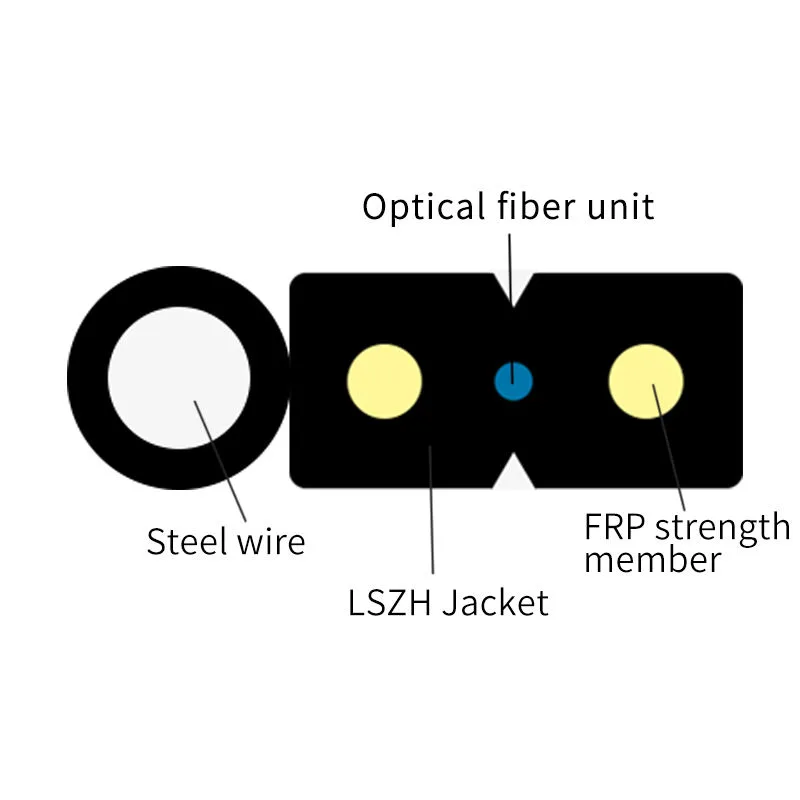

- Two parallel strength members ensure good performance of crush resistance to protect the fiber
- Simple structure,light weight and high practicability
- Novel flute design,easily strip and splice,simplify the installation and maintenance
- Low smoke,zero halogen and flame retardant sheath
Core Specifications
Technical Parameters
| Cable Code | Cable Diameter(mm) | Strength Member Type | Cable Weight(kg/km) | Tensile Strength（N） | Crush Resistance（N/100mm） | Bending Radius（mm） |
| LSZH Sheath | Long/Short term | Long/Short term | Dynamic/Static | |||
| GJXFH-(1-4)C | （3.0±0.1）*（2.0±0.1） | 0.5mm FRP | 9 | 40/80 | 500/1000 | 10H/20H |
| GJXH-(1-4)C | （3.0±0.1）*（2.0±0.1） | 0.4mm Steel wire | 10.3 | 60/120 | 1000/2200 | 10H/20H |
| GJXH-(1-4)C | （3.0±0.1）*（2.0±0.1） | 0.45mm Steel wire | 10.5 | 100/200 | 1000/2200 | 10H/20H |
Steel wire can be Galvanized steel wire or Phosphating steel wire.
Note：“H”is the height of the cable.
Optical Characteristics
| Category | Attenuation | Min bending Radius | |
| Condition | 1310/1550nm | ||
| Typical | Max | ||
| unit | dB/km | dB/km | mm |
| G652D | 0.36/0.22 | 0.4/0.3 | 16 |
| G657A1 | 0.36/0.22 | 0.4/0.3 | 10 |
| G657A2 | 0.36/0.22 | 0.4/0.3 | 7.5 |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
