Feature
- we can custom fiber cable structure, fiber count, length, package for you.
- price unbeatable
- Shortest delivery time for you, we produce 2000KM / day
- Fiber to the home（FTTH）
- Distributing network, ODF connection
- Tight buffer fiber easy of stripping.
- Aramid yarn as self-supporting strength member make cable have excellent tensile strength.
Core Specifications

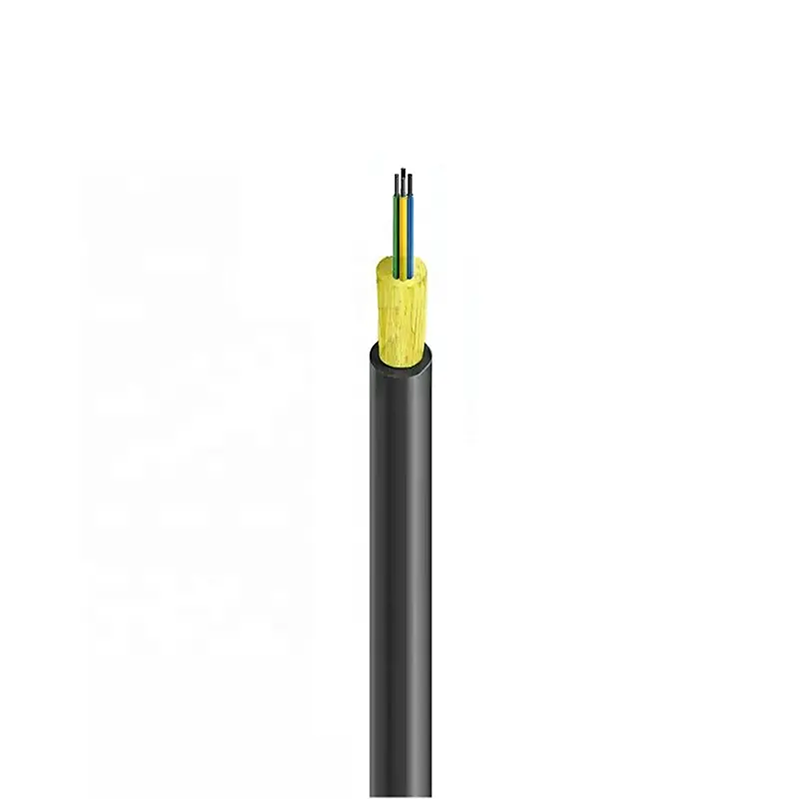

Mini self-supporting simplex optical fiber access cable use single φ900μm tight buffer fiber as optical unit,the tight
buffer fiber wrapped with a layer of aramid yarn as self-supporting strength member,and the cable is sheathed by TPU or LSZH(Low smoke, Zero halogen,Flame-retardant)material.
Characteristics
- Tight buffer fiber easy of stripping.
- Tight buffer fiber have excellent flame-retardant performance.
- Aramid yarn as self-supporting strength member make cable have excellent tensile strength.
- The outer sheath material have many advantages such as anti-corrosion,anti-water,anti-ultraviolet radiation,flame retardant and harmless to environment etc.
Applications
- Fiber to the home（FTTH）
Technical Parameters
| Cable Model | Cable Diameter(mm) | Cable Weight(kg/km) | TBF Diameter（mm） | Tensile Strength（N） | Crush Resistance（N/100mm） | Bending Radius（mm） |
| Static/Dynamic | ||||||
| GJYFJU | 3.0±0.1 | 8.7 | 0.9±0.05 | 1000 | 500 | 10D/20D |
| GJYFJH | 3.0±0.1 | 10 | 0.9±0.05 | 1000 | 500 | 10D/20D |
Optical Characteristics
| Category | Attenuation | Min bending Radius | |
| Condition | 1310/1550nm | ||
| Typical | Max | ||
| unit | dB/km | dB/km | mm |
| G657A2 | 0.36/0.22 | 0.4/0.3 | 7.5 |
| G657B3 | 0.36/0.22 | 0.4/0.3 | 5 |
Transport/Storage/Operating Temperature:-30℃~+60℃
Installation Temperature:-5°C~+50℃
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
